1
8
2
10
11
14
13
12
4
7
6
9
15
3

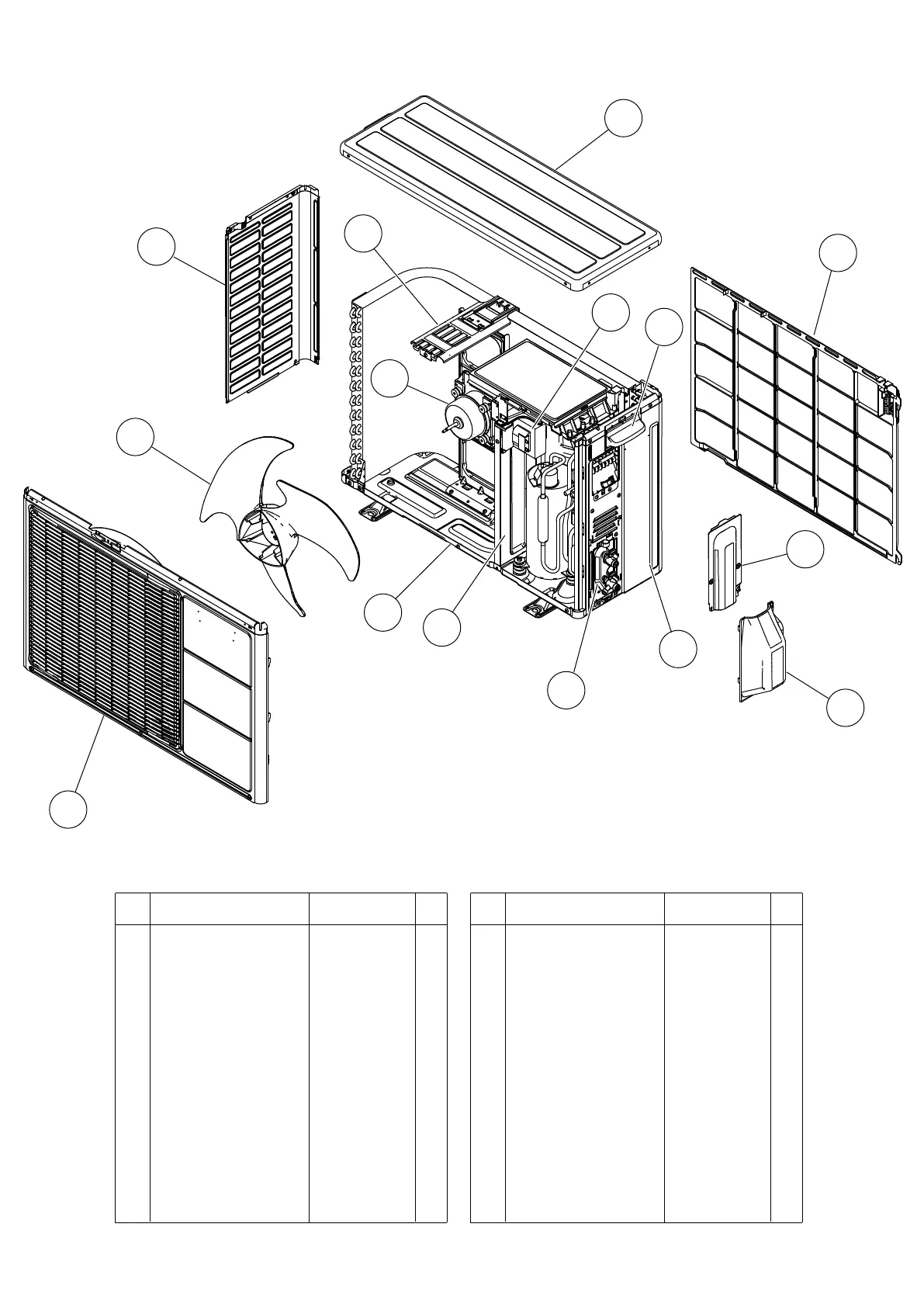

PARTS
OUTDOOR UNIT
2011.04.19 18
3 Top Panel Assy 9317761055
1 Front Panel Assy 9317760010
4 Protective Net 9313941055
2
5
Cabinet Left Assy 9318247008
Switch Cover A Assy 9317795005
7 Grip 9317588003
6 Switch Cover B 9317582001
9 Valve Bracket 9331649001
8 Cabinet Right Assy 9317759021
Ref. Description Part number
-- Emblem 9319151007
11 Reactor Assy (14) 9900611019
11 Reactor Assy (12) 9900583002
10 Separator Assy 9318340013
12 Motor Bracket Assy 9332289039
14 Propeller Fan 9313808013
15 Base Assy 9316885028
-- Drain Assy 9303029022
13 Fan Motor 9602864003
Ref. Description Part number
5
To Next Page
