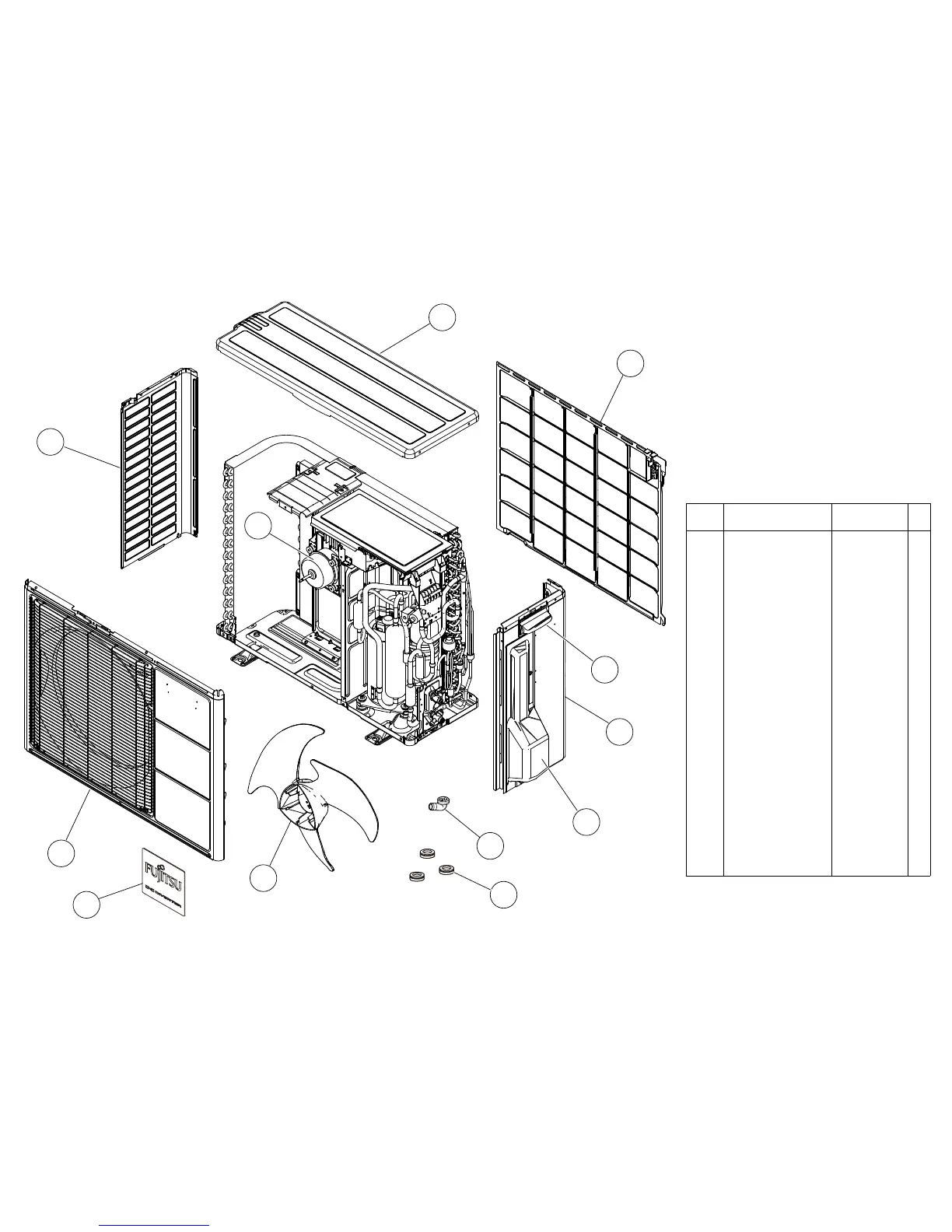

OUTDOOR UNIT
AOYG18LBCA
AOYG24LBCA
PARTS
2015.11.24 19
6 Front Panel Assy 9318463040
4 Top Panel Assy 9318464139
3 Protective Net 9331640015
7
10
Cabinet Left Assy 9318461015
5 Emblem 9319151007
1 Drain Assy 9303029022
Switch Cover Assy 9318499001
8 Cabinet Right Assy 9318462012
12 Propeller Fan 9313808013
2 Drain Cap
313166024302
9 Grip 9317588003
11 Fan Motor 9602724017
Ref. Description Part number
8
10
12
11
9
7
6
4
3
5
1
2
