Page #99 background imageLoading...
Page #99 background image
¢
Model: AOYG36KBTB
Cooling
0
10
20
30
40
50
60
70
80
63 125 250 500
1,000
2,000
4,000 8,000
Octave band sound pressure level, dB: (0 dB = 0.0002 μbar)
Octave band center frequency, Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
0
10
20
30
40
50
60
70
80
63 125 250 500
1,000
2,000
4,000 8,000
Octave band sound pressure level, dB: (0 dB = 0.0002 μbar)
Octave band center frequency, Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
¢
Model: AOYG45KBTB
Cooling
0
10
20
30
40
50
60
70
80
63 125 250 500
1,000
2,000
4,000 8,000
Octave band sound pressure level, dB: (0 dB = 0.0002 μbar)
Octave band center frequency, Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
0
10
20
30
40
50
60
70
80
63 125 250 500
1,000
2,000
4,000 8,000
Octave band sound pressure level, dB: (0 dB = 0.0002 μbar)
Octave band center frequency, Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
- 93 -

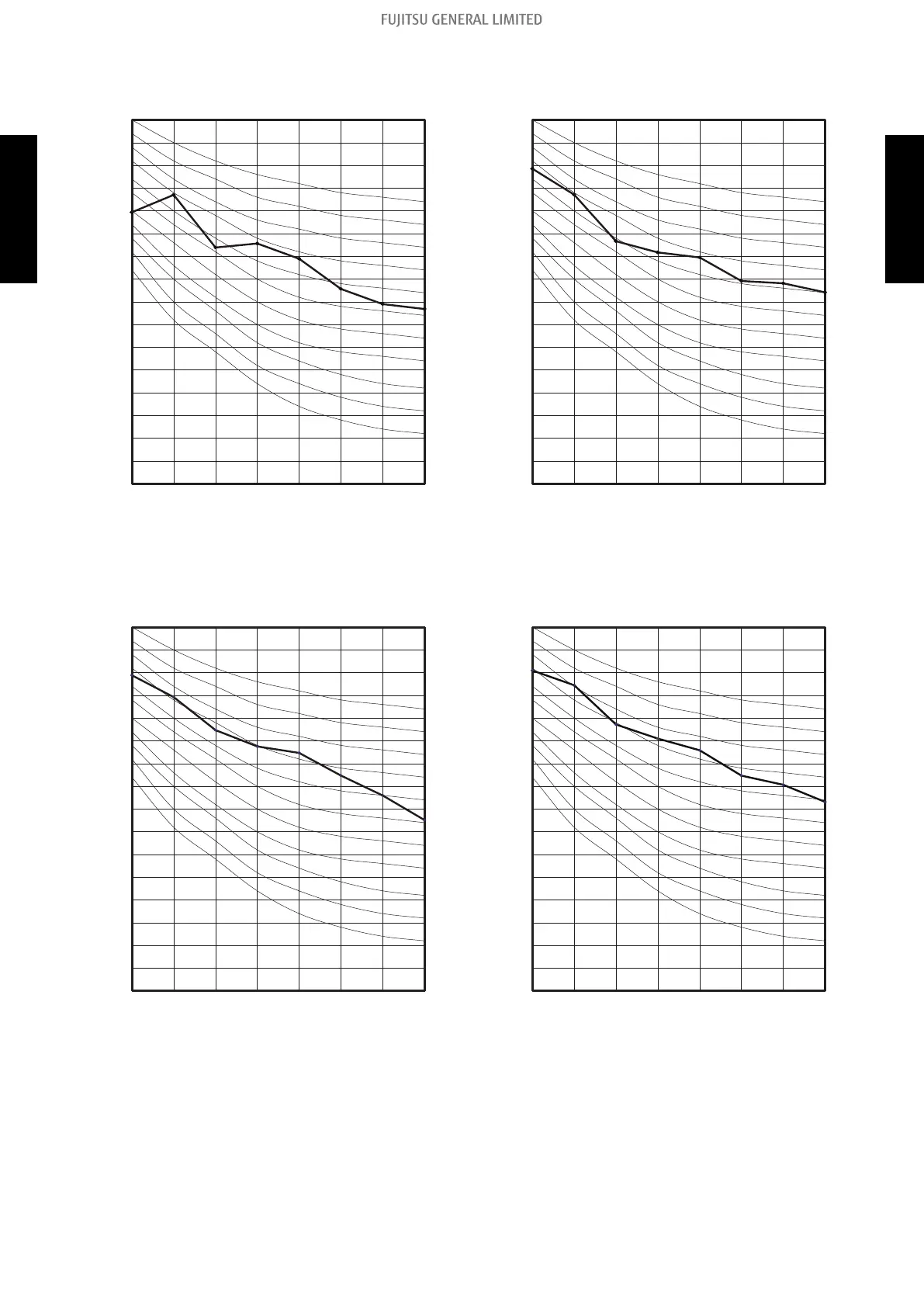

9-1. Noise level curve 9. Operation noise (sound pressure)
OUTDOOR UNIT
AOYG18-45KBTB
OUTDOOR UNIT
AOYG18-45KBTB
