Fujitsu AOYG24LAT3 Service Manual

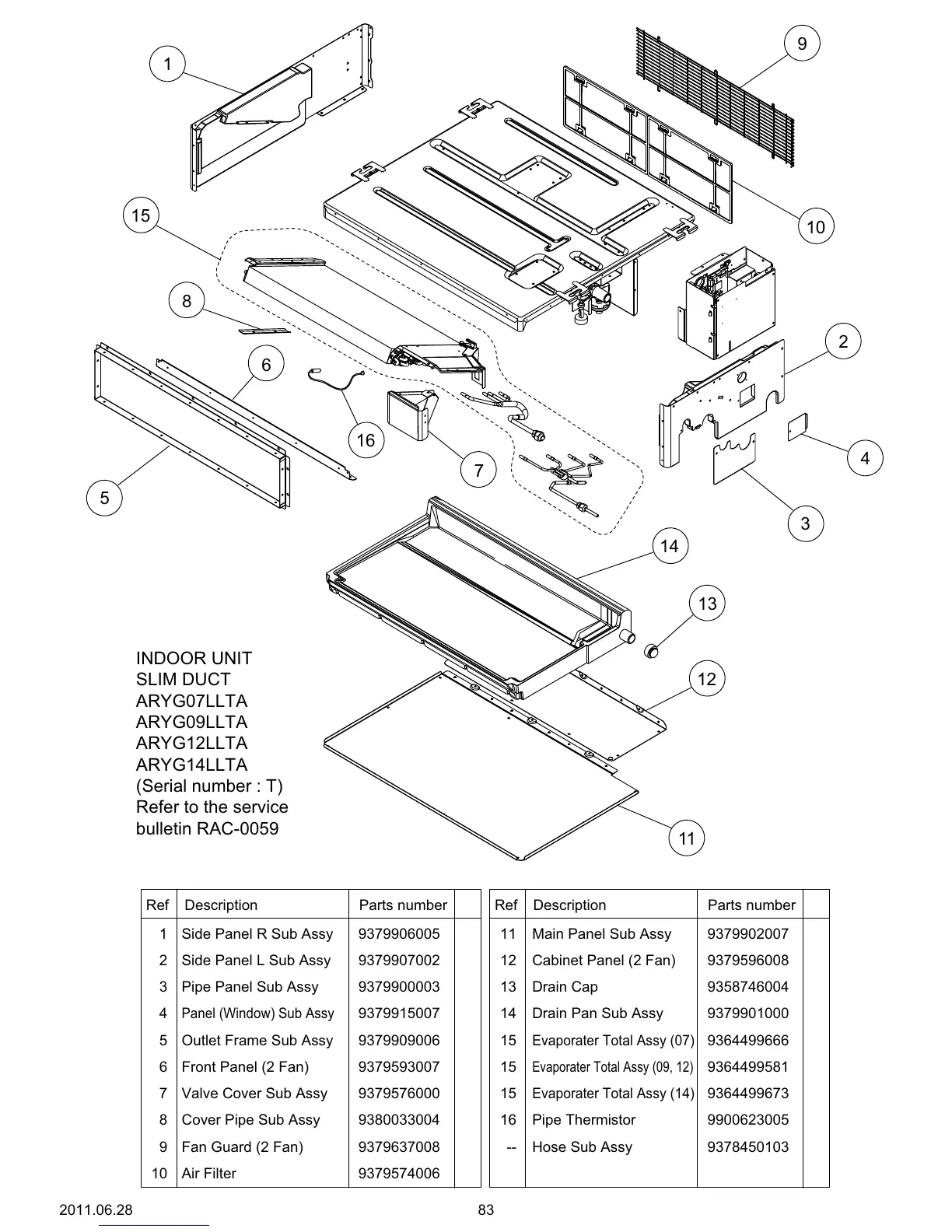

INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTA
ARYG14LLTA
(Serial number : T)
Refer to the service
bulletin RAC-0059
3 Pipe Panel Sub Assy
1 Side Panel R Sub Assy
2 Side Panel L Sub Assy
5 Outlet Frame Sub Assy
Parts numberDescriptionRef
Panel (Window) Sub Assy
3
12
11
13
14
16
7
2
9
10
4
1
832011.06.28
12 Cabinet Panel (2 Fan)
9 Fan Guard (2 Fan)
11 Main Panel Sub Assy
13 Drain Cap
14 Drain Pan Sub Assy
9379906005
9379900003
9379907002
9379909006
9379915007
9379596008
9379637008
9379902007
9358746004
93799010004
Parts numberDescriptionRef
15 Evaporater Total Assy (07)
16 Pipe Thermistor
9364499666
15
Evaporater Total Assy (14) 9364499673
15
Evaporater Total Assy (09, 12) 9364499581
9900623005
10 Air Filter 9379574006
7 Valve Cover Sub Assy 9379576000
6 Front Panel (2 Fan) 9379593007
8 Cover Pipe Sub Assy 9380033004
-- Hose Sub Assy 9378450103
5
6
8
15
