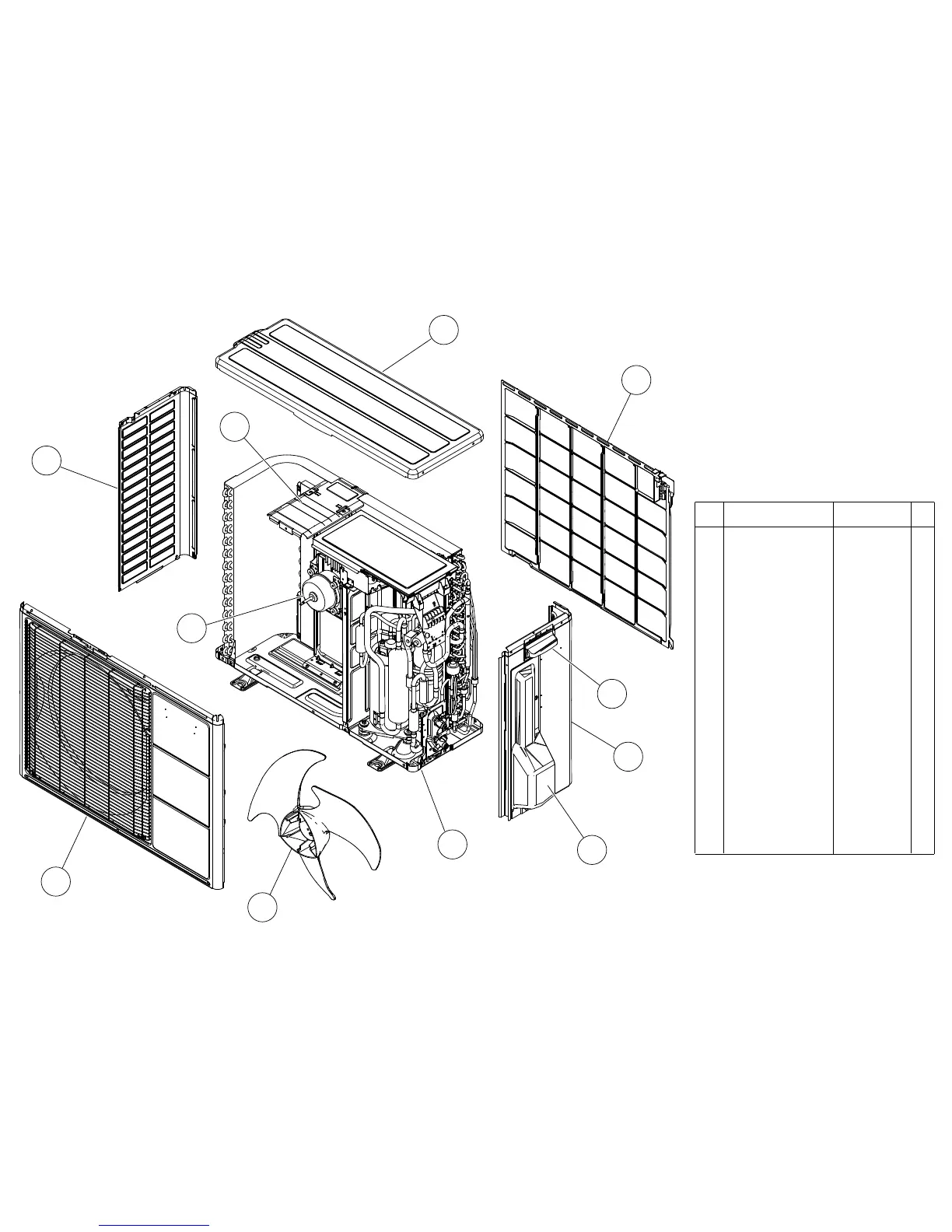

OUTDOOR UNIT
PARTS
2012.11.29 15
3 Front Panel Assy 9318463040
2 Top Panel Assy 9318464139
1 Protective Net 9331640015
4
7
Cabinet Left Assy 9318461015
-- Emblem 9319151007
-- Drain Assy 9303029022
Switch Cover Assy 9318499001
5 Cabinet Right Assy 9318462012
8 Motor Bracket Assy 9319124001
10 Propeller Fan 9313808013
11 Base Assy 9316885066
6 Grip 9317588003
9 Fan Motor 9602724017
Ref. Description Part number
5
7
10
8
9
6
4
3
2
1
11
