Fujitsu AOYG45LAT8 Service Manual

INDOOR UNIT
COMPACT CASSETTE
AUYG07, 09, 12, 14, 18LVLA
1062010.10.29
DECORATION PANEL
UTG-UFYD-W

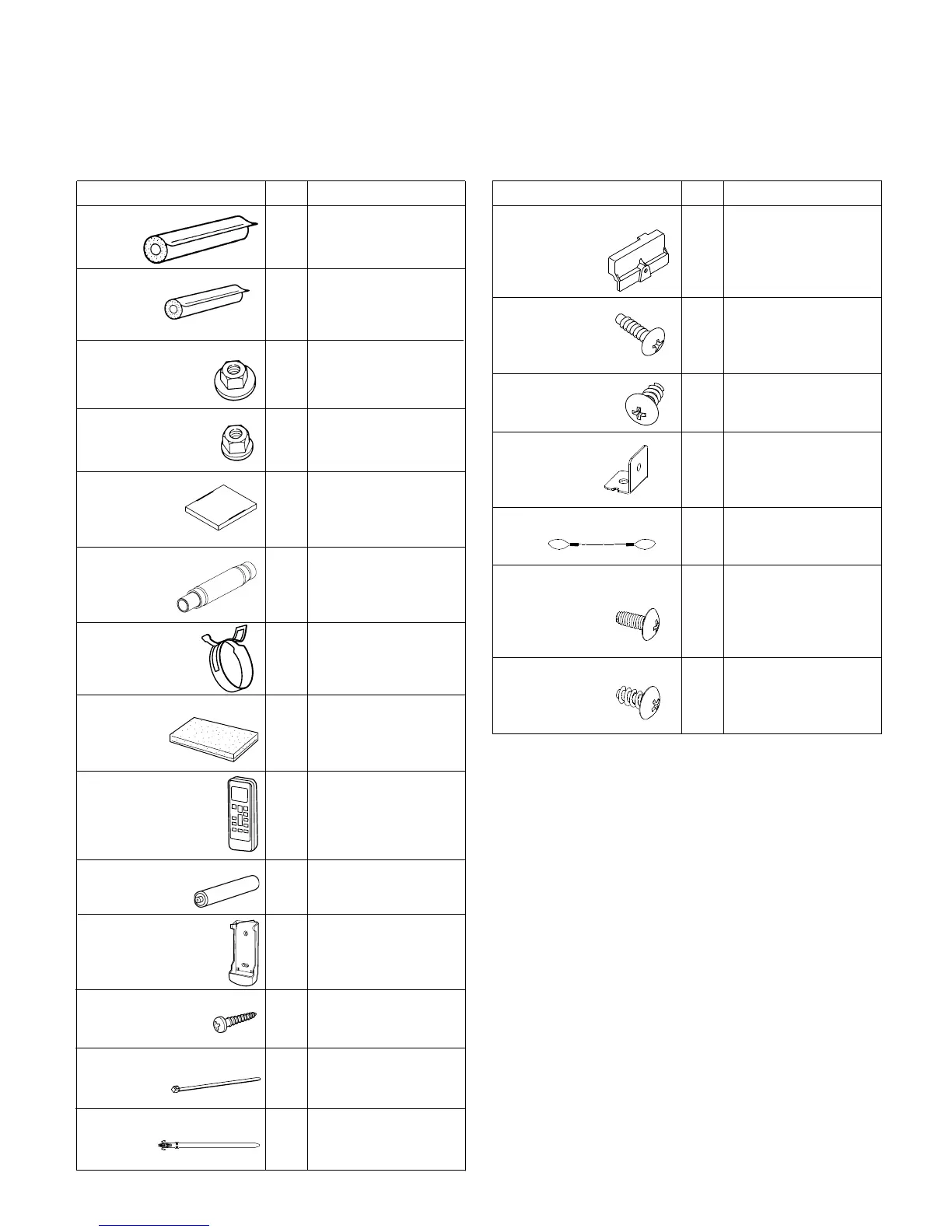

Name and Shape Q’ty Application
Connector cover
1
For covering connector
Tapping Screw
(M5 × 12 mm)
4
For mounting decora-
tion panel
Tapping Screw
(M4 × 12 mm)
1
For mounting connec-
tor cover
L angle
2
For mounting the Hook
Wire to the Decoration
panel
Hook wire
2
For suspending the
Decoration panel
Screw [pitch small]
(M4 × 10 mm)
2
For mounting the Hook
Wire (for metals)
Screw [pitch large]
(M4 × 10 mm)
4
For mounting the
L angle and Hook wire
(for resins)
Name and Shape Q’ty Application
Special nut A (Large ß ange)
4
For installing indoor unit
Special nut B (Small ß ange)
4
For installing indoor unit
Template
(Carton top)
1
For cealing openings cutting
Also used as packing
Drain hose
1
For installing drain pipe
Hose Band
1
For installing drain hose
Drain hose insulation
1
For installing drain pipe
Remote controller
1
For air conditioner operation
Battery
2
For remote controller unit
Remote controller holder
1
For installing the remote
controller
Tapping screw
(M3 × 12mm)
2
For mounting the remote
controller
holder
Binder
2
For electrical wiring
Wire clamper
1
For electrical wiring
Coupler heat
insulation
(Small)
1
For indoor side pipe
joint (Liquid pipe)
Coupler heat
insulation
(Large)
1
For indoor side pipe
joint (Gas pipe)
