5V
D205 EMPG3863X GREEN
D206 EMAA3863X ORANGE
D207 EMPG3863X GREEN
R201 330
<1/4W>
R202 330
<1/4W>
R203 330
<1/4W>
PHA201
PIC-37143TH5
JM201
VCC
OUT
GND
2
1
3
C201
0.1
<F>
C202
10/
16V
+
SW201
EVQPAG04K
1
3
2
4
1
2
3
4
5
6
7
8
CN201
08 / 08 JC25 / XMR
BROWN
RED
ORANGE
YELLOW
WHITE
BLUE
PURPLE
GRAY
( OPERATE )
( TIMER )
( LOUVER )
( LOUVER )
( 5V )
( REMOTE SIGNAL )
( GND )
( MANUAL AUTO SWITCH )

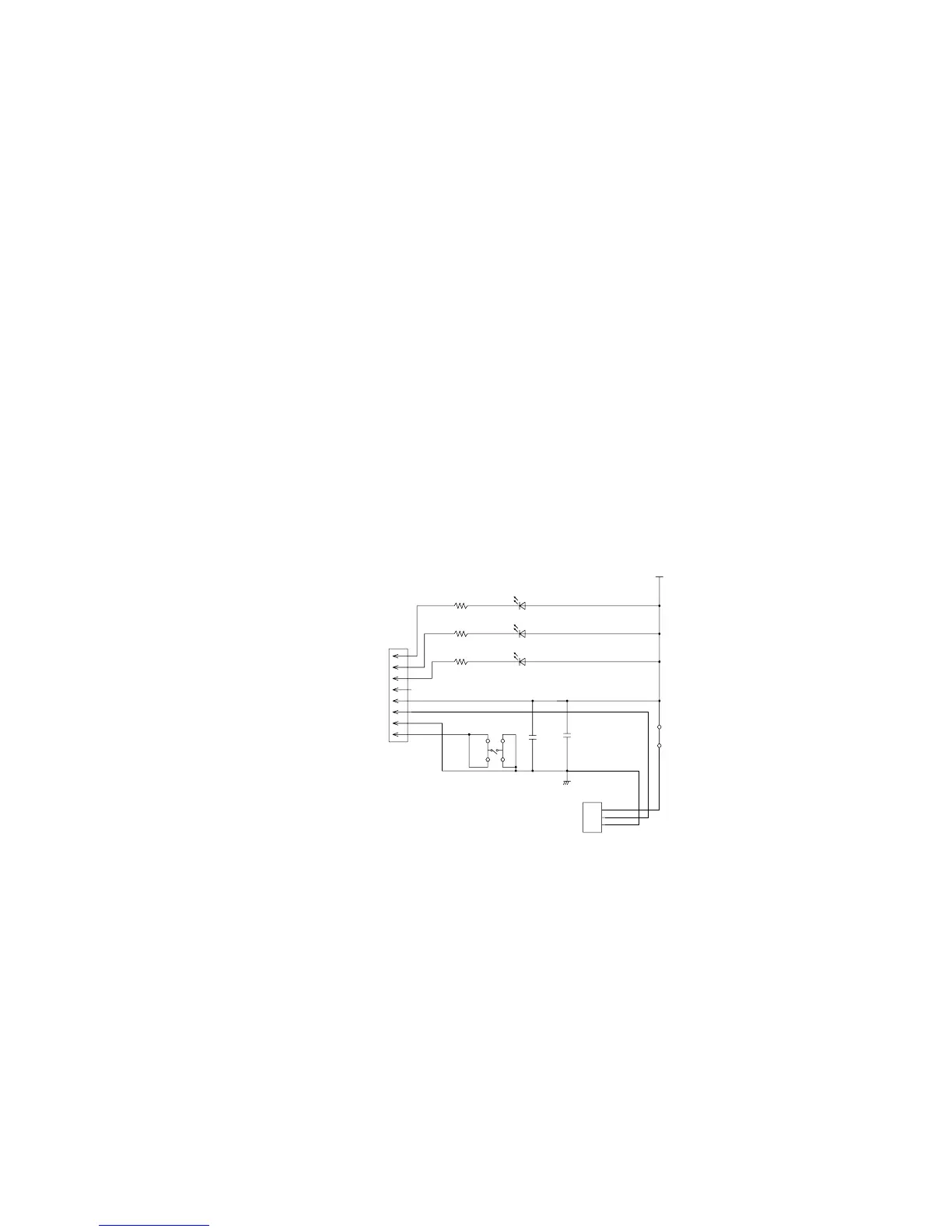

INDICATOR PCB ASSEMBLY ( OPTION )
K04EI-1000HSE-D0
INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTA
ARYG14LLTA
ARYG18LLTA
2010.09.02 56
