Fujitsu ARG45ALC3 User Manual

- 6 -
2004.01.21

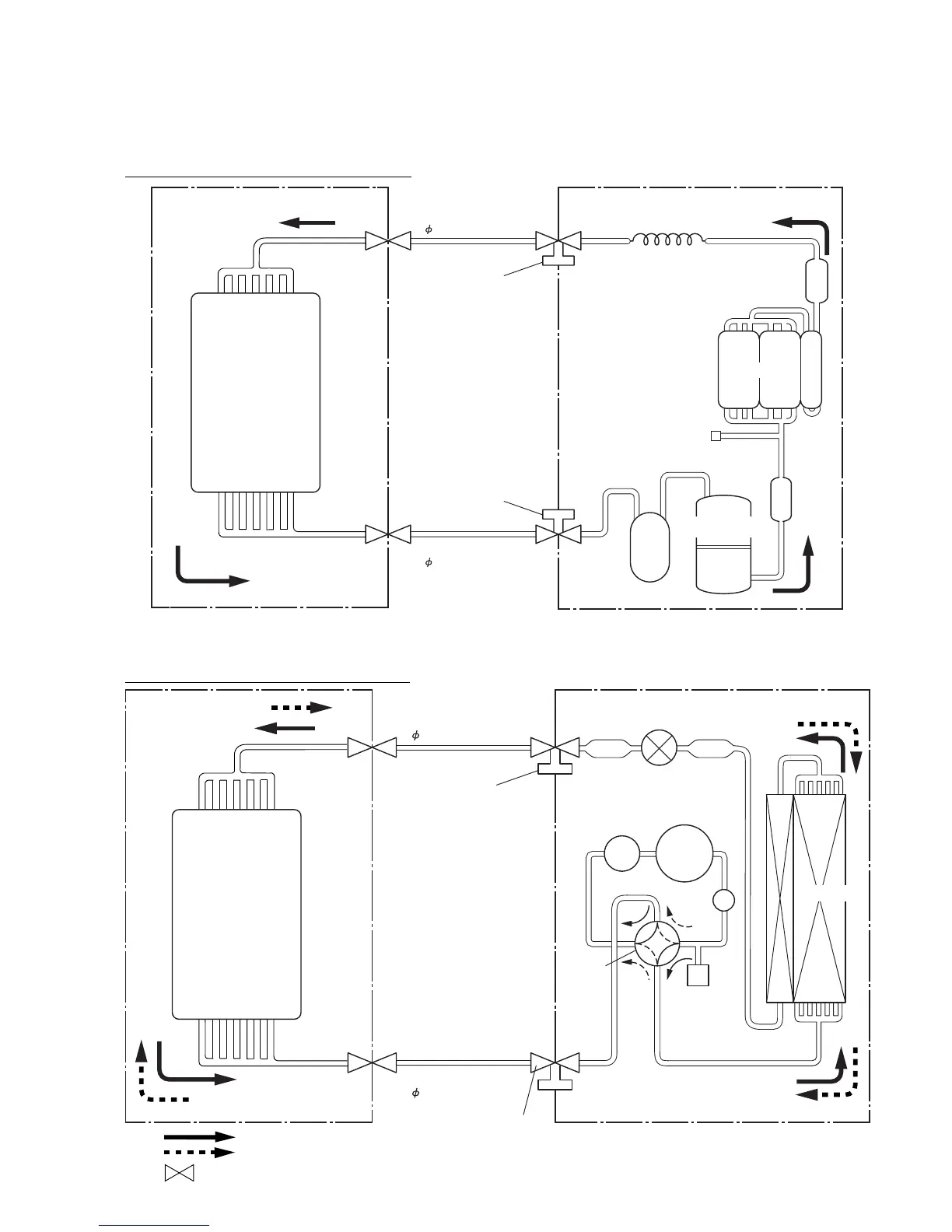

REFRIGERANT SYSTEM DIAGRAM
Condenser
Dryer
Capillary tube
Thermistor
(Discharge gas)
Accumulator
Charging valve
Refrigerant pipe
19.05mm (3/4")
Compressor
Refrigerant pipe
9.52mm (3/8")
Charging valve
INDOOR UNIT OUTDOOR UNIT
Muffler
Evaporator
Distributor
DryerStrainer
Expansion valve
Compressor
Muffler
4-Way
valve
High
pressure
switch
Accumulator
OUTDOOR UNIT
Condenser
Charging valve
Refrigerant pipe
19.05mm (3/4")
Refrigerant pipe
9.52mm (3/8")
Charging valve
INDOOR UNIT
Cooling
Heating
: Flare coupling
Evaporator
Distributor
Models : ARG45RLC3 / AOG45RPA3L
ARY45RLC3 / AOY45RPA3L
ART45RLC3 / AOT45RPA3L
Models : ARG45ALC3 / AOG45APA3L
ARY45ALC3 / AOY45APA3L
