Fujitsu ARTG36LHTB User Manual

C1
0.1
<B>
D
D
W5
I C1
PS2561L-1-V
I C2
PS2561L-1-V
I C3
PS2561L-1-V
C2
0.01
<B>
C3
0.01
<B>
C4
0.01
<B>
C5
0.01
<B>
C6
0.01
<B>
C7
0.01
<B>
R5, R4, R3, R2
390 <1/4W>
x 4
R10, R9, R8, R7
390 <1/4W>
x 4
R15, R14, R13, R12
390 <1/4W>
x 4
R11
4.7k
<1/4W>
R6
4.7k
<1/4W>
R1
4.7k
<1/4W>
D3
PTZ24B
D2
PTZ24B
D1
PTZ24B
TM1
HP-T5338-1-4P
CN1
B6 ( 7-3 ) B-XN I RK-B-2
1
2
3
4
5
6
1
2
3
4
2
1
3
4
2
1
3
4
2
1
3
4
C8
0.033
<YE>

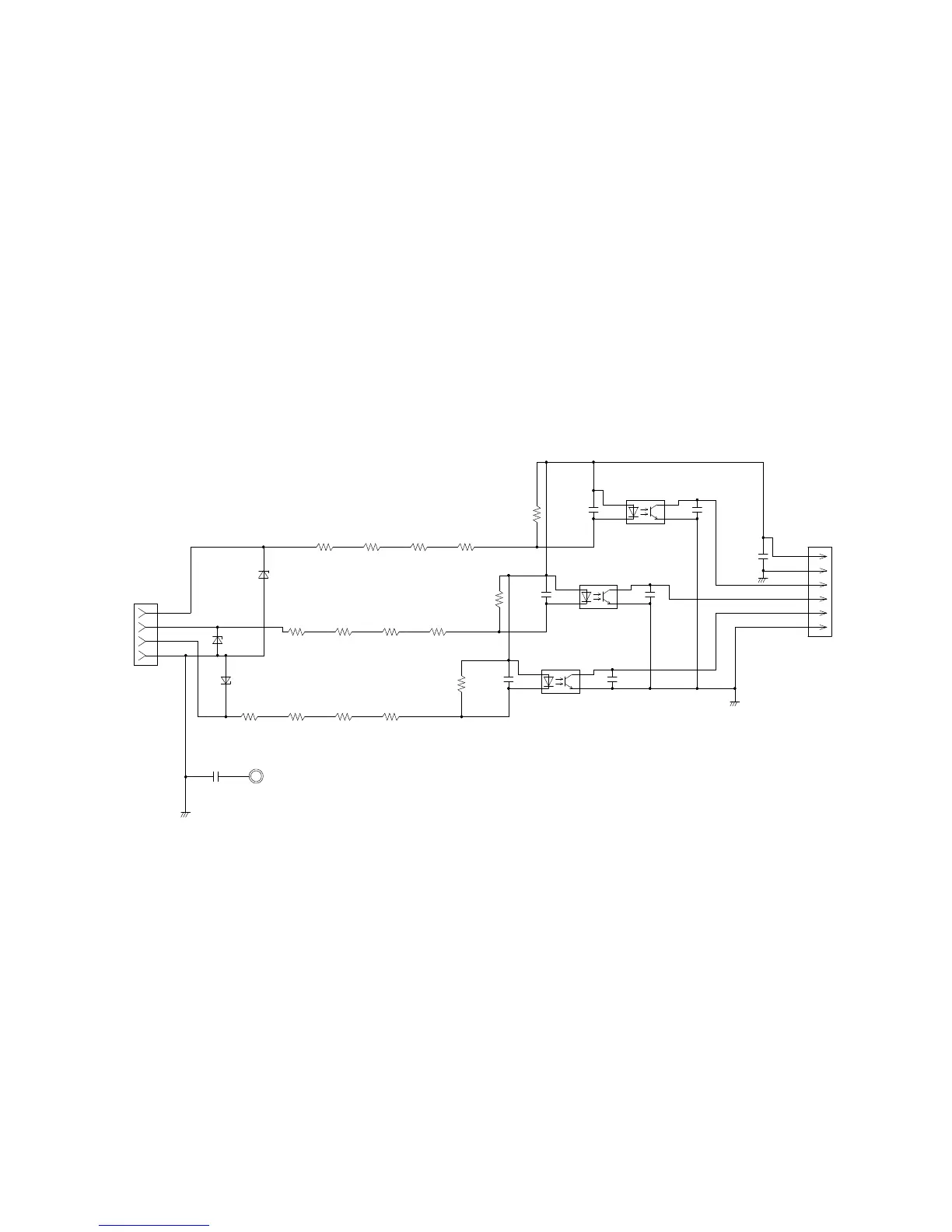

TO SMART METER
TO MAIN PCB
DEMAND CONTROL OPTION PCB
K12GV-1201HUE-CA0
DEMAND OPTION PCB KIT
UTY-XCZZ4
2012.07.25 12
