Fujitsu ARTG36LHTB - Page 76

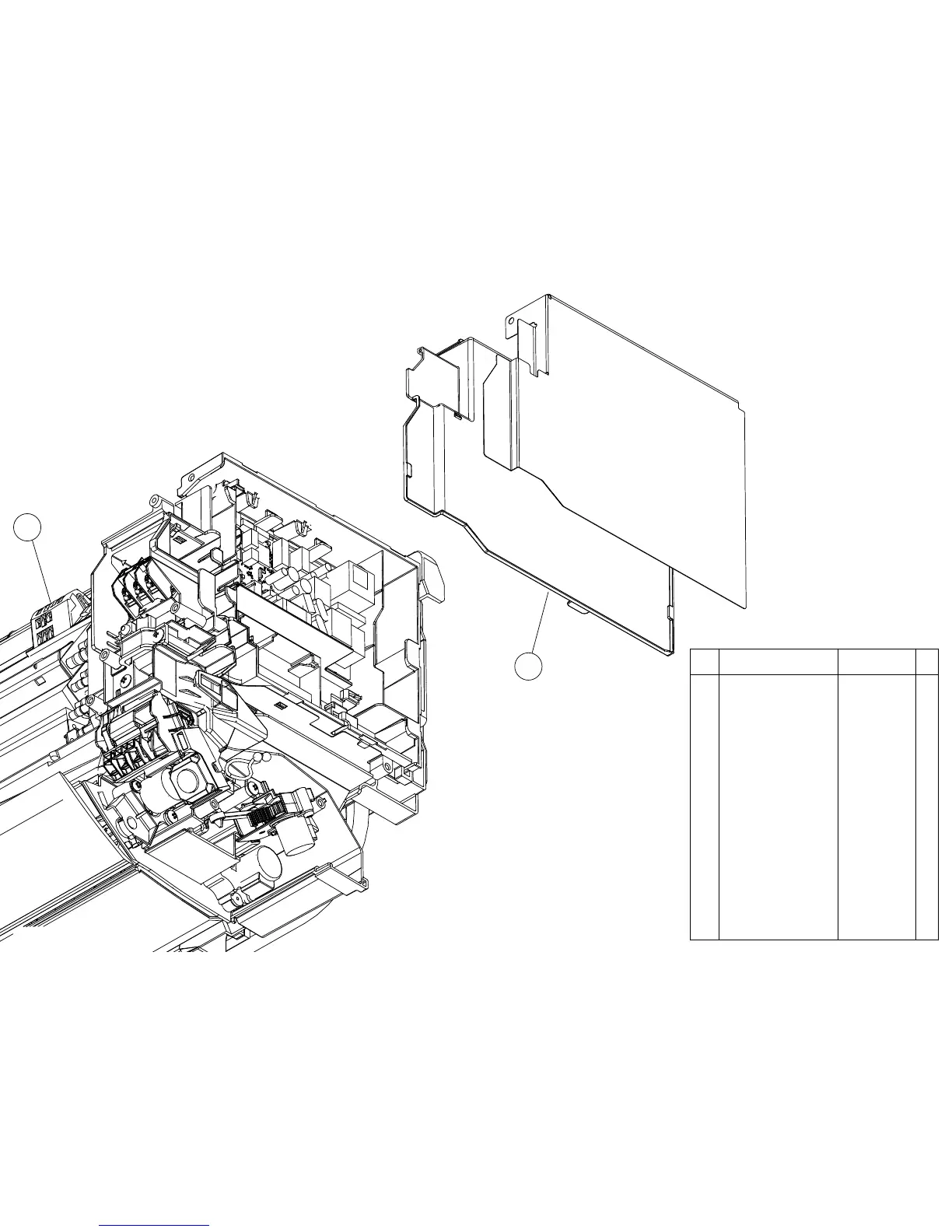

INDOOR UNIT
Control box
152013.09.02
Terminal 9900720025
Main PCB (22KMCA) 9709622049
14
Earth terminal
Control Box12
Cover shield
11 9318757002Control Cover
9380996002
Box shield assy
13
Main PCB (24KMCA) 970962205613
Main PCB (18KMCA) 970962203213
16 Room Thermistor Holder 9379930000
Ref. Description Part number
15
-- Thermistor Assy 9900627003
Display Assy 9709642023
13
12
11
16
15
14
