Fujitsu ARTG60LHTA

SERVICE PARTS INFORMATION 2
Inverter Compressor
02-40

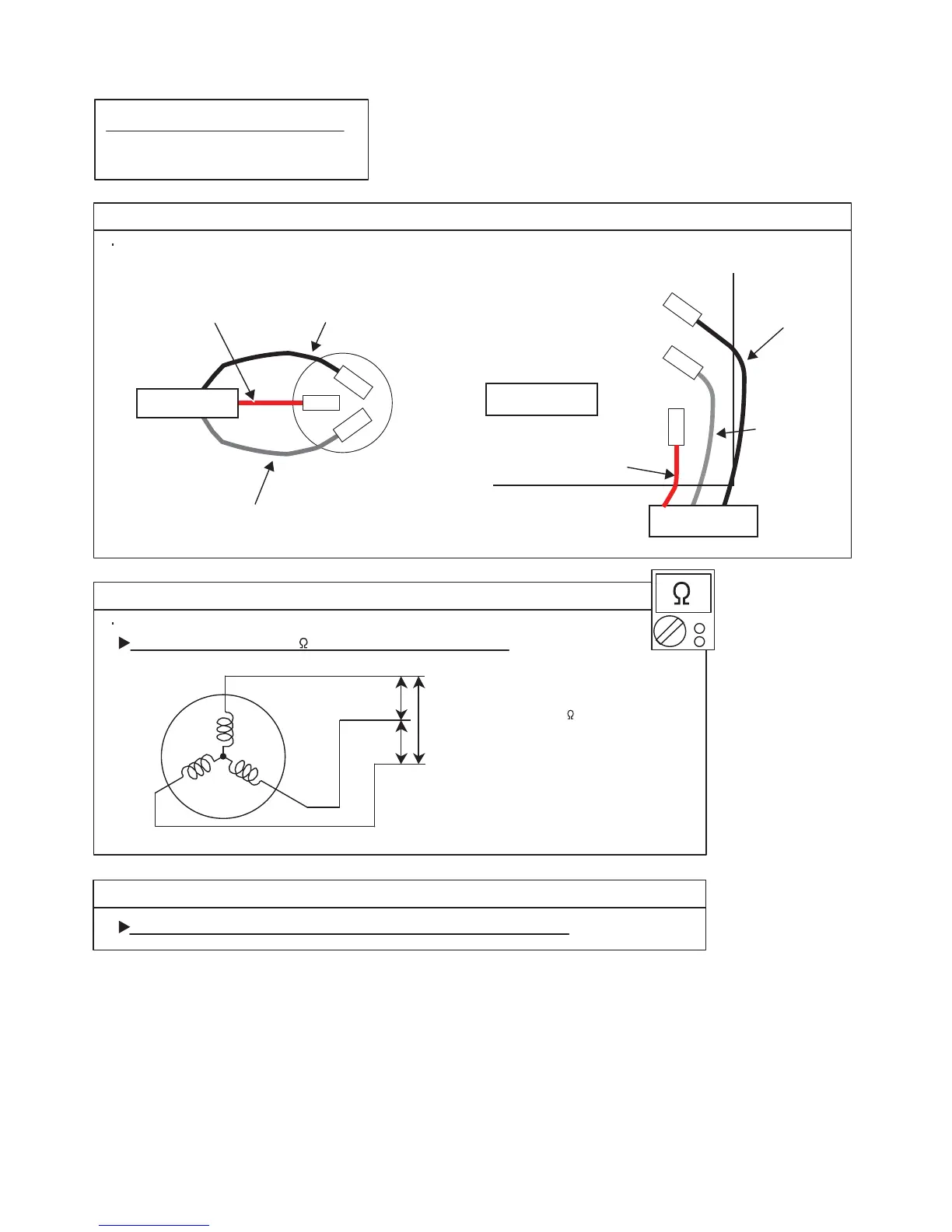

Check Point 1 : Check connection
Check Point 2 : Check winding resistance
Check Point 3 : Replace Inverter PCB
U(R)
V(S)
W(C)
Check terminal connection of Compressor
(Loose or incorrect wiring)
Check winding resistance of each terminal
If the resistance value is 0 or infinite, replace Compressor.
If Check Point 1, 2 do not improve the symptom, replace Inverter PCB.
Resistance value : 0.79
(at 20°C)
U(R)
(RED)
V(S)
(WHITE)
W(C)
(BLACK)
Inverter PCB
Check connection of Inverter PCB
(Loose or incorrect wiring)
TM806
(W)
TM805
(V)
TM804
(U)
RED
WHITE
BLACK
Compressor
Inverter PCB
