3. DISASSEMBLY PROCESS
WARNING
Before servicing the unit, turn the power supply switch OFF,
Then, do not touch electric parts for 10 minutes due to the risk of electric shock.

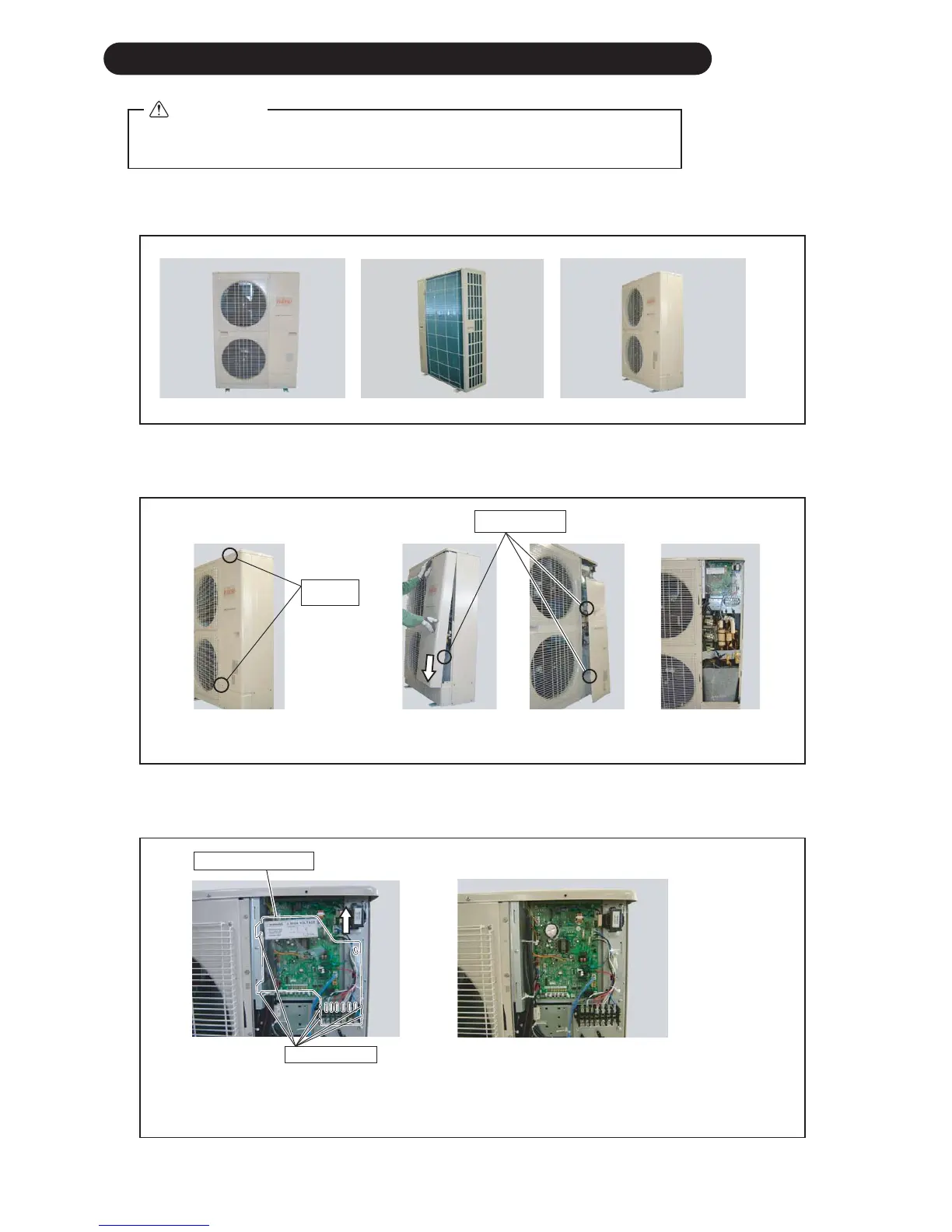

1. Appearance
2. SERVICE PANEL removal
3. INSULATION SHEET removal
screw
(serrated)
Hook (3 places)
Remove the mounting screws.
Remove the Hook. (6 places)
Remove the INSULATION SHEET
by sliding upward.
Remove the SERVICE PANEL
by sliding downward.
INSULATION SHEET
Hook (6 places)
