Fujitsu ARTG65LHTA Service Manual

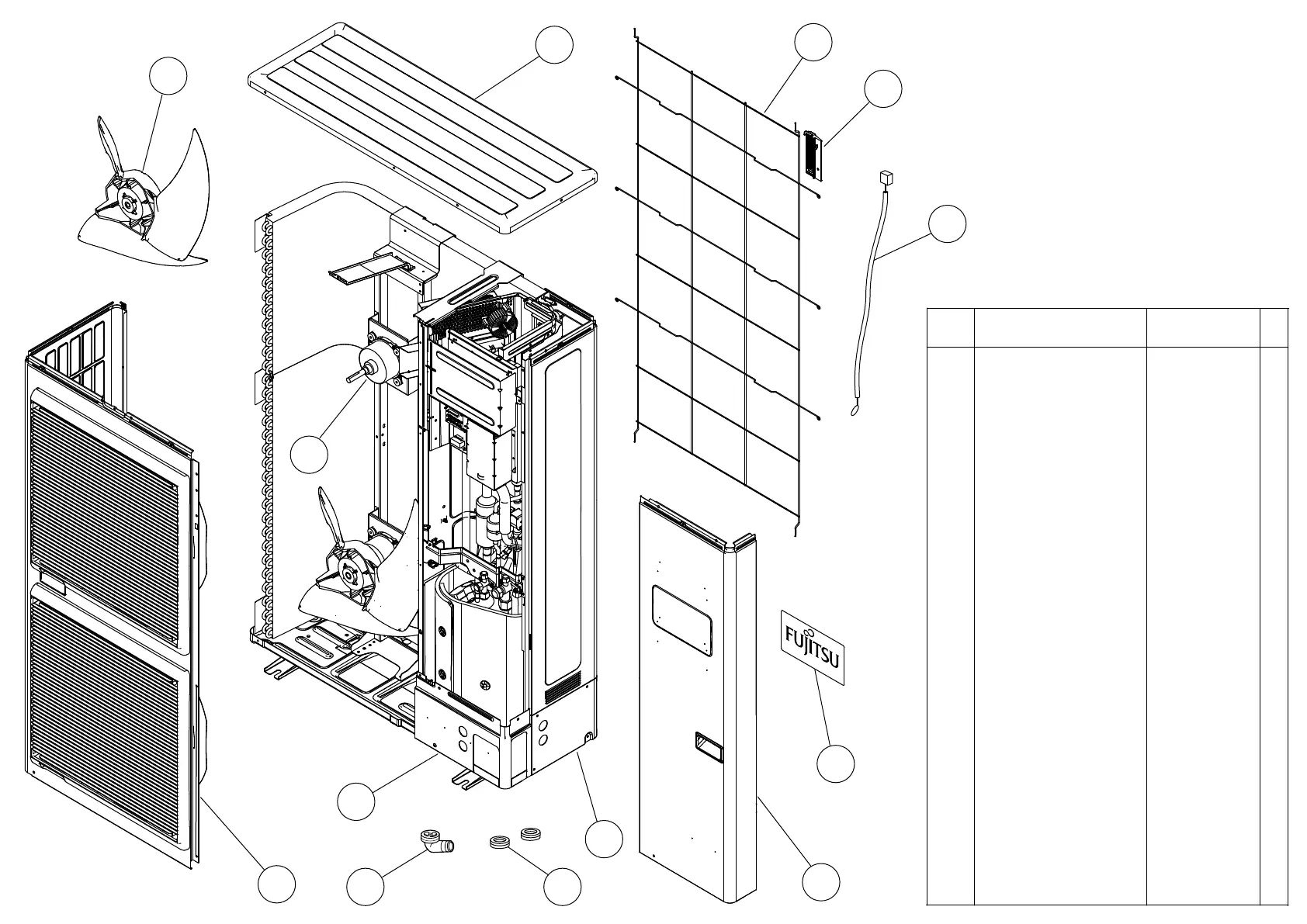

PARTS
OUTDOOR UNIT
AOTG60LBTA
2015.08.17 13
5 Top Panel Sub Assy 9374417056
10 Right Panel Sub Assy 9374416264
3 Protective Net 9375381042
4 Thermo Holder 9375211011
8 Emblem Rear 9351355005
9 Pipe Cover Front 9378861015
7
Sevice Panel Sub Assy 9374415090
6 Front Panel Sub Assy 9374414154
Ref. Description Parts number
2 Drain Cap
313166024302
1 Drain Assy 9303029015
13
11
Outdoor Thermistor
Motor DC Brushless
9900210069
12 Propeller Fan Assy 9366378020
9602843039
5
7
6
12
8
11
3
4
10
2
9
1
13

Fujitsu ARTG65LHTA Specifications

General

Brand	Fujitsu
Model	ARTG65LHTA
Category	Air Conditioner
Language	English
