01 - 16
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE

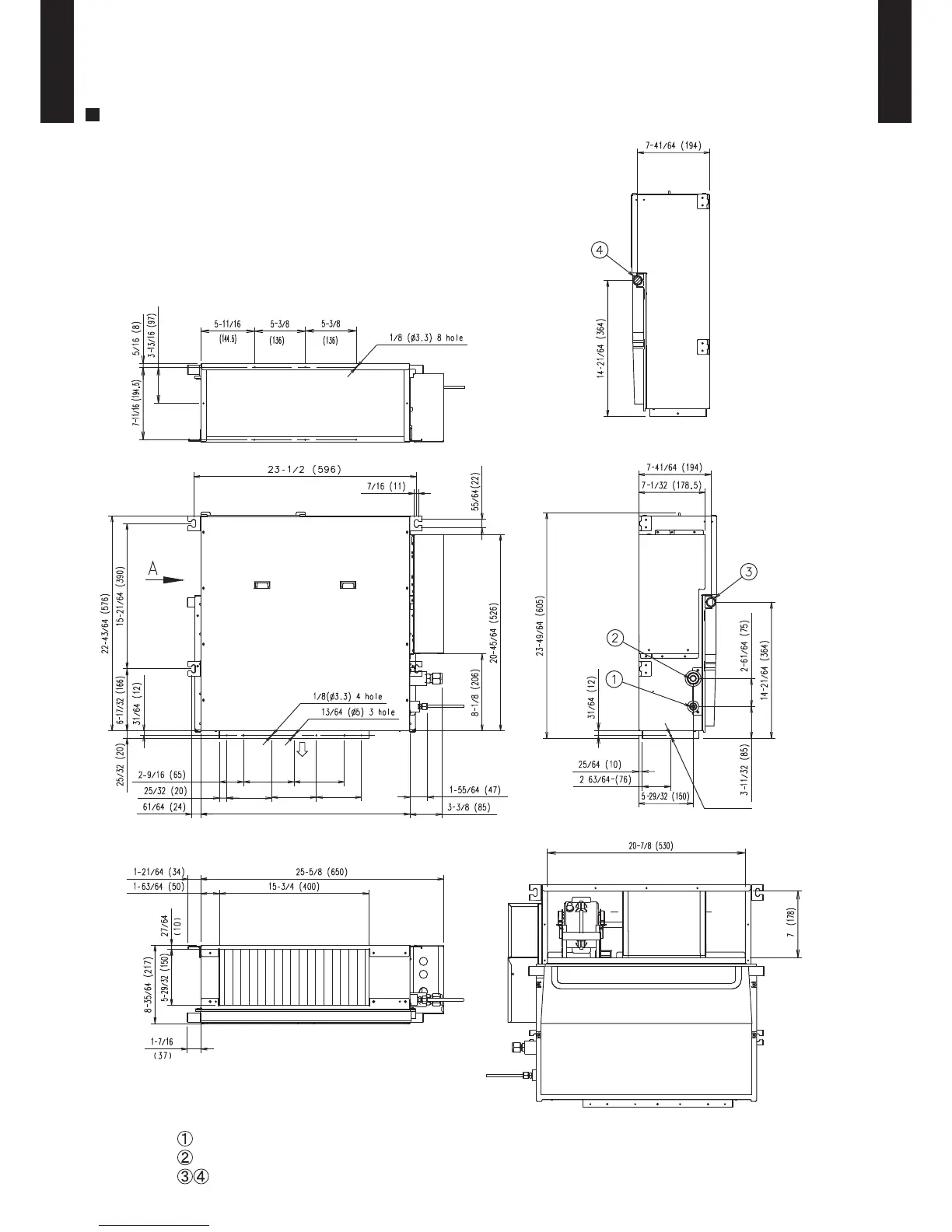

4-2. CONCEALED CEILING TYPE
MODEL : ARU9R
Refrigerant pipe flare connection (Liquid)
Refrigerant pipe flare connection (Gas)
Drain pipe connection
Bottom view
Front view
Top view
Side view (R)
Rear view
View A
Bolt Pitch
Bolt Pitch
Outlet
5-5/16 (135) 5-5/16 (135)
22-5/64 (560)
4-23/32 (120) 4-23/32 (120) 4-23/32 (120)
13/64
(ø5 hole)
[Unit : Inch (mm)]
