72011.03.17
Unit : inch (mm)
差し替え前
(網が違う)

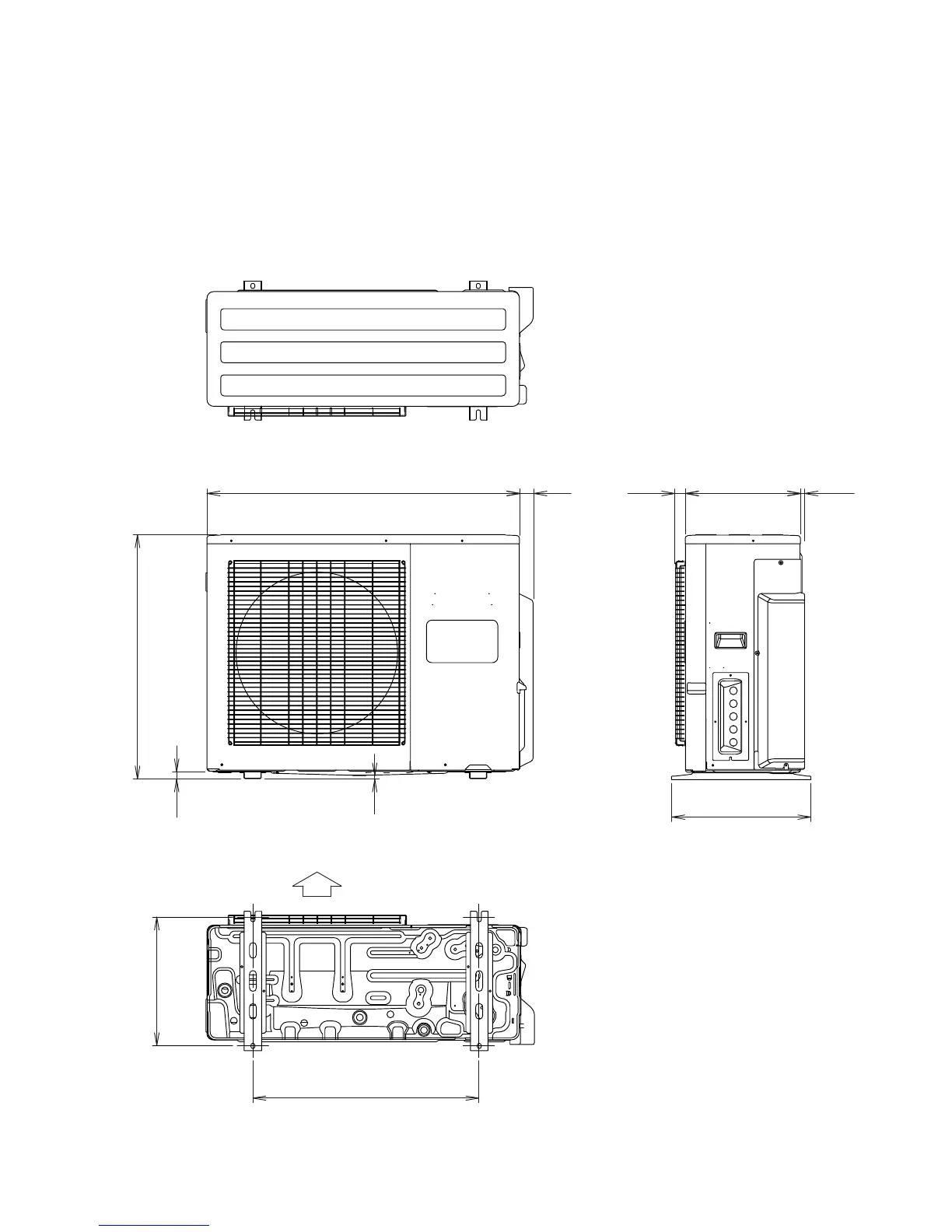

OUTDOOR UNIT
DIMENSIONS
Air Flow
Air Flow
1-9/16
(40)
1-9/16
(40)
35-7/16 (900)
35-7/16 (900)
27-19/32 (700)
27-19/32 (700)
13/16
(21)
13/16
(21)
11/32
(9)
11/32
(9)
15-3/4 (400)
15-3/4 (400)
13 (330)
13 (330)
1-3/16
(30)
1-3/16
(30)
15/32
(12)
15/32
(12)
14-9/16 (370)
14-9/16 (370)
25-19/32 (650)
25-19/32 (650)
