5. Wiring diagrams

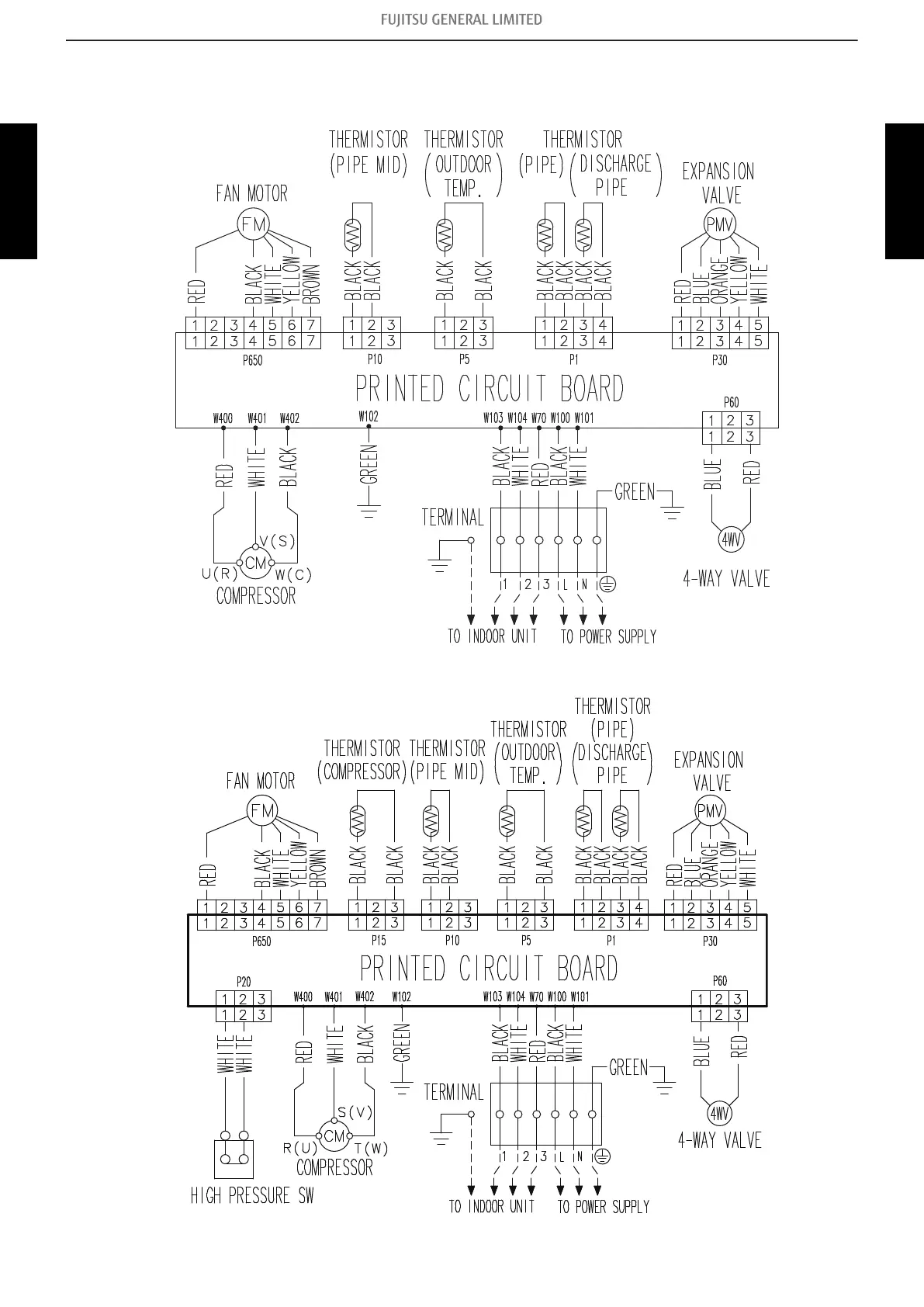

5-1. Models: AOYG12KBTB, AOYG14KBTB, and AOYG18KBTB
- 57 -
5-1. Models: AOYG12KBTB, AOYG14KBTB, and AOYG18KBTB
5. Wiring diagrams
OUTDOOR UNIT
AOYG12-22KBTB
OUTDOOR UNIT
AOYG12-22KBTB
