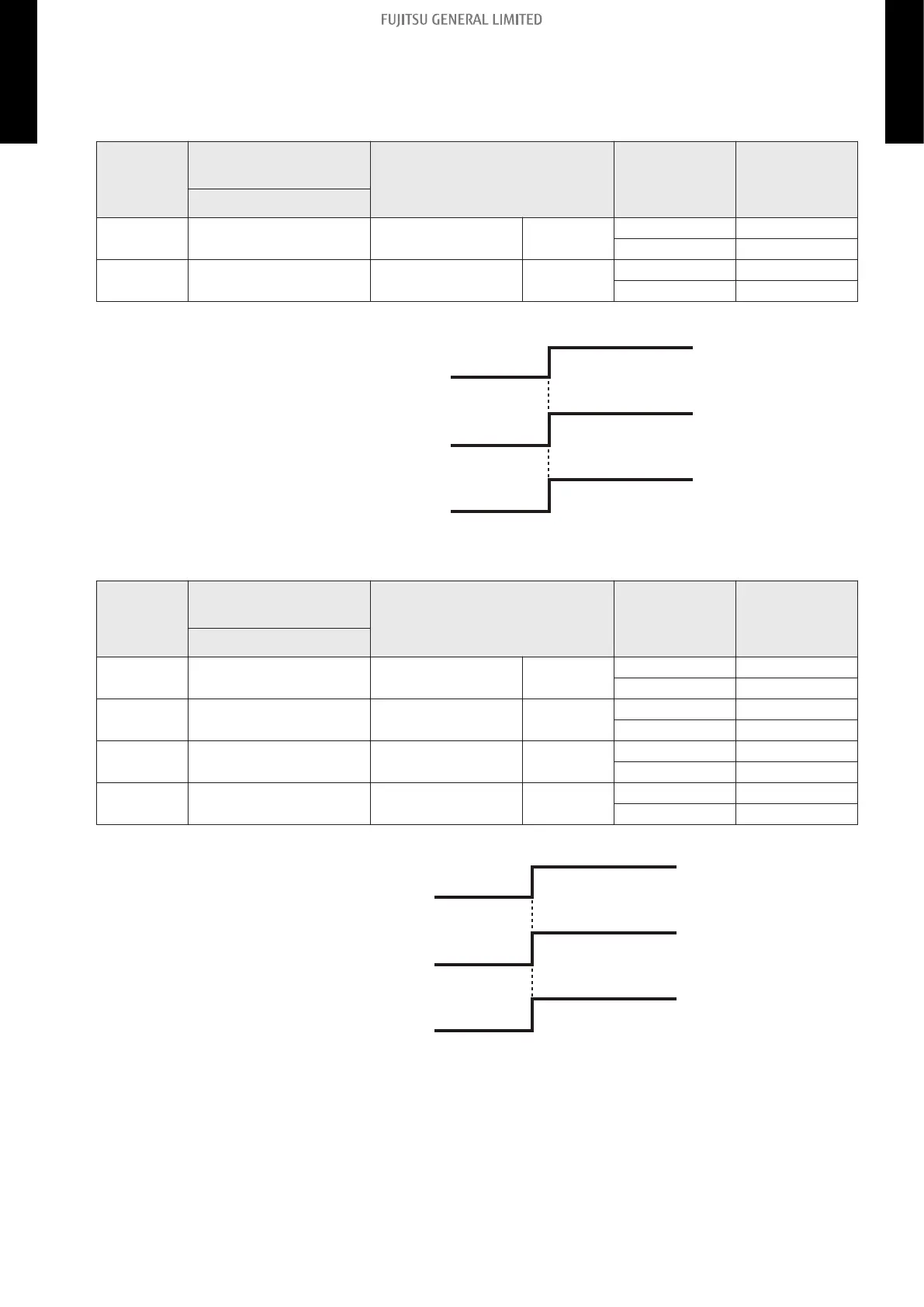

Fujitsu ARXG12KLLAP Design & Technical Manual

¢
Details of control output function

Operation status
Function
setting
External Input and
Output PCB
External output Output signal Status
Rotary switch
60-00 — Output of indoor unit CN47
Off → On Operation
On → Off Stop
— 1, B, C, D
External Input and
Output PCB
Ex OUT 1
Off → On Operation
On → Off Stop
The output is low when the unit is stopped.
CN47
On
Off
Ex OUT 1
Indoor unit operation
On
Off
On
Off

Error status
Function
setting
External Input and
Output PCB
External output Output signal Status
Rotary switch
60-09 — Output of indoor unit CN47
Off → On Error
On → Off Normal
— 2
External Input and
Output PCB
Ex OUT 1
Off → On Error
On → Off Normal
— 1, C
External Input and
Output PCB
Ex OUT 2
Off → On Error
On → Off Normal
— D
External Input and
Output PCB
Ex OUT 3
Off → On Error
On → Off Normal
The output is on when an error is generated for the indoor unit.
Error
Normal
On
Off
CN47
On
Off
Ex OUT 1, 2, 3
Indoor unit
