Fujitsu ARXG12KLLAP Design & Technical Manual

13. Function settings
13-1. Setting methods
WARNING
Never touch electrical components such as the terminal blocks or reactor except the switch on
the display board. It may cause a serious accident such as electric shock.
CAUTION
• Once refrigerant charging is completed, be sure to open the valve prior to performing the
local settings. Otherwise, the compressor may fail.
• Discharge any static electricity from your body before touching the push switches. Never
touch any terminal or pattern of any parts on the control board.

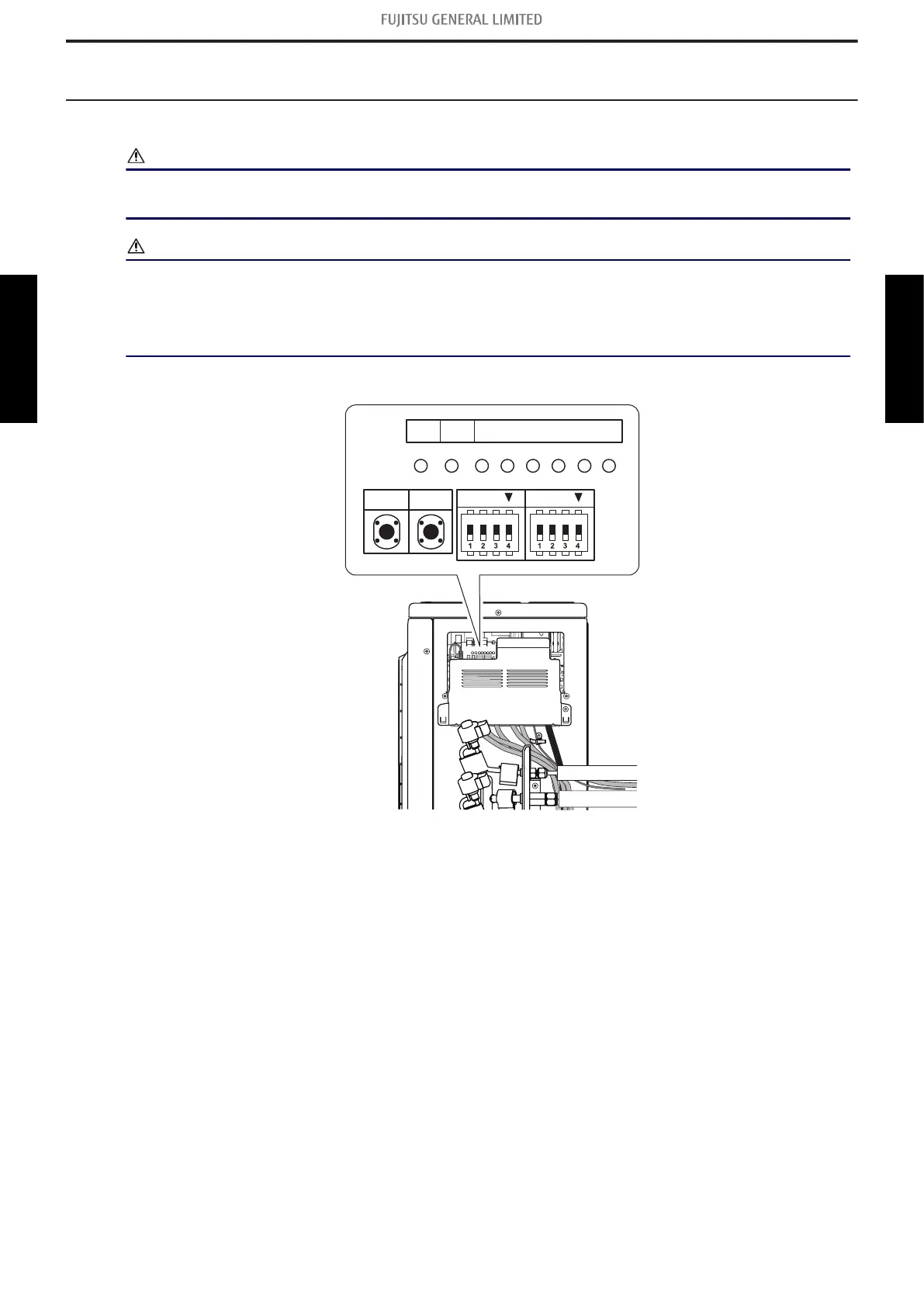

The positions of the switches on the outdoor unit control board are shown in the figure below.
MONITOR
POWER
ERROR
/MODE
E F
(
GRN
) (
RED
)
A B C D
CHECK
SET 1
TEST RUN /
PUMP DOWN
SET 2
ON ON
- 541 -
13-1. Setting methods
13. Function settings
OUTDOOR UNIT AOYG36KBTA5 OUTDOOR UNIT AOYG36KBTA5
