Fujitsu ARXG22KMLB - 5. Wiring diagram

To Next Page

To Previous Page

5. Wiring diagram

5-1. Model: AOYG30KBTA4

- 311 -

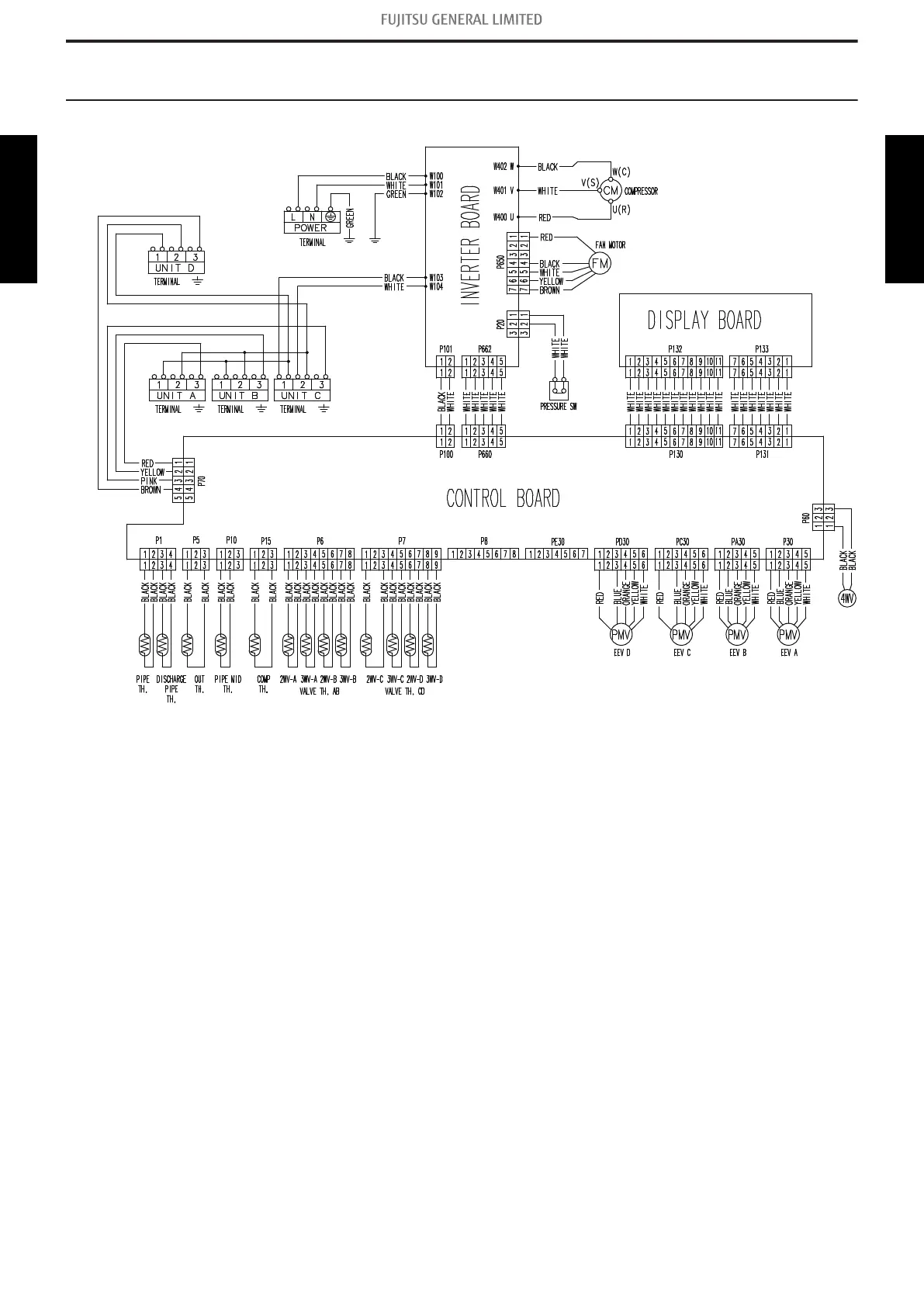

5-1. Model: AOYG30KBTA4 5. Wiring diagram

OUTDOOR UNIT

AOYG30KBTA4

OUTDOOR UNIT

AOYG30KBTA4
