3. Wiring diagrams
3-1. Model: ARXG24KMLA
3-2. Models: ARXG30KMLA, ARXG36KMLA, and ARXG45KMLA
- 7 -

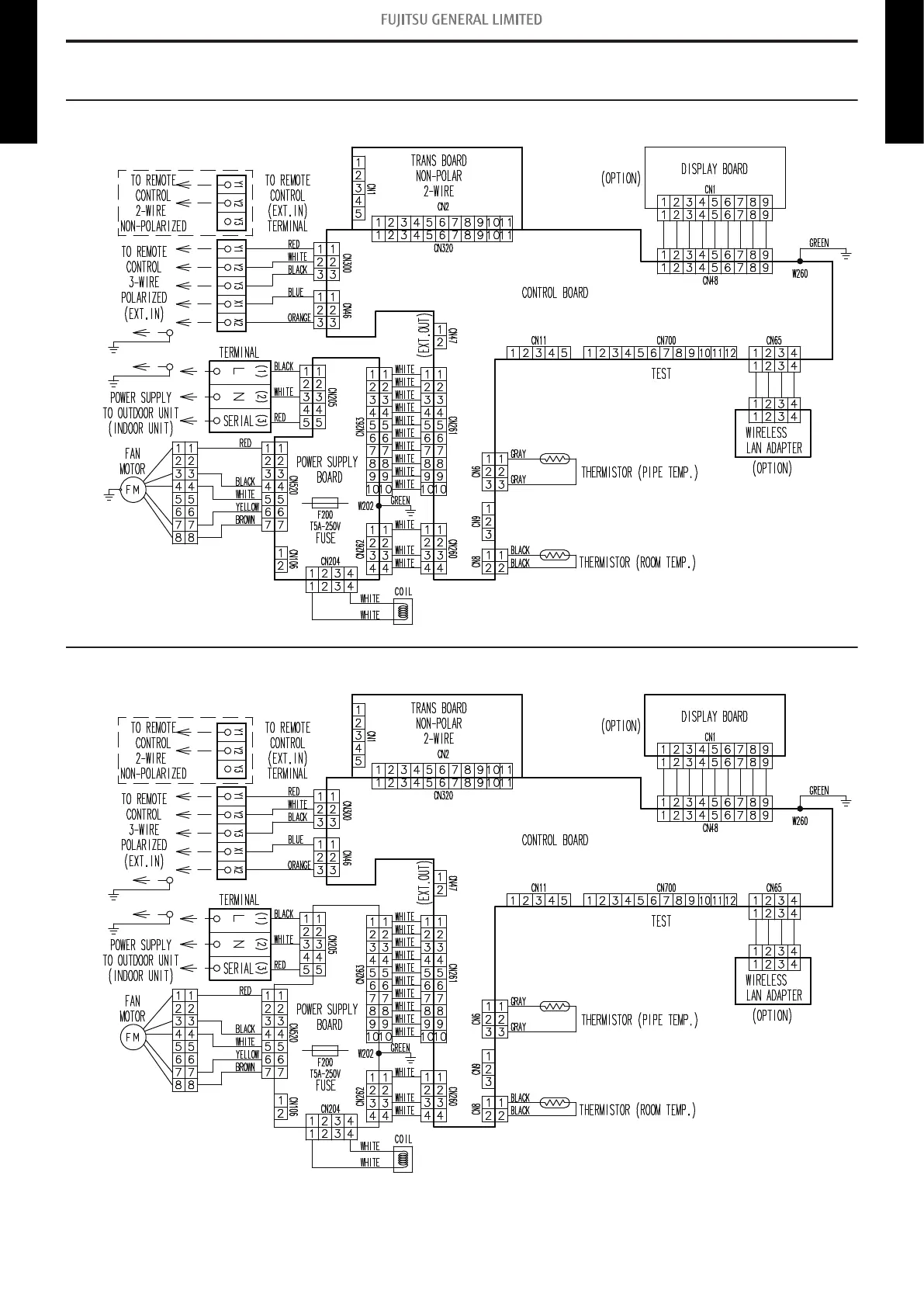

3-1. Model: ARXG24KMLA
3. Wiring diagrams
DUCT TYPE
ARXG24-45KMLA
DUCT TYPE
ARXG24-45KMLA
