5. Fan performance

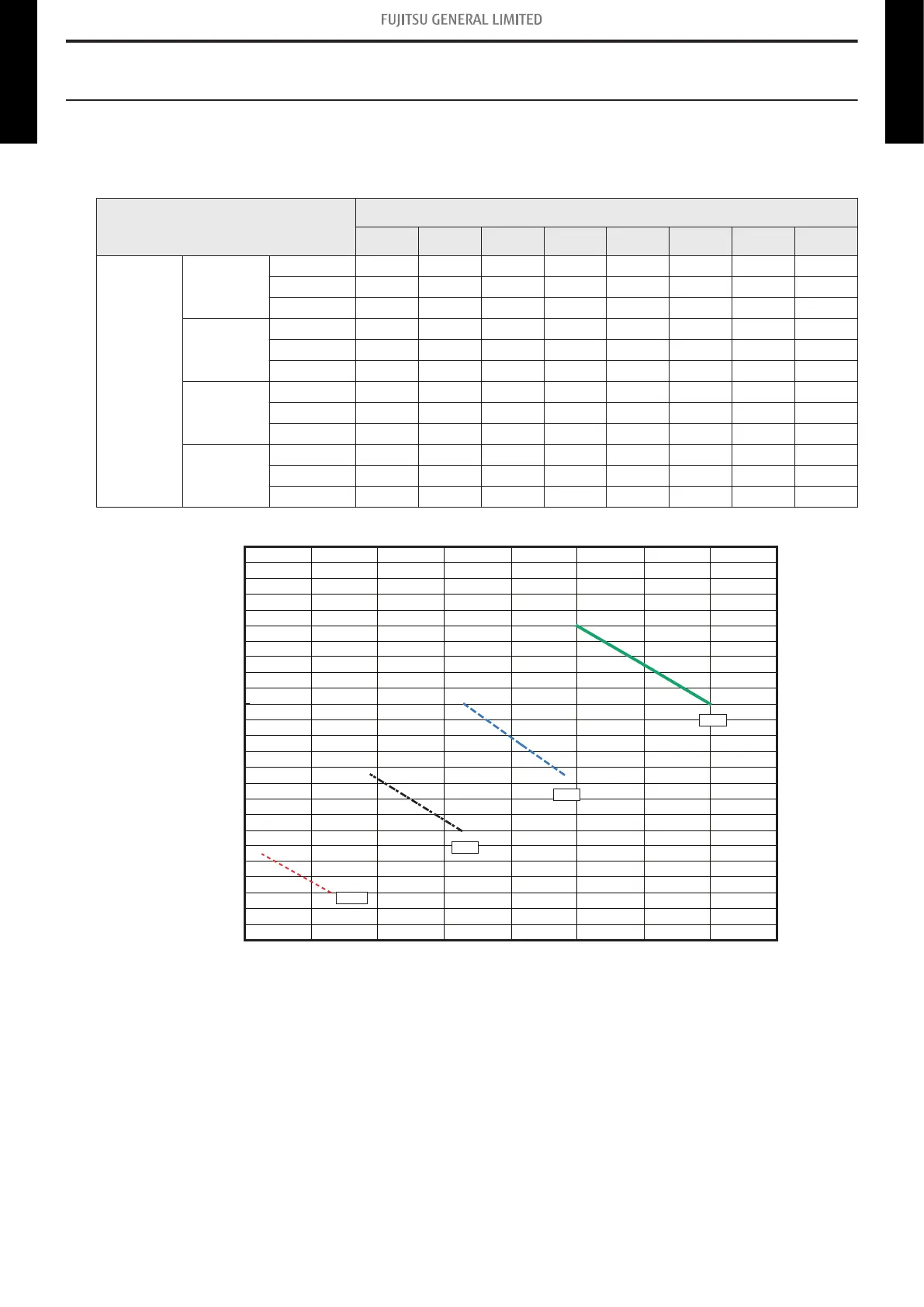

5-1. Fan performance curve
¢
Model: ARXG24KMLA (Normal mode)
Static pressure (Pa)
6 11 14 21 25 30 35 40
Fan speed
HIGH
m3/h — — — — — 1,200 1,100 1,000
l/s — — — — — 333 306 278
CFM — — — — — 706 647 589
MED
m3/h — — — 980 915 830 — —
l/s — — — 272 254 231 — —
CFM — — — 577 539 489 — —
LOW
m3/h — — 825 690 — — — —
l/s — — 229 192 — — — —
CFM — — 486 406 — — — —
QUIET
m3/h 630 525 — — — — — —
l/s 175 146 — — — — — —
CFM 371 309 — — — — — —
Airflow (m
3
/h)
0
40
20
Static pressure (Pa)
500 600 800 900 1,000 1,100 1,300
Q-h Characteristic curve
700
50
30
10
1,200
Hi
Med
Low
Quiet
- 11 -
5-1. Fan performance curve
5. Fan performance
DUCT TYPE ARXG24-45KMLA DUCT TYPE ARXG24-45KMLA
