Fujitsu ARXG45KMLA Design & Technical Manual

¢
Model: ARXG24KMLA (Static pressure mode 1)
Static pressure (Pa)
20 23 30 35 40 47 55 65
Fan speed
HIGH
m3/h — — — — — — 1,200 1,000
l/s — — — — — — 333 278
CFM — — — — — — 706 589
MED
m3/h — — — — 1,000 815 — —
l/s — — — — 278 226 — —
CFM — — — — 589 480 — —
LOW
m3/h — — 830 680 — — — —
l/s — — 231 189 — — — —
CFM — — 489 400 — — — —
QUIET
m3/h 650 540 — — — — — —
l/s 181 150 — — — — — —
CFM 383 318 — — — — — —
Airflow (m
3
/h)
Static pressure (Pa)
500 600 800 900 1,000 1,100 1,300
Q-h Characteristic curve
700 1,200
Hi
Med
Low
Quiet
10
50
30
60
40
30
70
- 13 -

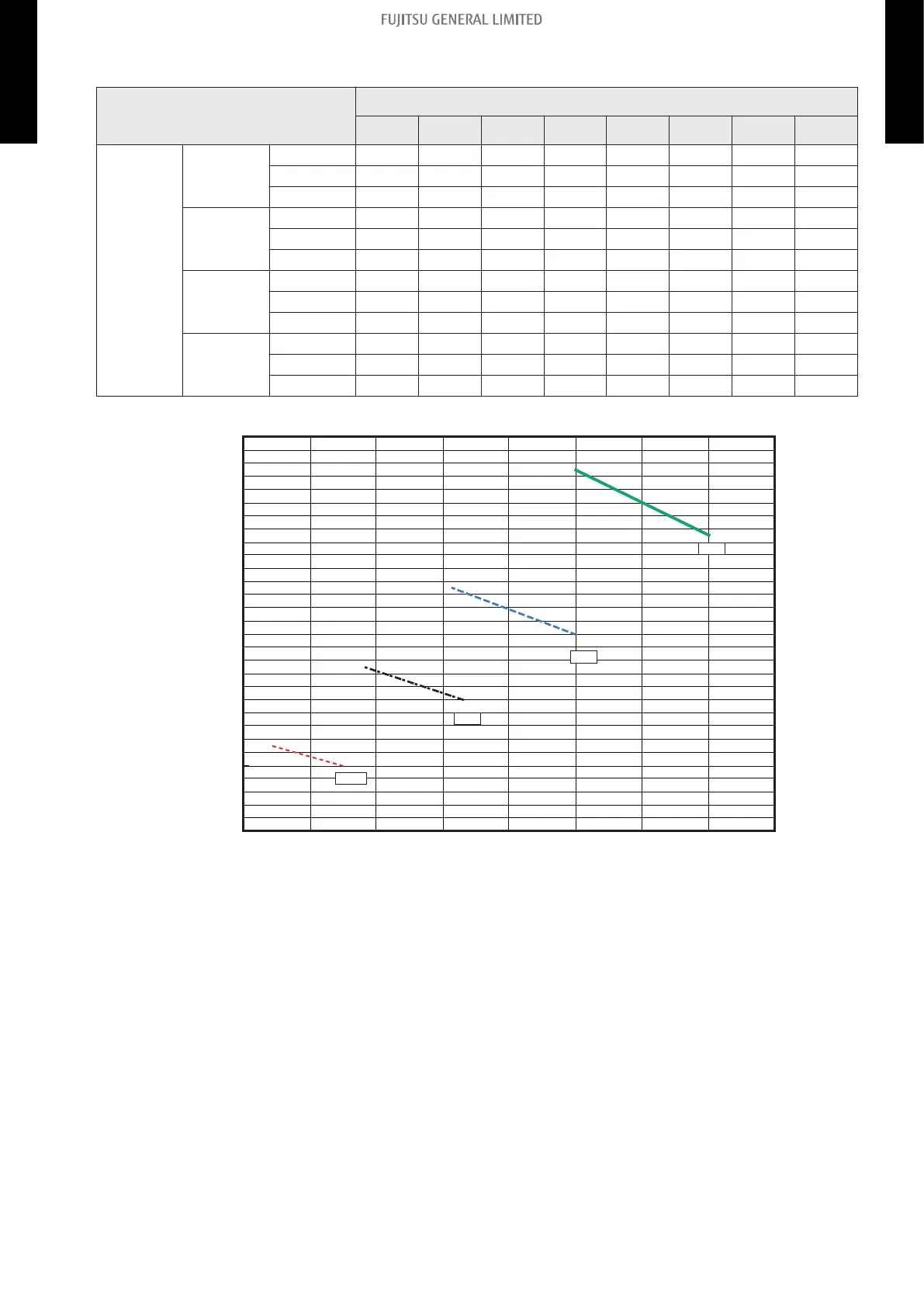

5-1. Fan performance curve
5. Fan performance
DUCT TYPE ARXG24-45KMLA DUCT TYPE ARXG24-45KMLA
