¢ Model: ARXG30KMLA (Normal mode)
Static pressure (Pa)
7 10 13 19 21 30 34 47
Fan
speed
HIGH
(Heating)
m3/h — — — — — 2,270 2,240 2,100
l/s — — — — — 631 622 583
CFM — — — — — 1,336 1,318 1,236
HIGH
(Cooling)
m3/h — — — — — 2,050 2,020 1,900
l/s — — — — — 569 561 527
CFM — — — — — 1,207 1,189 1,118
MED
m3/h — — — — 1,685 1,585 1,540 —
l/s — — — — 468 440 428 —
CFM — — — — 992 933 906 —
LOW
m3/h — — 1,325 1,250 1,220 — — —
l/s — — 368 347 339 — — —
CFM — — 780 736 718 — — —
QUIET
m3/h 1,020 995 960 — — — — —
l/s 283 276 267 — — — — —
CFM 600 586 565 — — — — —
Airflow (m
3
/h)
0
60
40
20
Static pressure (Pa)
900 1,100 1,500 1,700 1,900 2,100 2,300

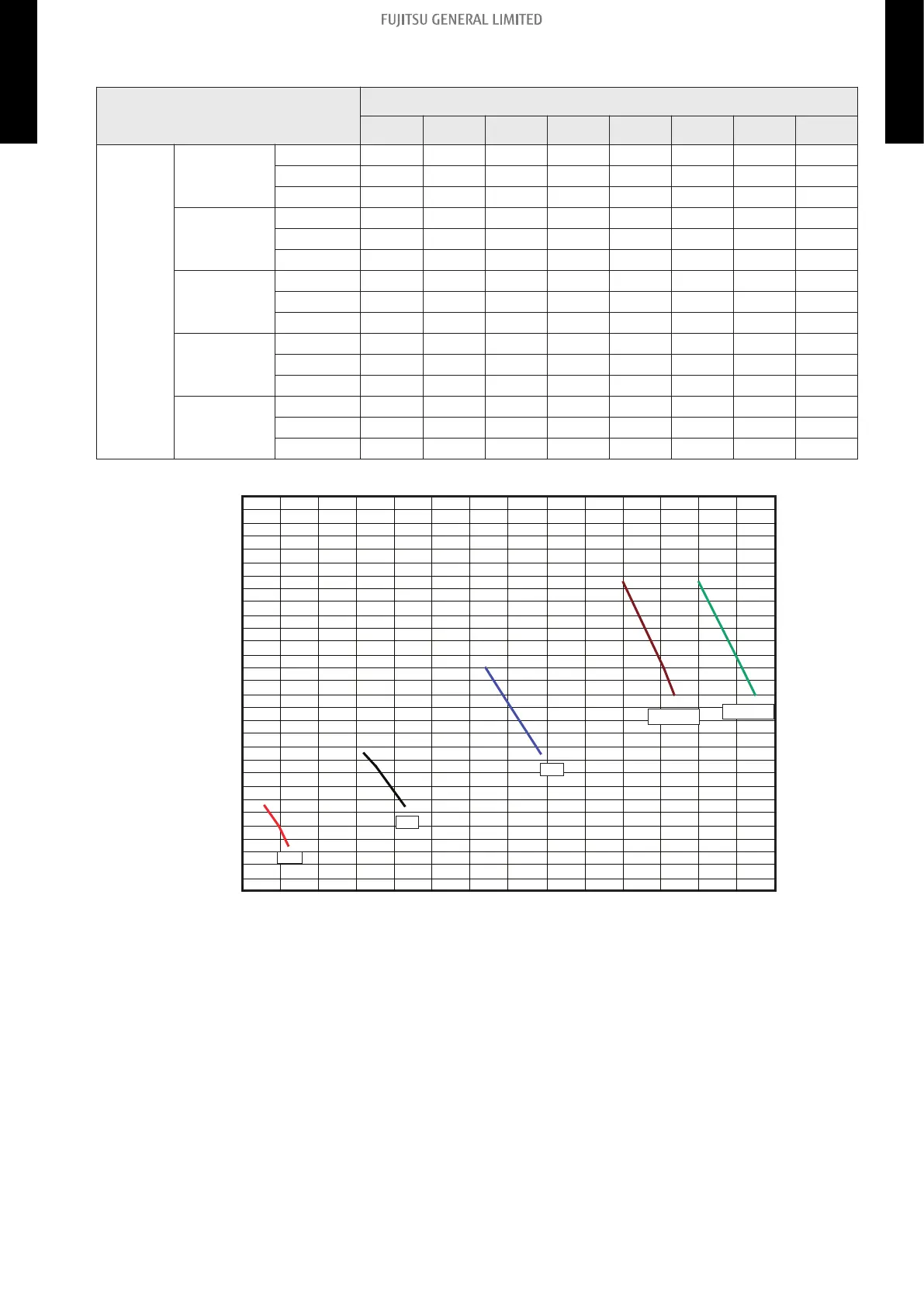

Q-h Characteristic curve
1,300
50
30
10
Med
Low
Hi (Cooling)
Hi (Heating)
Quiet
- 19 -
5-1. Fan performance curve
5. Fan performance
DUCT TYPE ARXG24-45KMLA DUCT TYPE ARXG24-45KMLA
