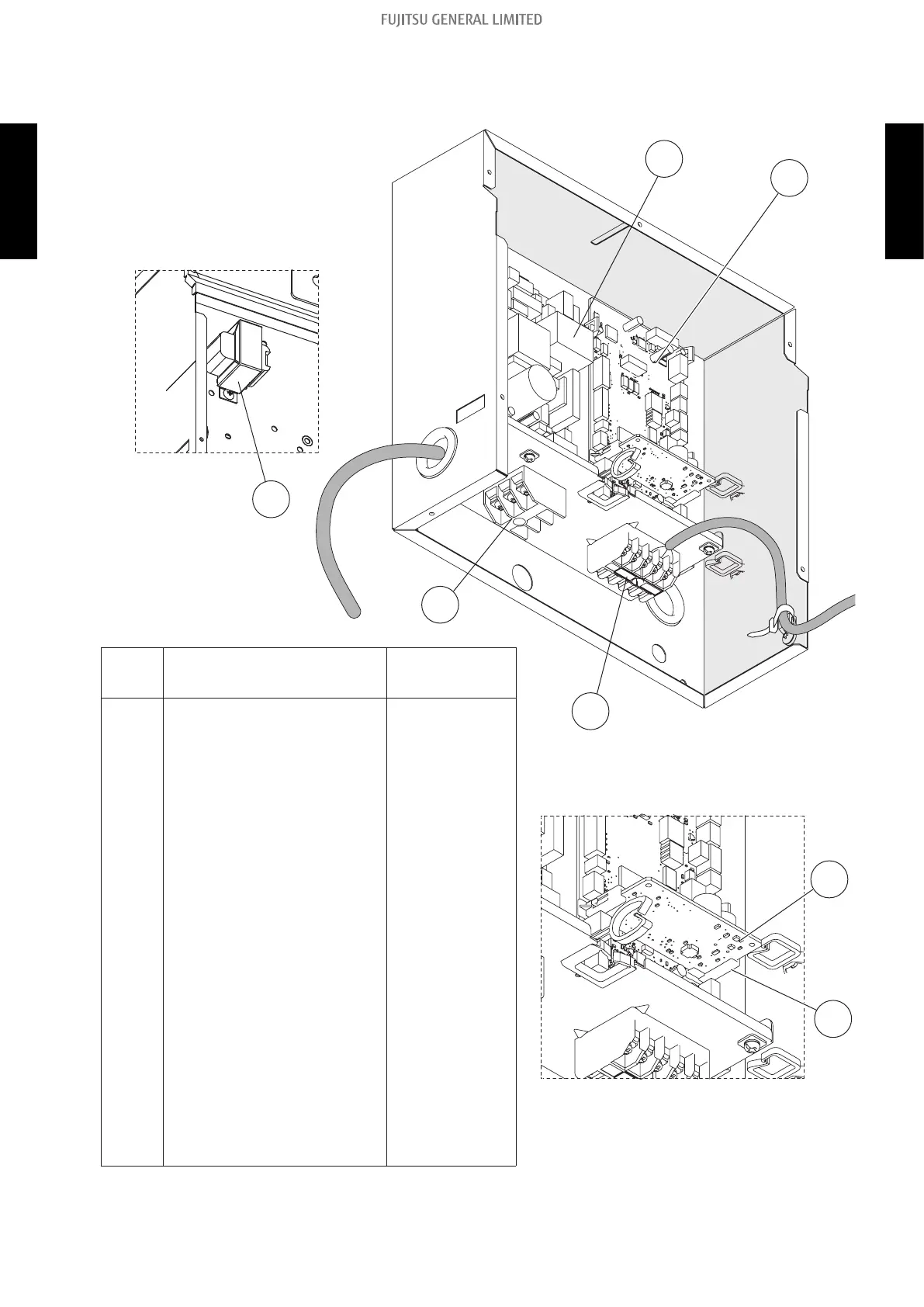

¢ Main PC board
15
14
11
15
11 Main PCB (24KMLA)
15 Terminal 3P 9306489045
16 Terminal 5P 9900896003
13 Communication PCB 9710019005
12 Holder 0600063023
14 Power supply PCB 9710661013
17 Reactor assy 9707457049
Ref. Description
Part number
9710624223
11 Main PCB (36KMLA) 9710624247
11 Main PCB (30KMLA) 9710624230
11 Main PCB (45KMLA) 9710624254
13
16
12
2-1. Models: AR↓G36KMLA and AR↓G45KMLA - (02-3) - 2. Indoor unit parts list
