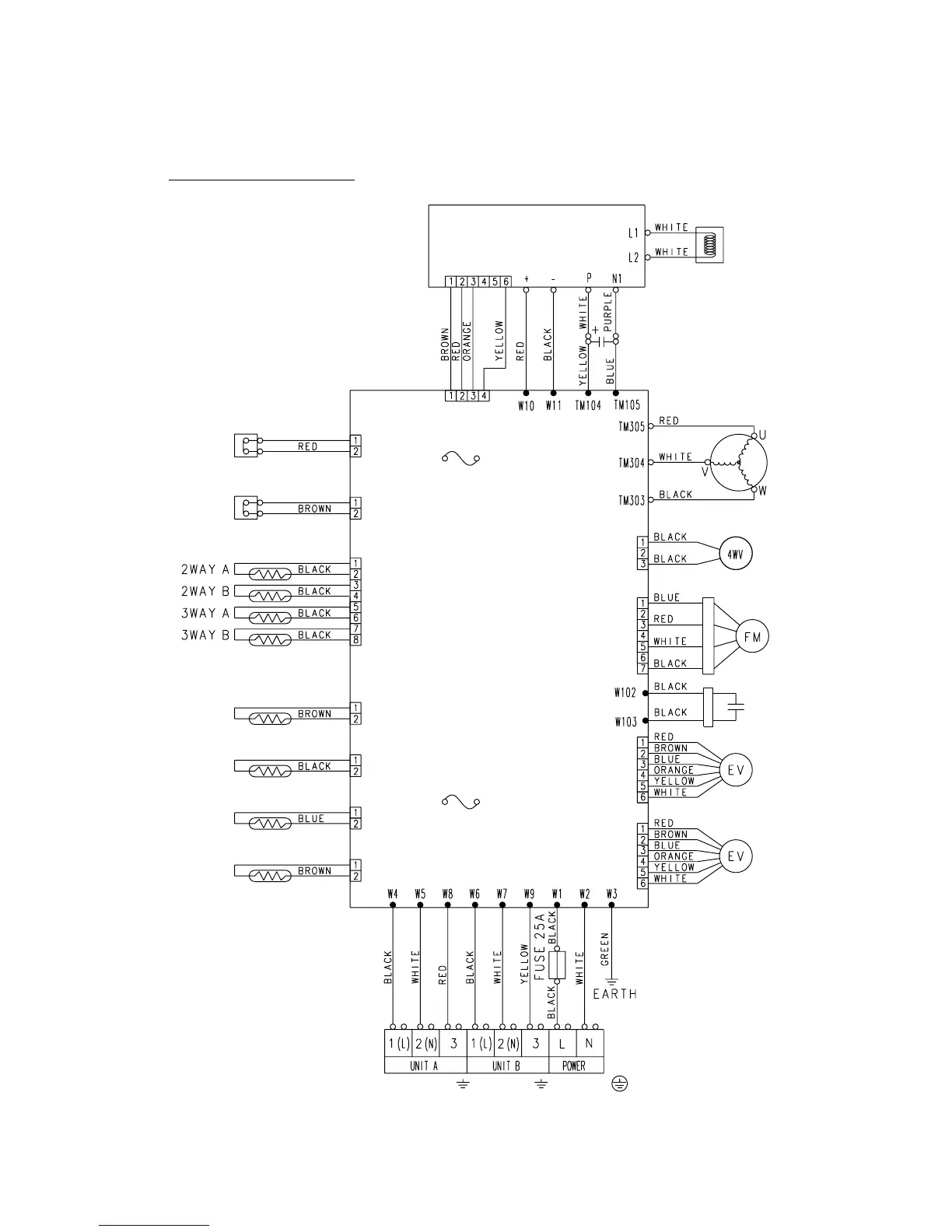

OUTDOOR UNIT
Thermistor
(heat sink)
Expansion
valve coil B
Expansion
valve coil A
Fan capacitor
Fan motor
4-way valve
Compressor
Choke coil
Capacitor
PCB
CN39
CN38
CN37
CN407
CN11
CN21
CN22
CN25
CN27
CN11
CN30
CN28
CN23
Compressor
pressure sw
Active
filter
module
Compressor
thermal sw
Thermistor (valve)
Fuse
F2 T 3.15A 250V
Fuse
F4 T 5A 250V
Thermistor
(outdoor)
Thermistor
(pipe)
Thermistor
(discharge)
Model : AOY24LMAM2
7
2005.06.09
