Models :
ARY9LUAB
ARY12LUAD
ARY14LUAD
ARY18LUAD

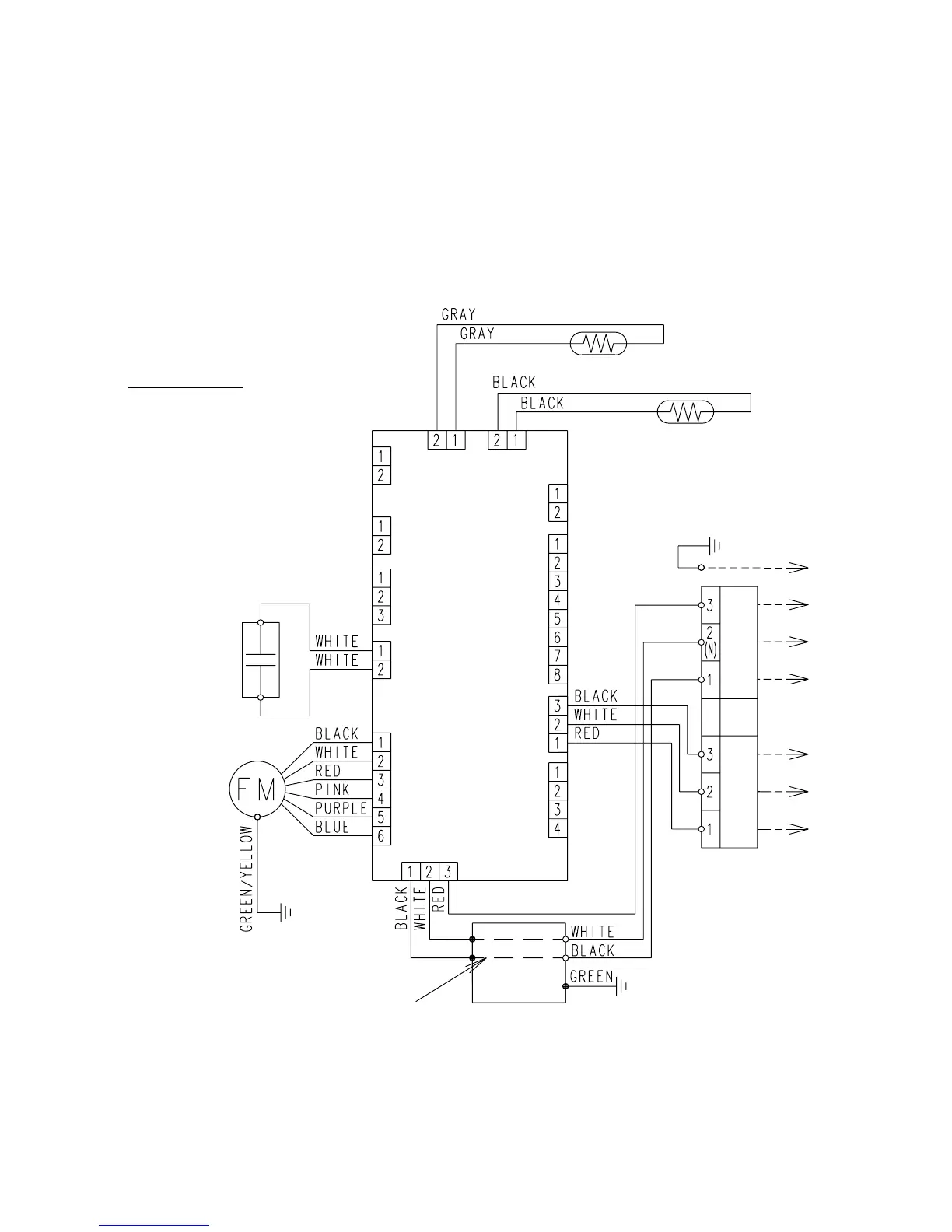

INDOOR UNIT
CIRCUIT DIAGRAM
Thermistor (pipe temp.)
Thermistor (room temp.)
Terminal
Remote
control
to remote control unit
to outdoor unit
Outdoor
unit
CN17
CN5
CN1
use T 3.15A - 250V
fuse on F101
Filter
board
CN4
CN11
(fresh air)
CN15
(float sw)
CN7
CN8
CN10
(heater)
CN13
(display)
CN6
(drain pump)
CN14
(HA)
Fan motor
Fan motor
capacitor
Controller PCB
6
2005.06.09
8
10
Table of Contents
Table of Contents
1
Specifications
2
Outline and Dimensions
3
Refrigerant System Diagram
6
Circuit Diagram
7
Circuit Diagram
9
Indoor Pcb Circuit Diagram
11
Outdoor Pcb Circuit Diagram
12
Error Contents
13
Disassembly Illustration
14
Parts List
21
Indoor Unit Accessories
24
