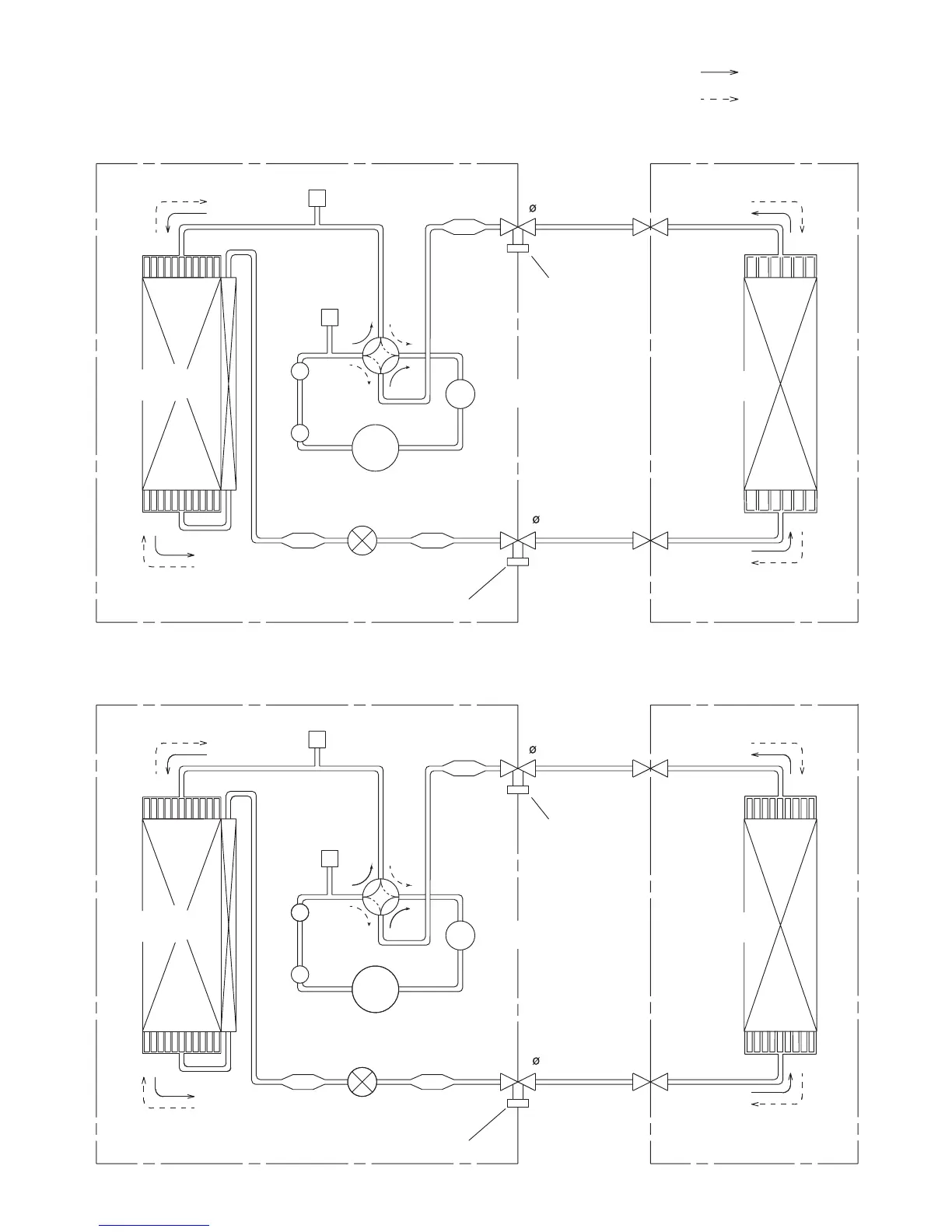

REFRIGERANT SYSTEM DIAGRAM
OUTDOOR UNIT INDOOR UNIT
Refrigerant Pipe
15.88mm (5/8")
: Cool
Refrigerant direction
: Heat
Evaporator
Refrigerant Pipe
9.52mm (3/8")
Charging Valve
Charging
Valve
Accumulator
Strainer
Compressor
Expansion
Valve
Strainer
Condenser
Strainer
4-way
Valve
Muffler x 2
Pressure
Check Valve
High
Pressure
Switch
Model : ARYA36LATU / AOYA36LATL
OUTDOOR UNIT INDOOR UNIT
Refrigerant Pipe
15.88mm (5/8")
Evaporator
Refrigerant Pipe
9.52mm (3/8")
Charging Valve
Charging
Valve
Accumulator
Strainer
Compressor
Expansion
Valve
Strainer
Condenser
Strainer
4-way
Valve
Muffler x 2
Pressure
Check Valve
High
Pressure
Switch
Model : ARYA45LATU / AOYA45LATL
2006.01.23 4
