Fujitsu ARYG30LMLE User Manual

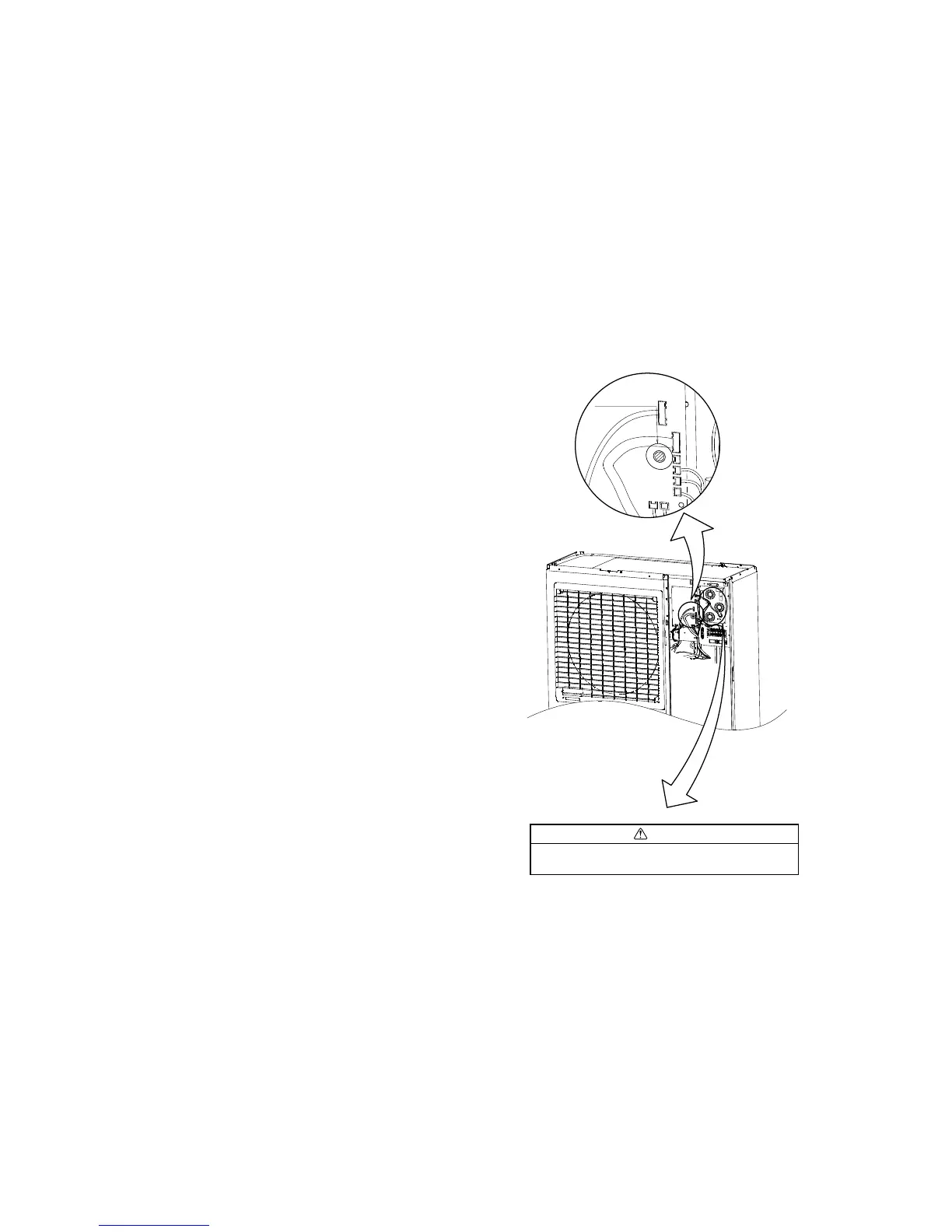

DANGER
This part (Choke coil) generates high voltages.
Never touch this part.
SPECIAL INSTALLATION SETTING
PUMP DOWN (Refrigerant collecting operation)
Perform the following procedures to collect the refrigerant
when moving the indoor unit or the outdoor unit.
(1) Press the push-button switch on the circuit board once.
The LED on the circuit board starts flashing
(one second ON/one se-cond OFF).
This indicates the start of PUMP DOWN operation.
When the switch is pressed while the compressor is in operation,
PUMP DOWN operation starts automatically.
When the switch is pressed while the compressor is in stop,
the compressor starts to operate automatically,
and then move on to PUMP DOWN operation.
(2) PUMP DOWN operation continues for about 1 minute.
When PUMP DOWN operation is completed,
the compressor stops automatically.
Then close the 2-way valve and 3-way valve immediately.
(3) Turn the power off.
OUTDOOR UNIT
PUMP DOWN SW
2013.02.27 15

Fujitsu ARYG30LMLE Specifications

General

Type	Air conditioner indoor unit
Ionizer	-
Multi-split	Yes
Product color	Gray
Refrigerating medium	R410A
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	2100 g
Cooling capacity in watts (max)	10000 W
Cooling capacity in watts (min)	2800 W
Heating capacity in watts (max)	11200 W
Heating capacity in watts (min)	2700 W
Cooling capacity in watts (nominal)	8500 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.73
Seasonal efficiency rating (cooling) (SEER)	5.9
Seasonal efficiency rating (heating) (SCOP)	3.9
Heating capacity in watts (nominal) (Colder heating season)	- W
Current	20 A
AC input voltage	230 V
Current (cooling)	17 A
AC input frequency	50 Hz
Design load (cooling)	8.5 kW
Energy efficiency class (cooling)	A+
Annual energy consumption (cooling)	504 kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	10 kW
Energy efficiency class (heating) (Average heating season)	A
Annual energy consumption (heating) (Warmer heating season)	- kWh
Annual energy consumption (heating) (Average heating season)	2868 kWh
Indoor unit type	Ducted
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit sound power level	65 dB
Indoor unit noise level (low speed)	26 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	No
Outdoor unit noise level	- dB
