Fujitsu ARYG30LMLE User Manual

If you use a wireless remote control, the lamp
on the photo detector unit will output error codes
by way of blinking patterns.
If you use a wired type remote control, error
codes will appear on the remote control display.

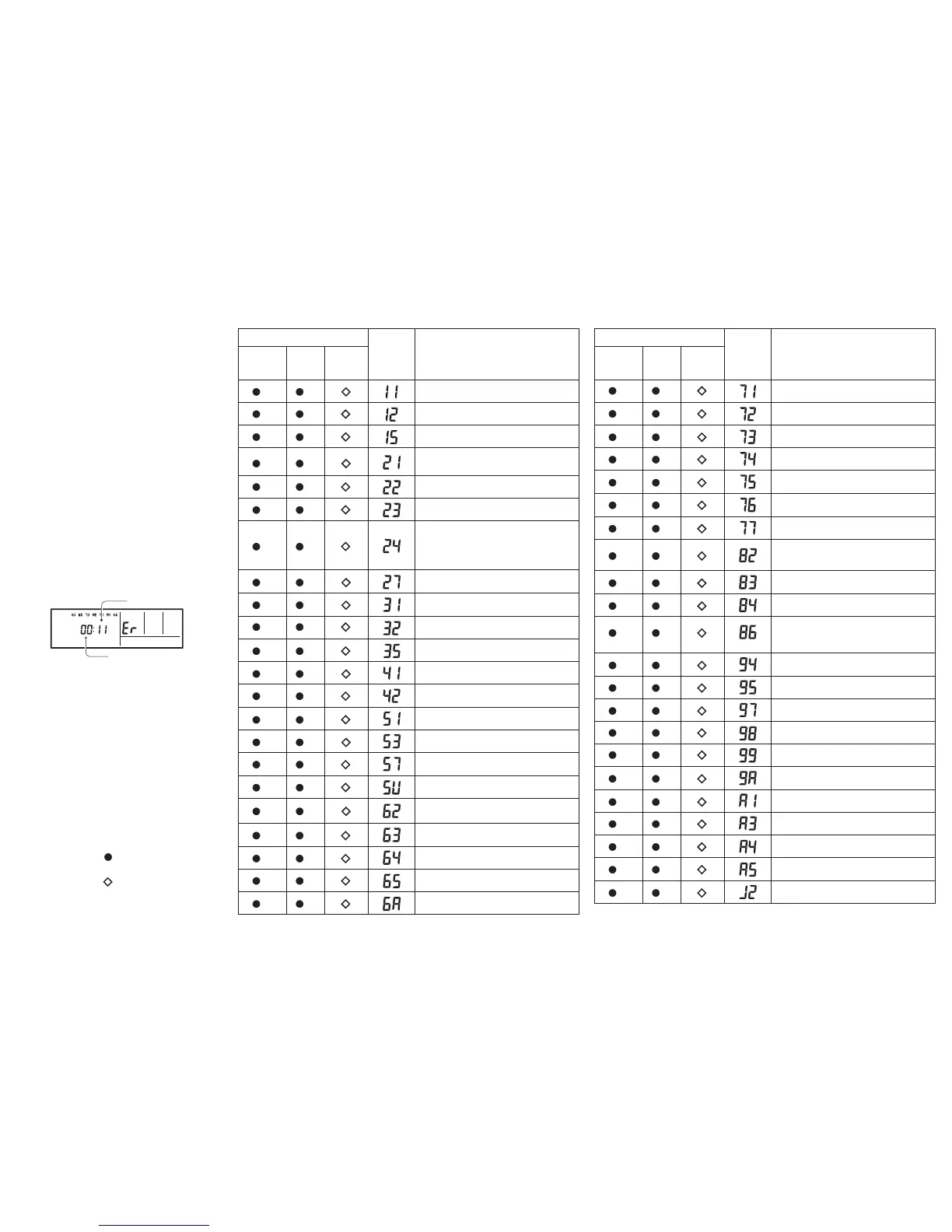

See the lamp blinking patterns and error codes
in the table. An error display is displayed only
during running.
Indoor unit
Wired
remote
control
ERROR DETECTION
Description
OPERATION
lamp
(green)
TIMER
lamp
(orange)
ECONOMY
lamp
(green)
(1) (1)
Serial communication error
(1) (2)
Wired remote control communication error
(1)
(5)
Check run unfinished
(2)
(1)
R.C. address or Refrigerant circuit address setting error
[Simultaneous Multi]
(2) (2)
Indoor unit capacity error
(2) (3)
Combination error
(2)
(4)
Connection R.C. address error
(indoor secondary unit) [Simultaneous Multi]
•
Connection R.C. address error
(indoor unit or branch unit) [Flexible Multi]
•
(2)
(7)
Primary unit, secondary unit set-up error
Power supply interruption error
[Simultaneous Multi]
(3)
(2)
Indoor unit PCB model
information error
(3) (5)
Manual auto switch error
(4) (1)
Room temp. sensor error
(4) (2)
Indoor unit Heat Ex. Middle temp. sensor error
(5)
(1)
Indoor unit fan motor error
(5)
(3)
Drain pump error
(5) (7)
Damper error
(5) (15)
Indoor unit error
(6)
(2)
Outdoor unit main PCB model information
error or communication error
(6) (3)
Inverter error
(6)
(4)
Active filter error, PFC circuit error
(6) (5)
Trip terminal L error
(6)
(10)
Display PCB microcomputers
communication error
: 0.5s on / 0.5s off
: 0.1s on / 0.1s off
( ) : Number of flashing
This is possible only on a wired remote control.
If an error occurs, the following display will be shown.
(“Er” will appear in the set room temperature display.)
2013.02.27 13
(3)
(1)
Indoor unit
Wired
remote
control
Description
OPERATION
lamp
(green)
TIMER
lamp
(orange)
ECONOMY
lamp
(green)
(7)
(1)
Discharge temp. sensor error
(7) (2)
Compressor temp. sensor error
(7) (3)
Outdoor unit Heat Ex. liquid temp. sensor error
(7) (4)
Outdoor temp. sensor error
(7)
(5)
Suction Gas temp. sensor error
(7) (6)
2-way valve temp. sensor error•
3-way valve temp. sensor error•
(7) (7)
Heat sink temp. sensor error
(8) (2)
Sub-cool Heat Ex. gas inlet temp. sensor error•
Sub-cool Heat Ex. gas outlet temp.sensor error•
(8) (3)
Liquid pipe temp. sensor error
(8) (4)
Current sensor error
(8) (6)
Discharge pressure sensor error•
Suction pressure sensor error•
High pressure switch error•
(9) (4)
Trip detection
(9) (5)
Compressor rotor position detection error
(permanent stop)
(9) (7)
Outdoor unit fan motor 1 error
(9) (9)
4-way valve error
Coil (expansion valve) error
Outdoor unit fan motor 2 error
(10) (1)
Discharge temp. error
(10) (3)
Compressor temp. error
(10) (4)
High pressure error
(10) (5)
Low pressure error
(13) (2)
Branch boxes error
[Flexible Multi]
(9) (8)
(9) (10)
Remote control
Error code
Unit number of indoor unit
EX. Self-diagnosis

Fujitsu ARYG30LMLE Specifications

General

Type	Air conditioner indoor unit
Ionizer	-
Multi-split	Yes
Product color	Gray
Refrigerating medium	R410A
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	2100 g
Cooling capacity in watts (max)	10000 W
Cooling capacity in watts (min)	2800 W
Heating capacity in watts (max)	11200 W
Heating capacity in watts (min)	2700 W
Cooling capacity in watts (nominal)	8500 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.73
Seasonal efficiency rating (cooling) (SEER)	5.9
Seasonal efficiency rating (heating) (SCOP)	3.9
Heating capacity in watts (nominal) (Colder heating season)	- W
Current	20 A
AC input voltage	230 V
Current (cooling)	17 A
AC input frequency	50 Hz
Design load (cooling)	8.5 kW
Energy efficiency class (cooling)	A+
Annual energy consumption (cooling)	504 kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	10 kW
Energy efficiency class (heating) (Average heating season)	A
Annual energy consumption (heating) (Warmer heating season)	- kWh
Annual energy consumption (heating) (Average heating season)	2868 kWh
Indoor unit type	Ducted
Indoor unit depth	700 mm
Indoor unit width	1135 mm
Indoor unit height	270 mm
Indoor unit weight	40000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	1900 m³/h
Indoor unit sound power level	65 dB
Indoor unit noise level (low speed)	26 dB
Indoor unit noise level (high speed)	39 dB
Wi-Fi	No
Outdoor unit noise level	- dB
