21

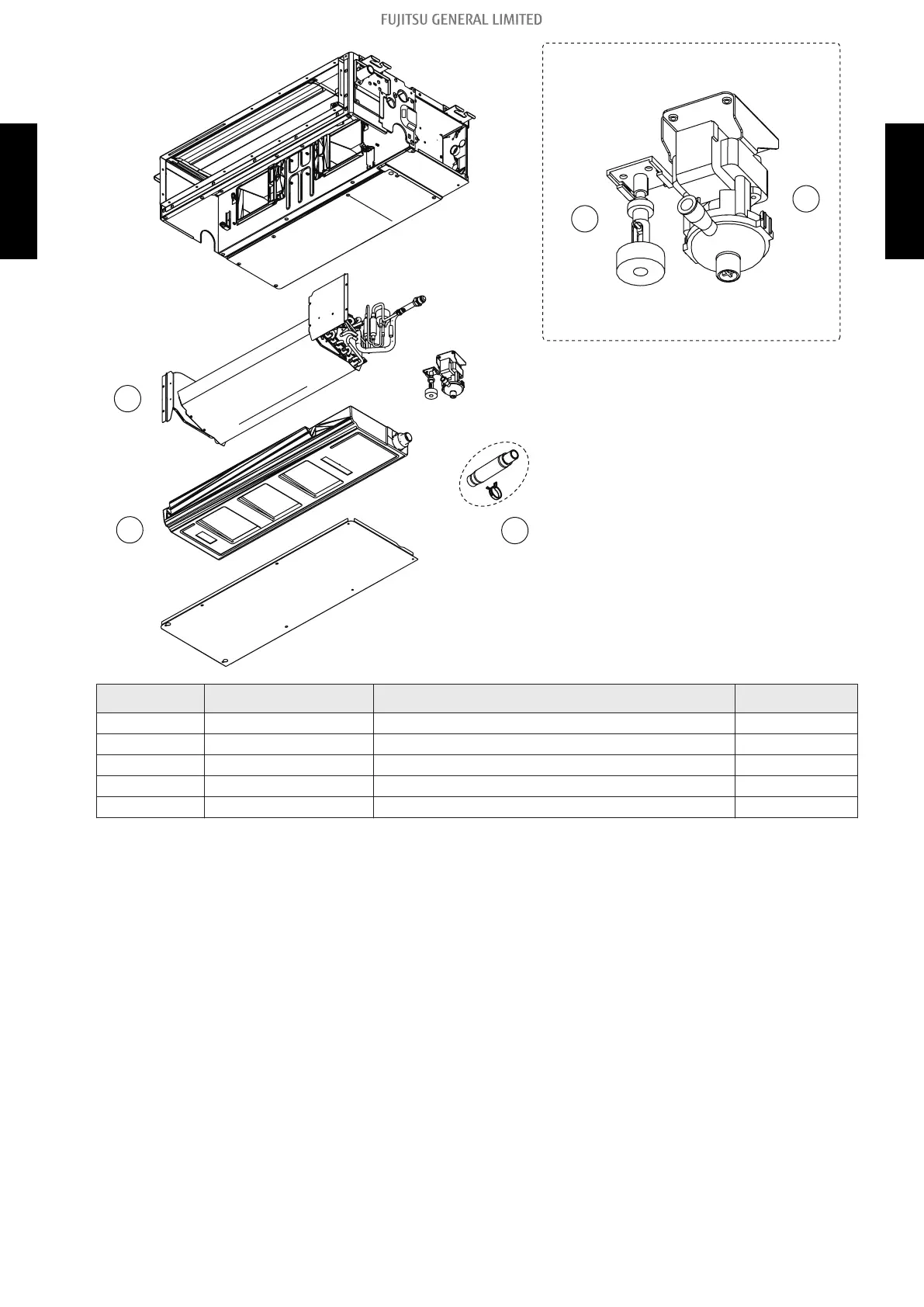

Main Panel (2 Fan)
22
23
25
24
Item no. Part no. Part name Service part
21 9381930111 Drain pan sub assy ♦
22 9381933440 Evaporator total assy ♦
23 9900472061 Pump assy ♦
24 9900465063 Float switch ♦
25 9378450097 Hose sub assy ♦
3-2. Mini duct type - (02-10) - 3. Indoor unit parts list
