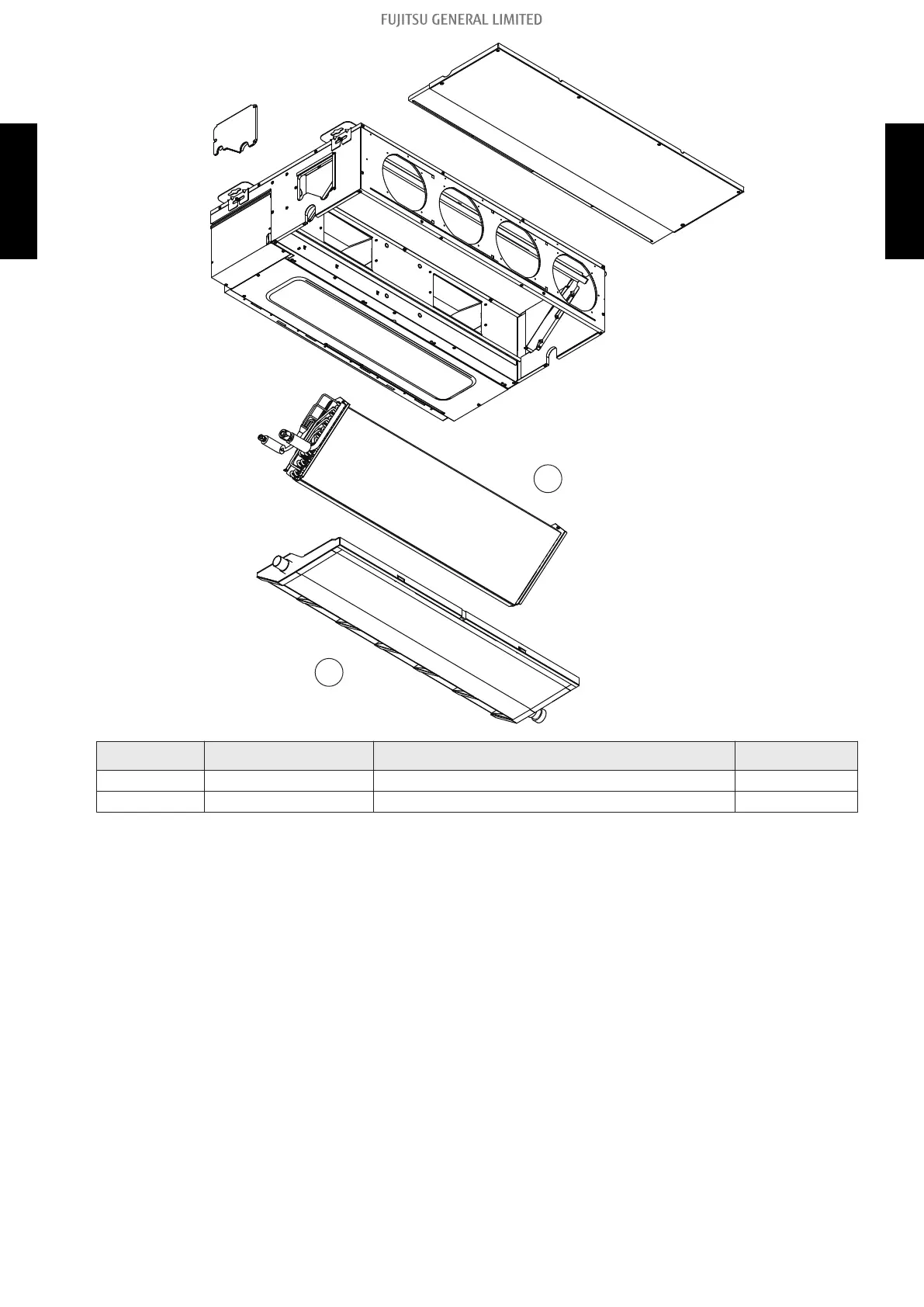

Bracket pipe sub assy
Main panel sub assy
22
21
Item no. Part no. Part name Service part
21 9374513017 Drain pan sub assy ♦
22 9374517978 Evaporator total assy ♦
3-4. Medium static pressure duct type - (02-24) - 3. Indoor unit parts list
