Fujitsu ASHG12KMCE Service Manual

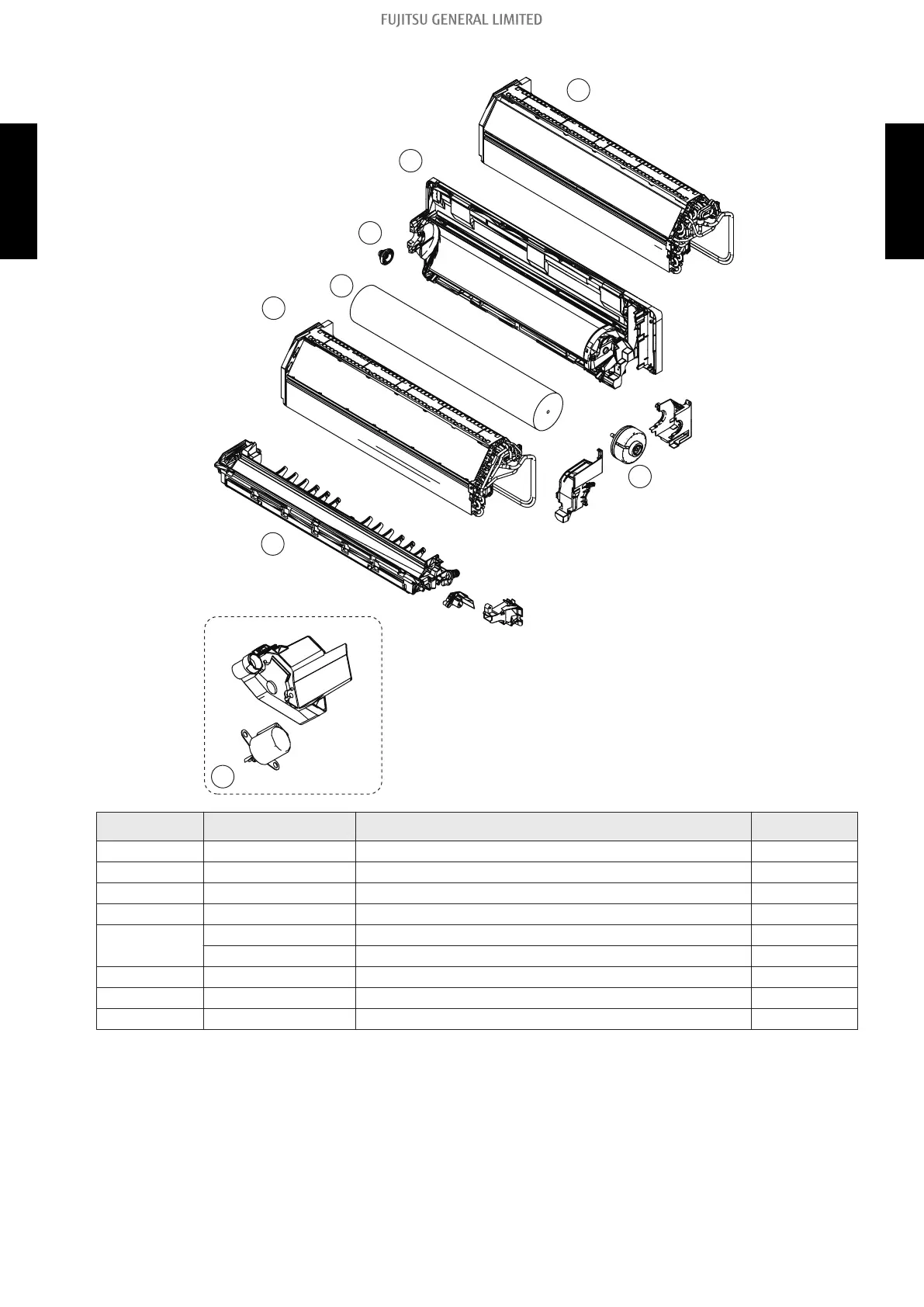

 Evaporator
Cable guide
Step motor
holder assy
Step
motor
holder
63
61
64
62
Motor case
Motor cover assy
67
66
68
65
Item no. Part no. Part name Service part
61 9387593143 Evaporator total assy (for 07, 09, 12 model) ♦
62 9387593150 Evaporator total assy (for 14 model) ♦
63 9387590005 Drain pan total assy ♦
64 9387714005 Step motor holder assy ♦
65
9603569013 Brushless motor (for 07, 09, 12 model) ♦
9603572013 Brushless motor (for 14 model) ♦
66 9387055016 Crossflow fan assy ♦
67 9333628004 Bearing D assy ♦
68 9387587012 Base assy ♦
3-5. Wall mounted type - (02-32) - 3. Indoor unit parts list
