En-11

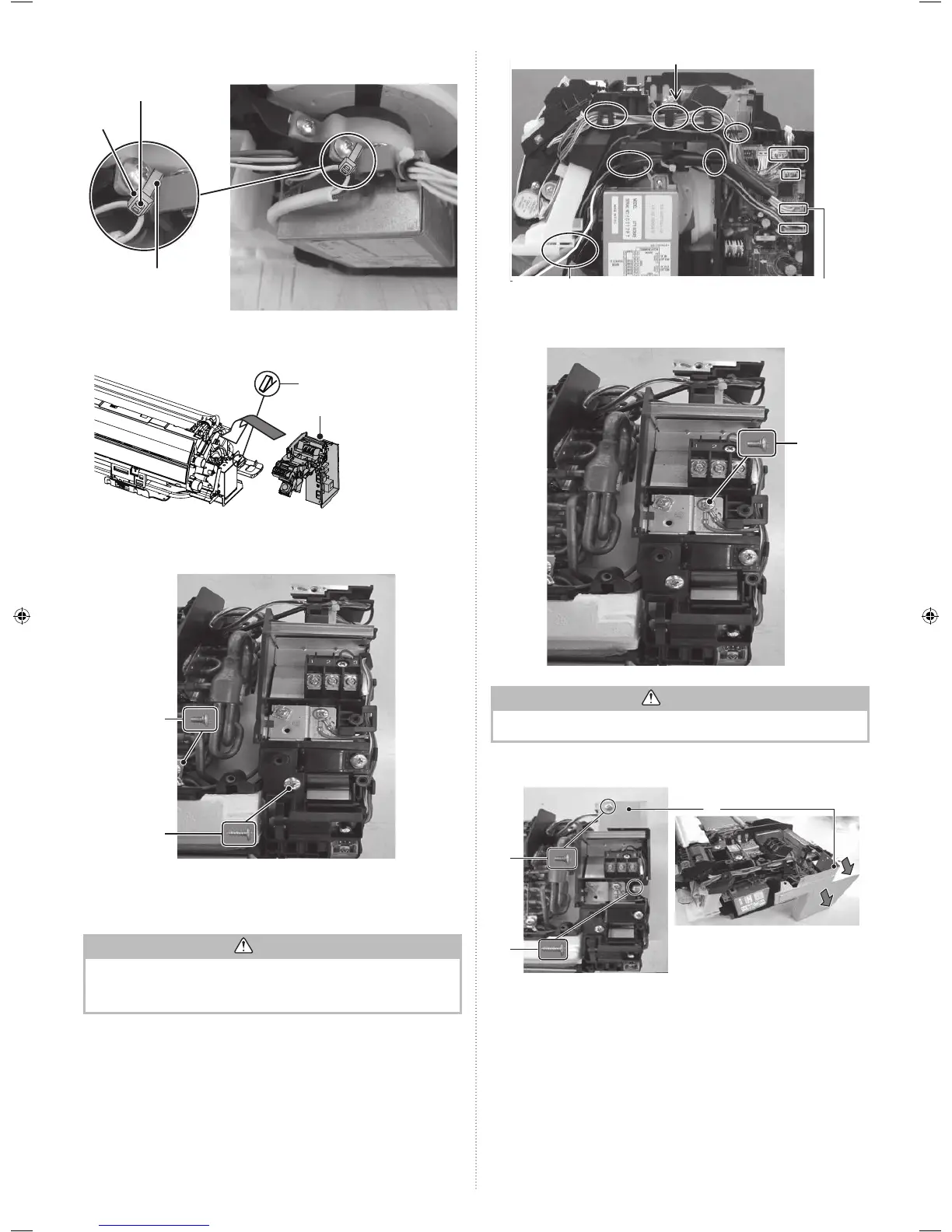

(2) Use the hole on the motor cover and secure the wire from the communication box
with the provided cable tie. (See the figure below)
Cable tie
Cut away the tip of
the cable tie.
Hole
13.3.4. Installing control box
(1) Set the control box toward the bottom so that it touches the motor cover from the
right.
Insert the protruding part of the main
unit on the fi xture (1 location) into
the control box.
Control box
• The installation method of the control box is different for each destination country.
(See figure below)
(When installing, reuse the screw that was removed in
13.3.2. Removing control
box
.)
(2) Secure the control box with a screw. (Use a long screw.)
(3)
(2)
(3) Fasten the earth wires of the heat exchanger together as shown in the left figure
above. (Use a short screw here.)
(4) Hitch the wires onto the fixtures as shown in the oval circles below. Then connect
the connectors in the squares to the terminals respectively.
(Each terminal should form a pair with a connector.)
CAUTION
• Ensure that the connector is properly inserted.
Otherwise, it may result in erroneous operation.
• Be careful not to damage the parts on the board.
Otherwise, it will cause malfunction.
(4)
Wired remote controller cable
External connect kit cable (sold separately)
Communication kit connector
(5) Fasten the earth wire (green) in the communication box together with the earth
wire (green) on the board of the control box as shown below and in the bottommost
figure of the previous page.
(5)
(6) Install the cover of the control box onto the inner side of the rib as shown below.
CAUTION
• Do not cut or tuck the wires with the electrical component box cover.
An electric shock may occur if the wires are damaged.
(7) Tighten with screws to prevent the cover of the control box from falling off.
(When installing, reuse the screws that was removed in 13.3.2. Removing control
box.)
(7)
(7)
(6)
