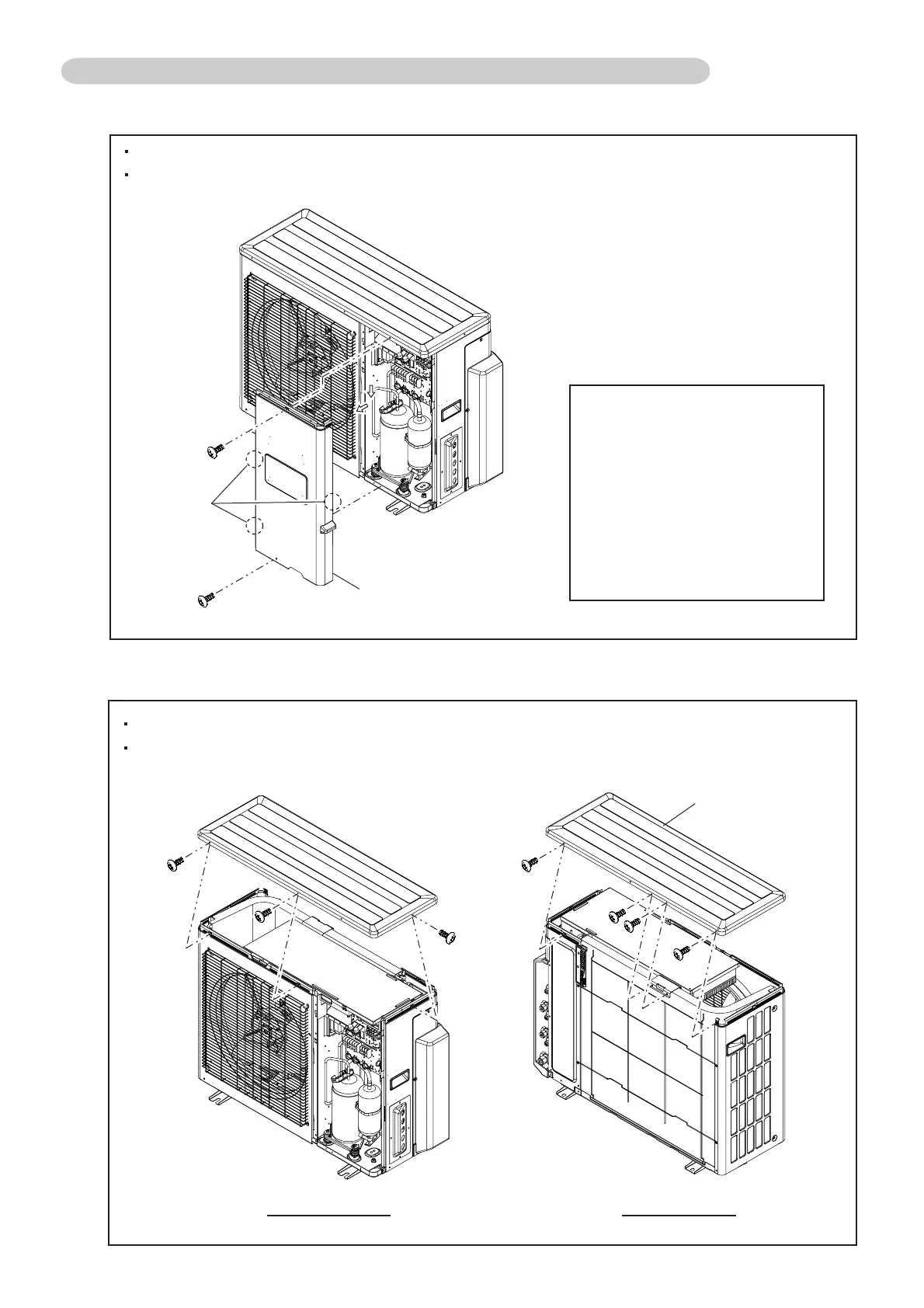

1. Service Panel sub assy removal
Remove the 2 mounting screws.
Remove the Service Panel sub assy by sliding downward.
2. Top Panel sub assy removal
Remove the 7 mounting screws.
Remove the Top Panel sub assy upward.
FRONT VIEW REAR VIEW
3-1-2 DISASSEMBLY PROCESS (AOU18/ 24RLXFZ)
03-03
Replaceable Component
Compressor
Accumulator
4-way valve
Solenoid
Thermistor (Compressor temp.)
Thermistor (Discharge temp.)
Thermistor (Outdoor temp.)
Thermistor (Heat exchanger temp.)
Thermistor (2/3-way valve temp.)
Pressure SW
Coil (Expansion valve)
Hook
(3 places)
Service Panel sub assy
Top Panel sub assy
To Next Page
