Fujitsu ASU18RLQ/AOU18RLQ User Manual

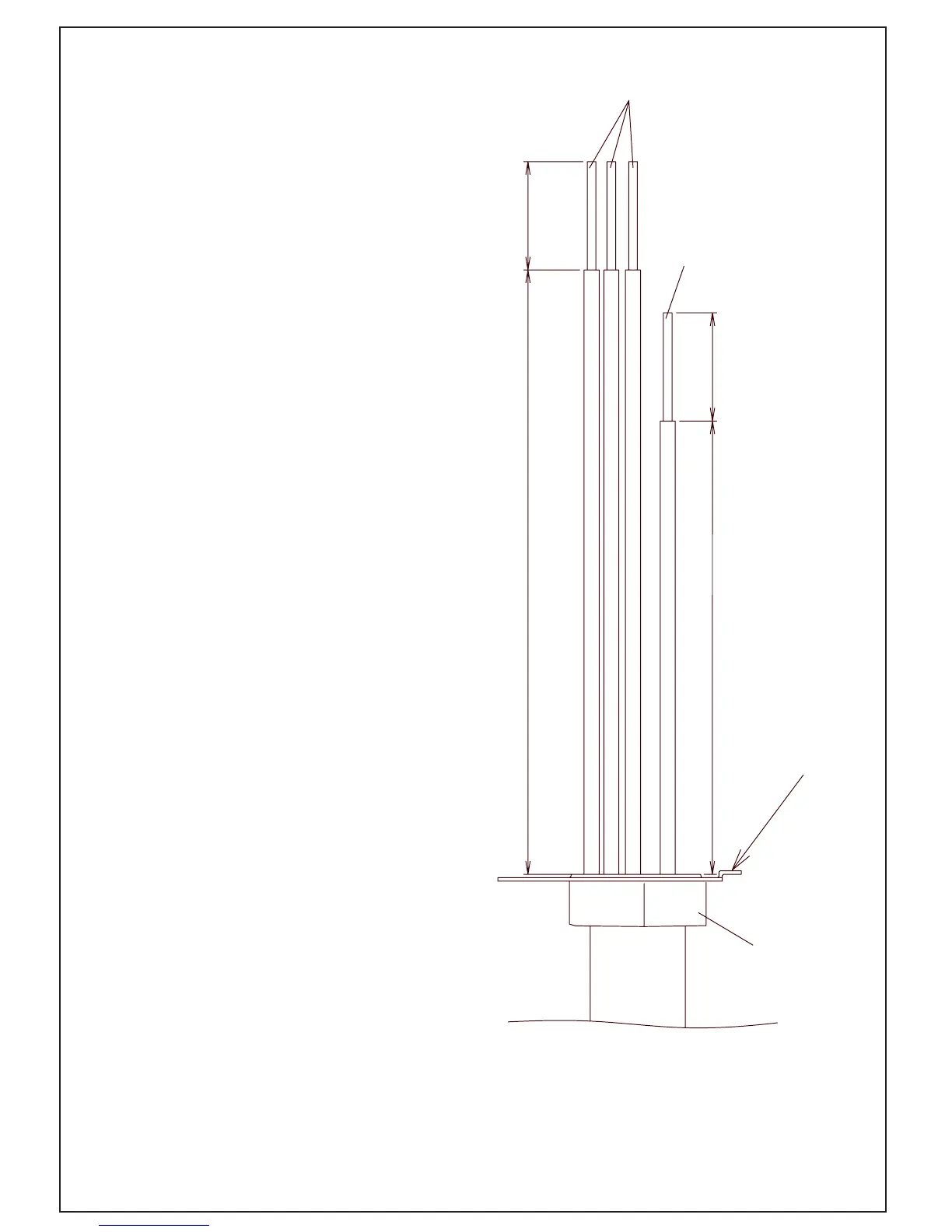

The method of adjusting inter-unit wire harness
To connect inter-unit wire harness to the terminal correctly, please
refer to Fig. 19 to adjust the length of the part of Inter-unit Wire
harness ahead from conduit holder.
5-1/2" (140mm) 15/16" (25mm)
15/16" (25mm)
4-3/16" (105mm)
(1:1)
14AWG
EARTH WIRE
CONDUIT PLATE
CONDUIT CONNECTOR
Fig. 19
