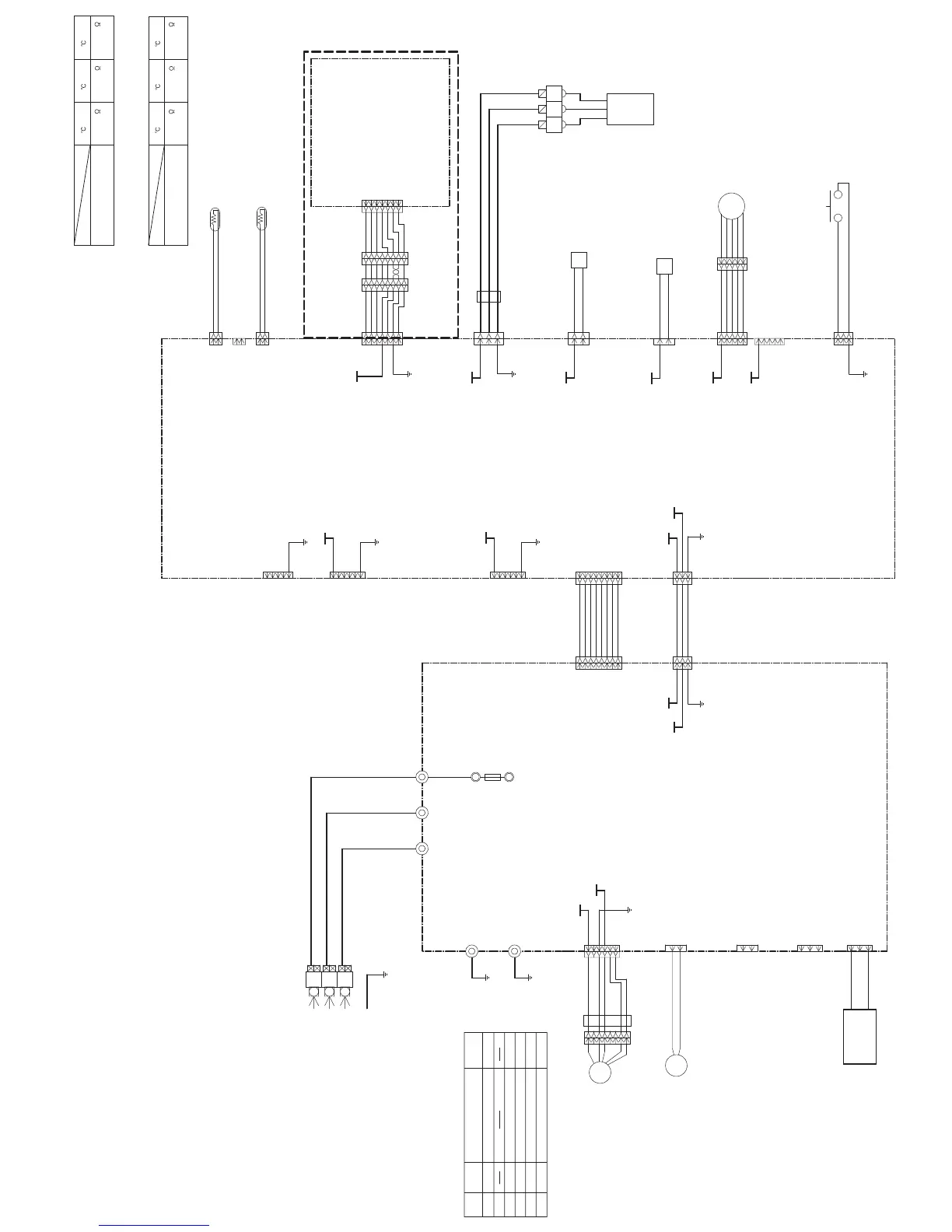

Fujitsu ASU24RLF Service Manual

UL1430 AWG26 x 5
RED ORANGE YELLOW
PINK
BLUE
RED ORANGE YELLOW
PINK
BLUE
UL1007 AWG24 BLACK UL1007 AWG24 BLACK
UL1430 AWG28 x 7
BROWN RED ORANGE WHITE BLUE PURPLE GRAY
UL1430 AWG28 x 7
BROWN
RED
ORANGE
WHITE
BLUE
PURPLE
GRAY
1
2
3 4
5 6
7
8
1
2
3 4
5 6
7
8
1
2
3 4
5 6
7
8
1
2
3 4
5 6
7
8
JUNCTION CONNECTOR XMR-08V WHITE
JUNCTION CONNECTOR XMR-08V WHITE
CN201 S07B-PASK-2 WHITE
CN201-1 CN201-2 CN201-3 CN201-4 CN201-5 CN201-6 CN201-7
CN13-1
CN13-2
CN13-3
CN13-4 CN13-5
CN13-6 CN13-7
CN5-1 CN5-2
CN7-1 CN7-2
CN8-1 CN8-2
GRAY GRAY
BLACK
BLACK
UL1430 AWG22 RED UL1430 AWG22 WHITE UL1430 AWG22 BLACK
TERMINAL BOARD HP-T3031-21
FRESH AIR ( OPTION )
HEATER ( OPTION )
WIRED REMOTE CONTROL
BLK WHT
RED
LOUVER ( UP / DOWN ) ( OPTION )
FLOAT SWITCH
M
CN14-1
CN14-2
CN14-3
CN6-1 CN6-2
CN10-1
CN10-2
CN11-1
CN11-2 CN11-3
CN11-4 CN11-5
CN12-1
CN12-2 CN12-3
CN12-4 CN12-5
CN9-1 CN9-2
CN9-3
CN2-1 CN2-2
CN2-3
CN2-4 CN2-5 CN15-1 CN15-2 CN15-3 CN15-4 CN15-5 CN15-6 CN3-1 CN3-2 CN3-3 CN3-4 CN3-5 CN3-6 CN4-1 CN4-2 CN4-3 CN4-4 CN4-5 CN4-6 CN4-7 CN4-8 CN1-1 CN1-2 CN1-3
CN105-6
CN105-5 CN105-4 CN105-3
CN105-2 CN105-1 CN106-1 CN106-2
CN103-1 CN103-2
CN102-1 CN102-2
CN102-3 CN108-1 CN108-2
CN108-3
CN104-1 CN104-2 CN104-3 CN104-4 CN104-5 CN104-6 CN104-7 CN104-8 CN101-1 CN101-2 CN101-3
DC SUPPLY
POWER DRIVE
UL1430 AWG26 x 3
UL1430 AWG26 x 8
GRAY
GRAY
GRAY
GRAY
GRAY GRAY GRAY GRAY GRAY
GRAY
GRAY
RED BLACK WHITE YELLOW
BROWN
1
2
3 4
5 6
7
8
UL1015 AWG18
BLACK
UL1015 AWG18 BLACK
WHITE WHITE
REACTOR ASSY RLEY41-22
DRAIN PUMP
M
F M
DC FAN MOTOR
F101
AC250V
3.15A
W105
W102 W101
CN2 B5P-SHF-1AA
WHITE CN15 B06B-XASK-1-A WHITE
CN3 B06B-PASK-1 WHITE CN4 B08B-PASK-1 WHITE
CN1 B03B-PASK-1 WHITE
CN105 B5P6-VH-B WHITE
CN106 B2P3-VH-B-E BLUE
EX OUT
EX I N
CN103 B2B-XH-AM
WHITE
CN103 B3B-XH-AM WHITE CN108 B2P3-VH-B WHITE
E101 E102
UL1015 AWG16 GREEN
UL1015 AWG16
GREEN
UL1015 AWG20 BLACK
UL1015 AWG20 WHITE
UL1015 AWG20 RED
L
N
SERIAL
E
1
2
3
TERMINAL
HP-T3031-3-L1
CN8
B02B-XASK-1-A
WHITE
CN7
B02B-XAYK-1-A
YELLOW
CN5
B02B-XAKK-1-A
BLACK
CN13
B07B-PASK-1
WHITE
CN14
B03B-XAKK-1-A
BLACK
CN6
B02B-PAMK-1-A
GREEN
CN10
B02B-PAOK-1
ORANGE
CN11
B05B-XASK-1-A
WHITE
CN12
B05B-XARK-1-A
RED
CN9
B03B-XARK-1-A
RED
THERMISTOR ( ROOM TEMP. ) THERMISTOR ( PIPE - MID. TEMP. )
CN104
B08B-PASK-1
WHITE
CN101
B03B-PASK-1
WHITE
EMI FILTER
ZCAT2132-1130
1 TURN
POWER SOURCE AC208 - 230V 60Hz
EMI FILTER
ZCAT1518-0730
1 TURN
POWER SUPPLY PCB
K06AL-1006HSE-P0
MAIN PCB
ARU7RLF : K06AK-1404HSE-C1
INDICATOR PCB
K04EI-1000HSE-D0
RECEIVER UNIT ( OPTION )
CONTROL UNIT
ARU7RLF : EZ-0131BHSE
2015.01.22 23
ARU9RLF ARU12RLF ARU18RLF
: EZ-01123HSE : EZ-01124HSE : EZ-01125HSE
ARU18RLF
: K06AK-1407HSE-C1
ARU12RLF : K06AK-1406HSE-C1 ARU9RLF : K06AK-1405HSE-C1
CN105 DC Fan motor
6
5 4 3 2 1
Pin No.
Terminal code
Vm
GND
Vcc
Vsp
PG
Function of terminal
Revolution pulse output Speed control voltage input
Control power voltage input
GND
Motor power voltage input
Lead wire color
Red Black White Yellow Blue
CN5 Thermistor Characteristics.
Thermistor ( Pipe temp. )
168.6 k
62.5 k
40.0 k
1.1 V
2.2 V 2.8 V
(20 68 )
°
F
(30 86 )
°
F
( 0 32 )
°
F
Thermistor
Temperature
CN8 Thermistor Characteristics.
Thermistor ( Room temp. )
33.6 k
12.5 k
8.0 k
3.0 V
4.0 V 4.3 V
(20 68 )
°
F
(30 86 )
°
F
( 0 32 )
°
F
Thermistor
Temperature
DC340V
DC15V
DC13.5V
DC5V
DC13.5V DC13.5V
DC13.5V
DC13.5V
DC12V
DC5V
DC13.5V
DC5V
DC13.5V
DC5V
22mH, 2.2A
ARU24RLF
: K06AK-1408HSE-C1
ARU24RLF : EZ-01126HSE
