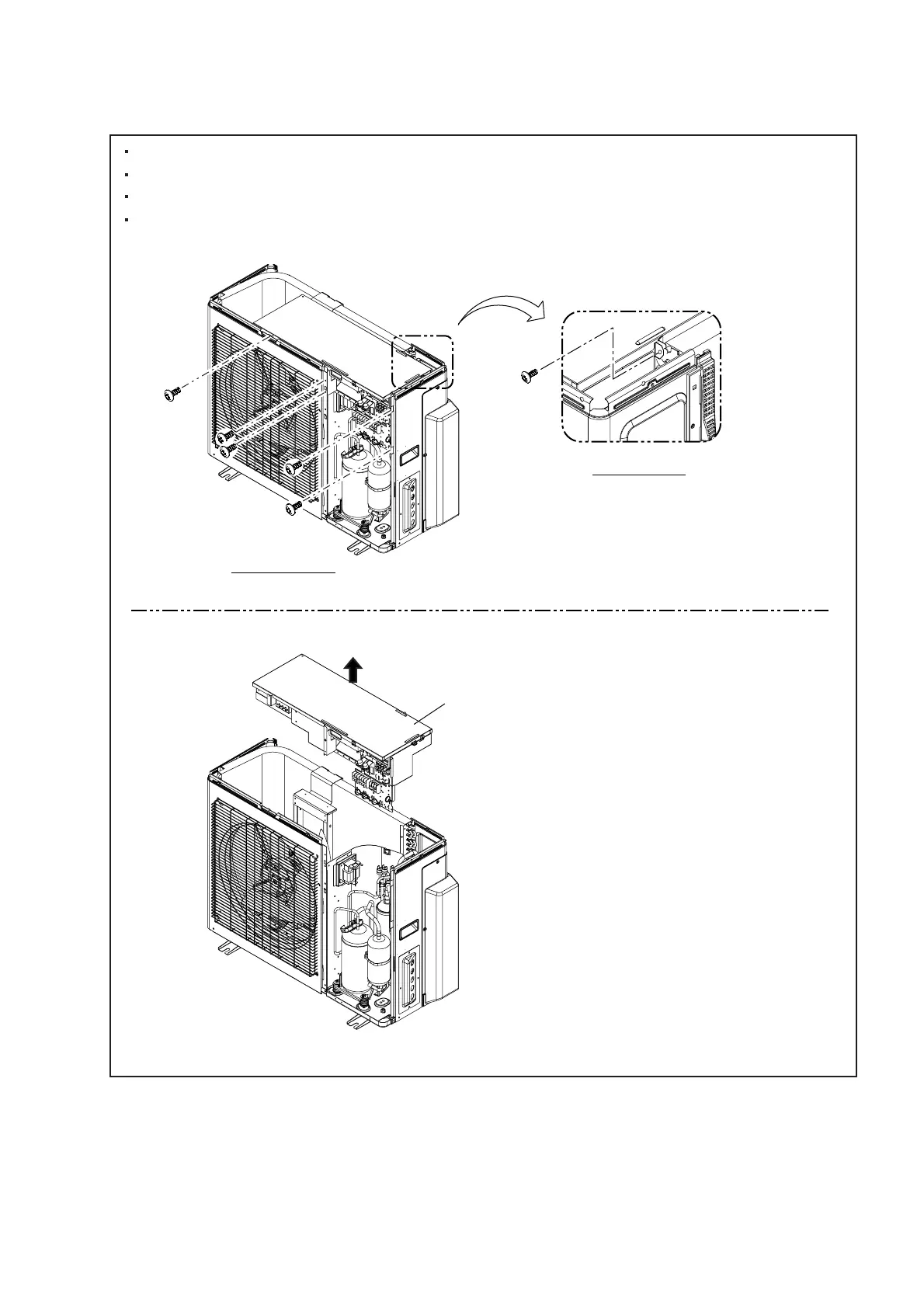

3. Inverter Box removal
Remove the 6 mounting screws.
Remove the power supply & connection cord.
Remove the connectors connected to Main PCB. (Thermistor, EEV, and so on)
Remove the Inverter Box upward.
03-04
Inverter Box
REAR VIEW
FRONT VIEW
