For Floor Type < AGU9/ 12/ 15RLF >
Use the air direction adjustments within the ranges shown above.
The vertical airflow direction is set automatically as shown,
in accordance with the type of operation selected.
Cooling / Dry / Fan mode
Horizontal flow
Heating mode
Downward flow
When the temperature of the air being blown out is low at the start of heating operation or during
defrosting, the airflow direction temporarily becomes
䐟㻌
to prevent cold air being blown onto the body.
During Monitor operation in AUTO CHANGEOVER mode, the airflow direction automatically
becomes
䐟
, and it cannot be adjusted.
When the swing signal is received from the remote controller, the vertical louver starts to swing .
When the indoor fan is either at S-Lo or Stop mode, the swinging operation is interrrupted
and it stops at either upper end or bottom end.

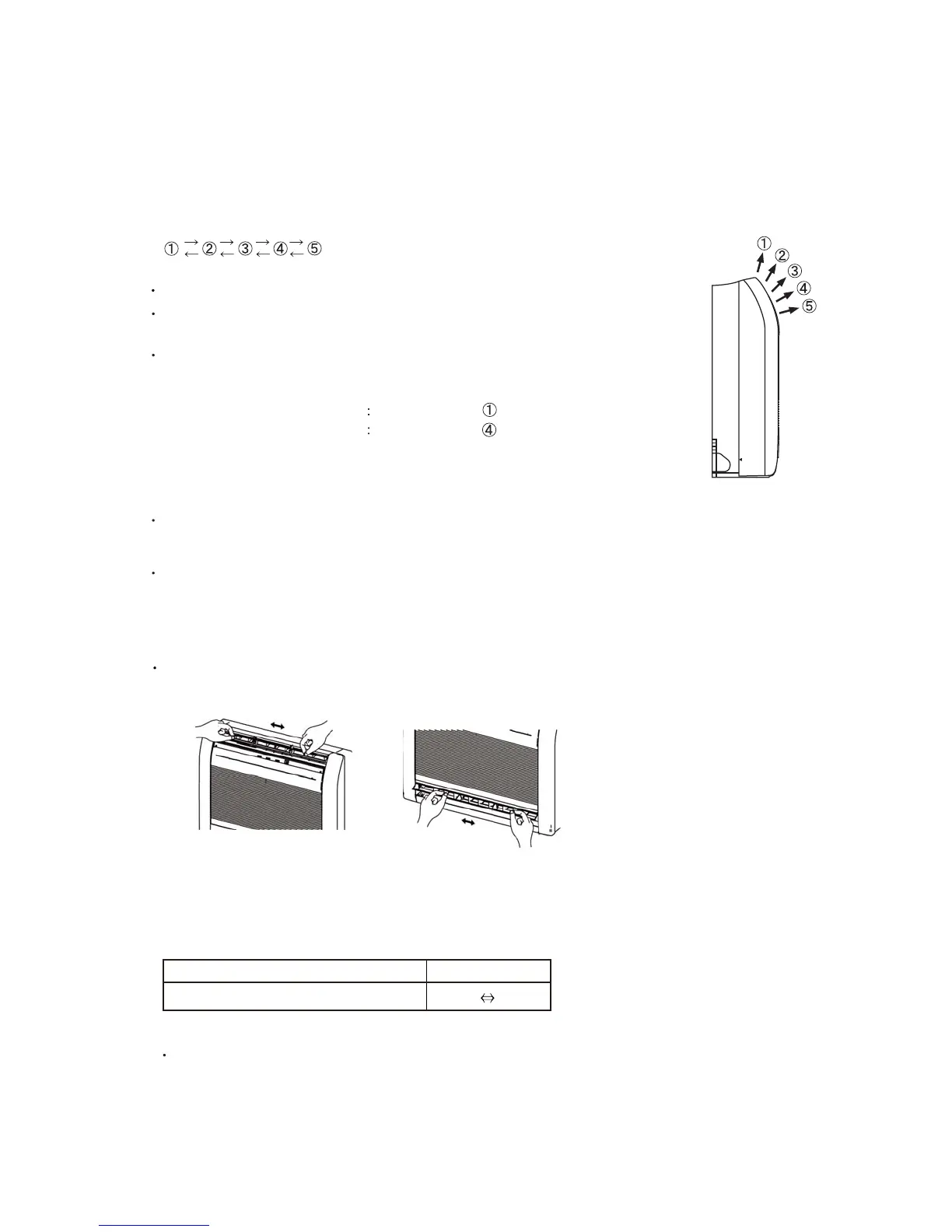

( Fig. 9 : Air direction range )
( Fig. 10 : Air direction range )
3. SWING OPERATION
Move the Right-Left louvers to adjust airfow in the direction you prefer.
2. ADJUST THE RIGHT-LEFT LOUVERS
To select Vertical Airflow Swing Operation
To select Horizontal Airflow Swing Operation
(No function)
ձ
( Table 6 : Swinging range )
Cooling / Dry / Heating / Fan mode
RangeThe type of operation
յ
1. VERTICAL LOUVER CONTROL
Each time the button is pressed, the air direction range will change as follow :
(Function Range)
The Remote Controller's display does not change.
