OUTDOOR UNIT AOU30-36CLX1 OUTDOOR UNIT AOU30-36CLX1

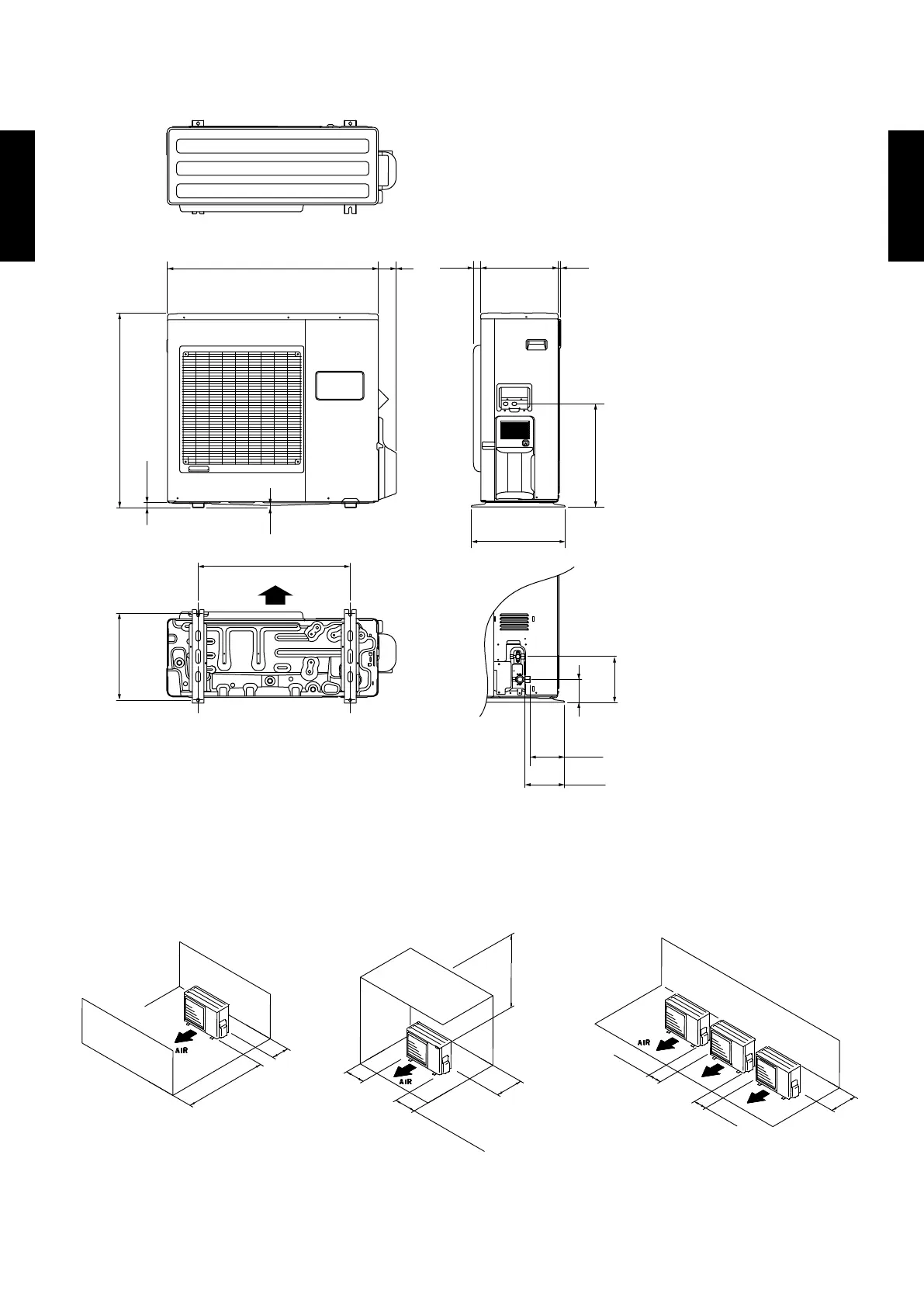

DIMENSIONS2.
MODEL

: AOU30CLX1, AOU36CLX1
Unit : in.(mm)
INSTALLATION PLACE

23-5/8 (600)
or more
9-27/32 (250)
or more
9-27/32 (250)
or more
11-13/16 (300)
or more
23-5/8 (600) or more
3-15/16 (100)
or more
11-13/16 (300)
or more
3-15/16 (100)
or more
9-27/32 (250) or more
(Service space)
When there are obstacles at the
back or front sides.
When there are obstacles at the
back, side(s), and top.
When there are obstacles at the
back, side with the installation of
more than one unit.
Top view
Front view
Side view
Bottom view
3(77)
35-3/8 (900)
32-3/4 (830)
17-3/8 (440)
7/8 (21)
15-3/4 (400)
13 (330)
7-3/4 (196)
5-3/4 (147)
6-3/4 (170)
14-5/8 (370)
25-5/8 (650)
Air Flow
1-1/4
(31)
1/2
(12)
3-7/8 (99)
3/8 (9)
