- (01 - 04) -
WALL MOUNTED TYPE
ASU30-36CLX1
WALL MOUNTED TYPE
ASU30-36CLX1

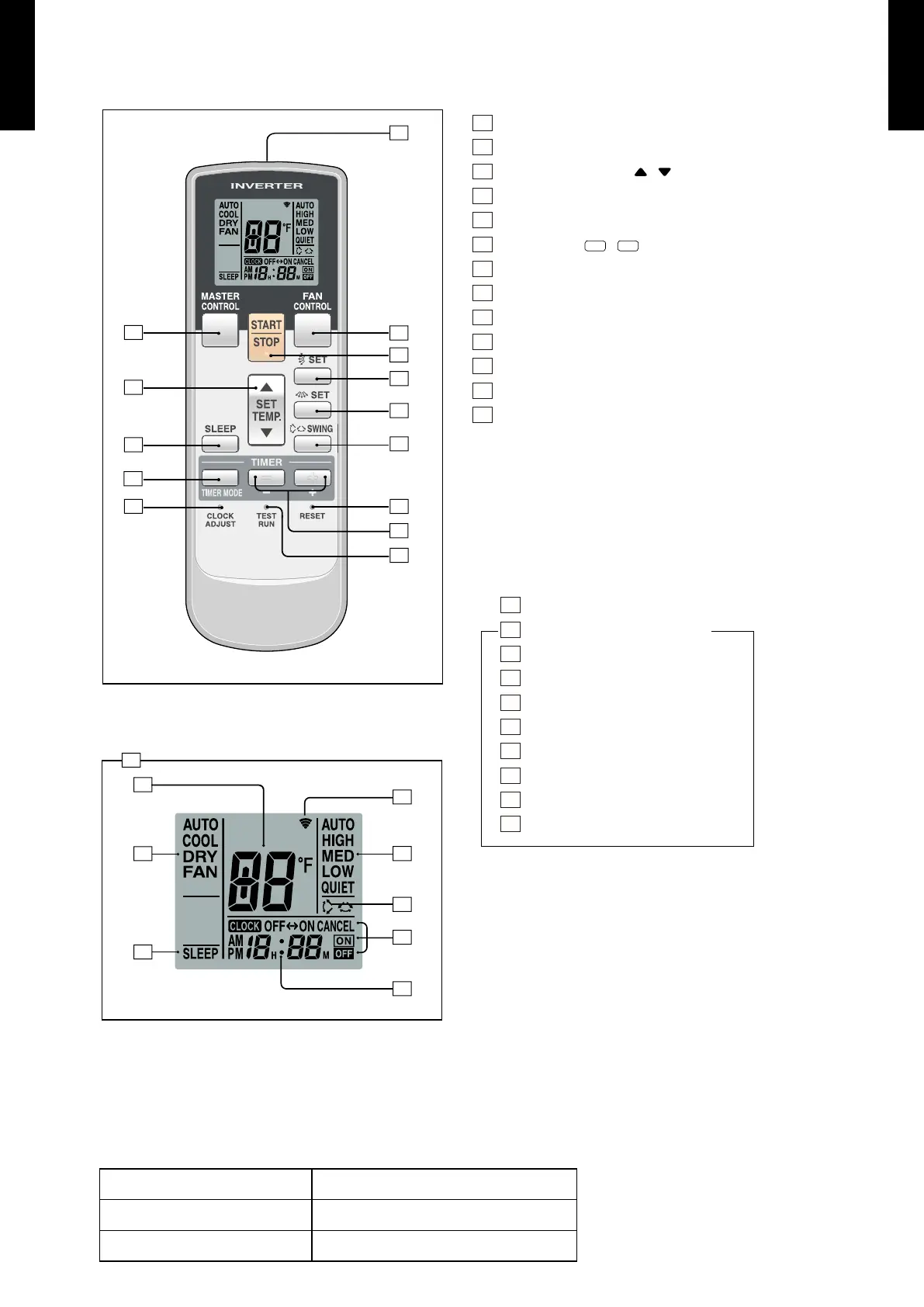

Display panel
To facilitate explanation, the accompanying
illustration has been drawn to show all possible
indicators; in actual operation, however,
the display will only show those indicators
appropriate to the current operation.
SPECIFICATION
SIZE [ H x W x D ]
in. (mm) 6-11/16 x 2-7/32 x 3/4 (170 x 56 x 19)
WEIGHT [ w/o batteries ] oz. (g) 3 (85)
ACCESSORY Holder
1
SLEEP button
2
MASTER CONTROL button
3
SET TEMP. button ( / )
4
Signal transmitter
5
TIMER MODE button
6
TIMER SET (
/
) button
7
FAN CONTROL button
8
START/STOP button
9
SET button (Vertical)
10
SET button (Horizontal)
11
SWING button
12
RESET button
13
TEST RUN button
• This button is used when installing the air conditioner, and
should not be used under normal conditions, as it will cause the
indoor unit’s thermostat function to operate incorrectly.
• If this button is pressed during normal operation, the indoor
unit will switch to test operation mode, and the Indoor Unit’s
OPERATION Indicator Lamp and TIMER Indicator Lamp will
begin to ash simultaneously.
• To stop the test operation mode, press the START/STOP button
to stop the air conditioner.
14
CLOCK ADJUST button
15
Remote controller display
16
Transmit indicator
17
Clock display
18
Operating mode display
19
Timer mode display
20
Fan speed display
21
Temperature set display
22
Sleep display
23
Swing display
Functions will be different due to type of indoor unit.
For details, please see operation manual.
FUNCTIONS
To Next Page
