WALL MOUNTED TYPE ASU9-12RLF1 WALL MOUNTED TYPE ASU9-12RLF1

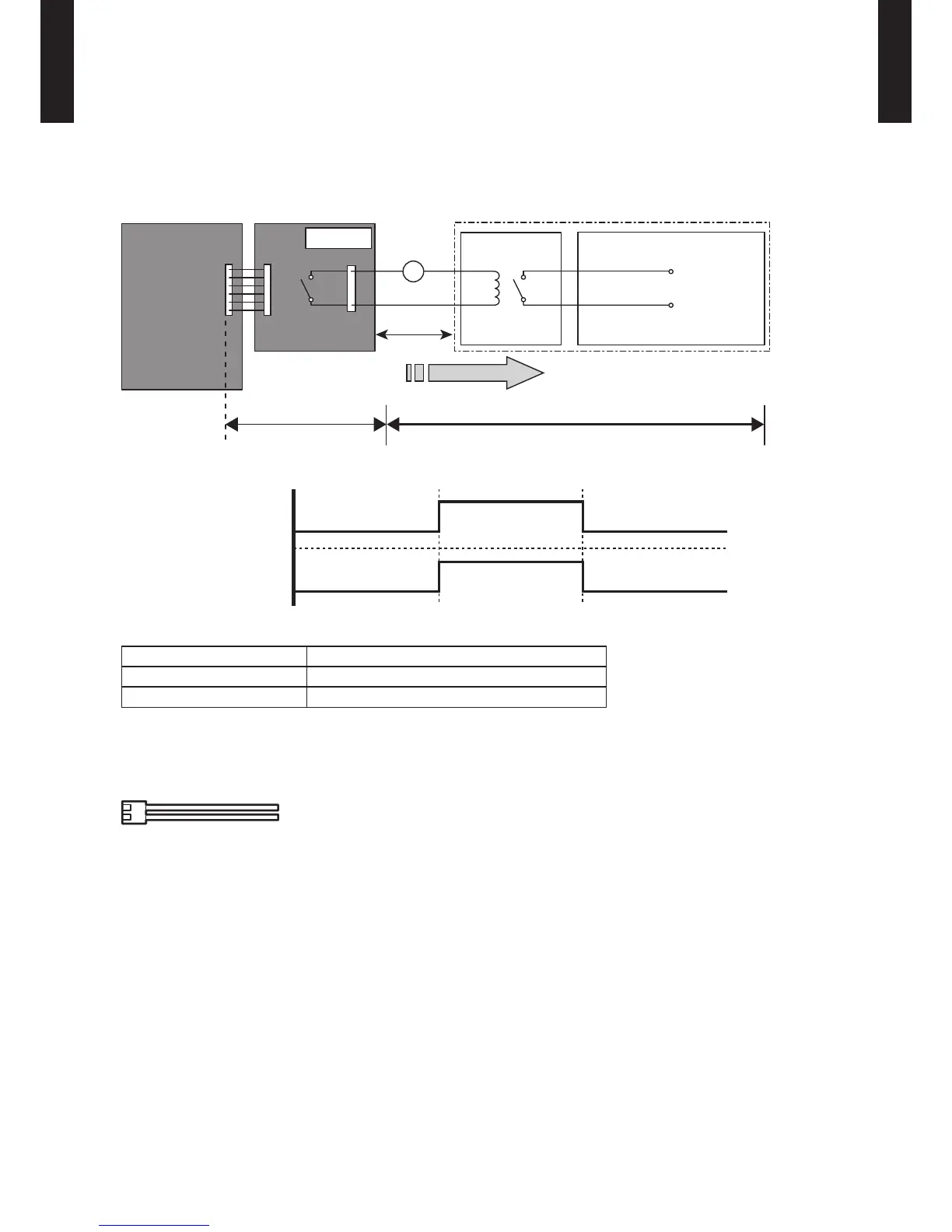

ERROR STATUS OUTPUT

An air conditioner error status signal can be output.
Circuit diagram example
z
*: Make the distance from the PC board to the connected unit within 33ft. (10m)
Relay spec.: Max. DC 24 V, 10 mA to less than 500 mA.
Parts (Optional)
z
Parts name
Model name
External connect kit UTY-XWZX Z5
Communication kit UTY-XCBXZ2
* For operating the EXTERNAL function, the wall mounted type requires the communication kit in addition to the wire
(UT Y-XWZX Z5).
Wire (External output) : UTY-XWZXZ5
Ex.)Display
Indoor unit
control PC board Communication kit Connected unit
Ex.)Relay unit
1
2
Signal
Relay
power
supply
V
Connector
*33ft.
(10m)
24V DC
Optional parts Field supply
ON
OFF
Error
Normal
Error status
Output signal
