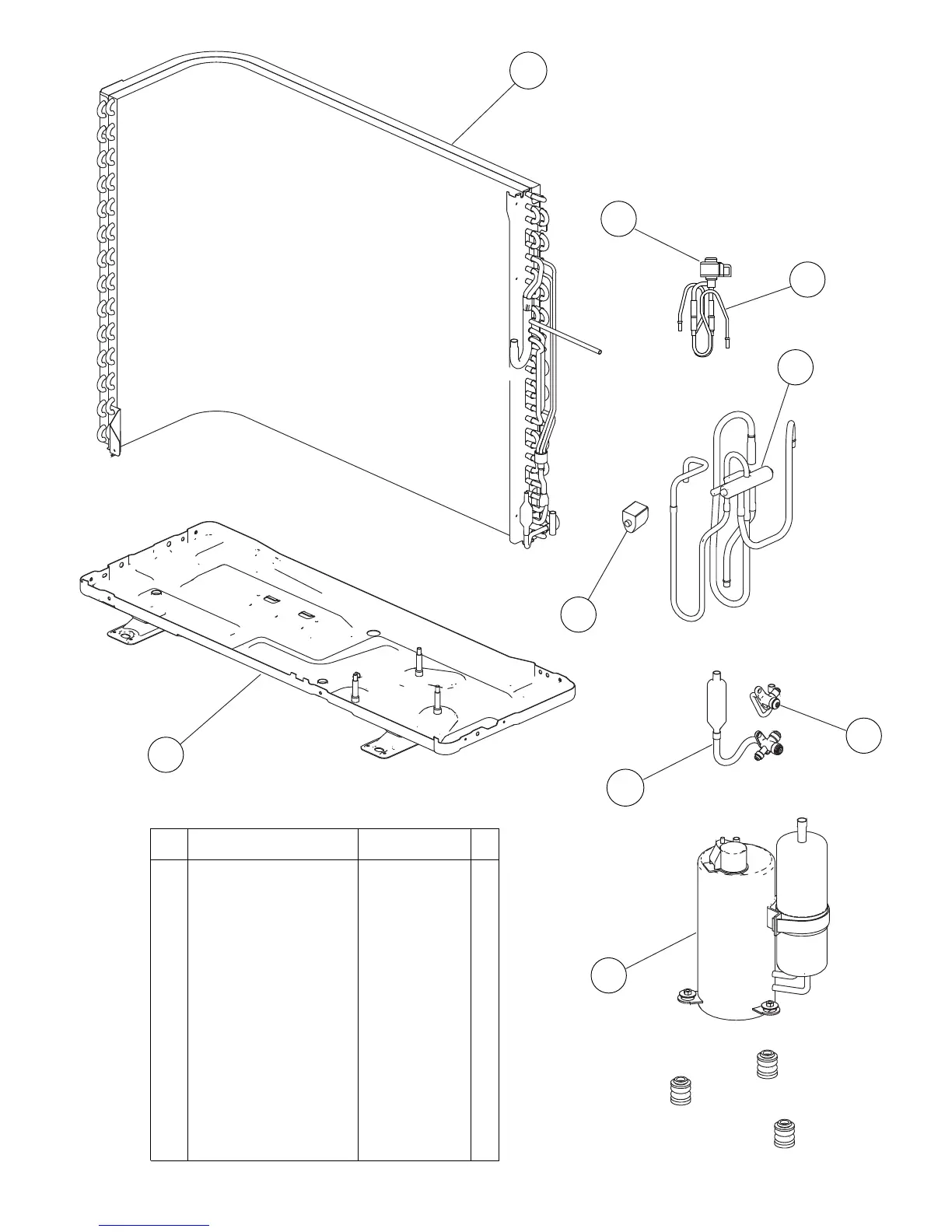

OUTDOOR UNIT
2011.12.28 19
23 Compressor Assy 9317117005
25 3-way Valve Sub Assy 9317109000
28 Pulse Motor Valve Assy 9332368000
4-way Valve Assy 9317110020
27 Solenoid 9970110047
22 Condenser Total Assy 9317089135
29 Expansion Valve Coil 9970095030
26
24 2-way Valve Assy 9332371000
21 Base Assy 9316885066
Ref. Description Part number
21
23
22
24
28
25
29
26
27
