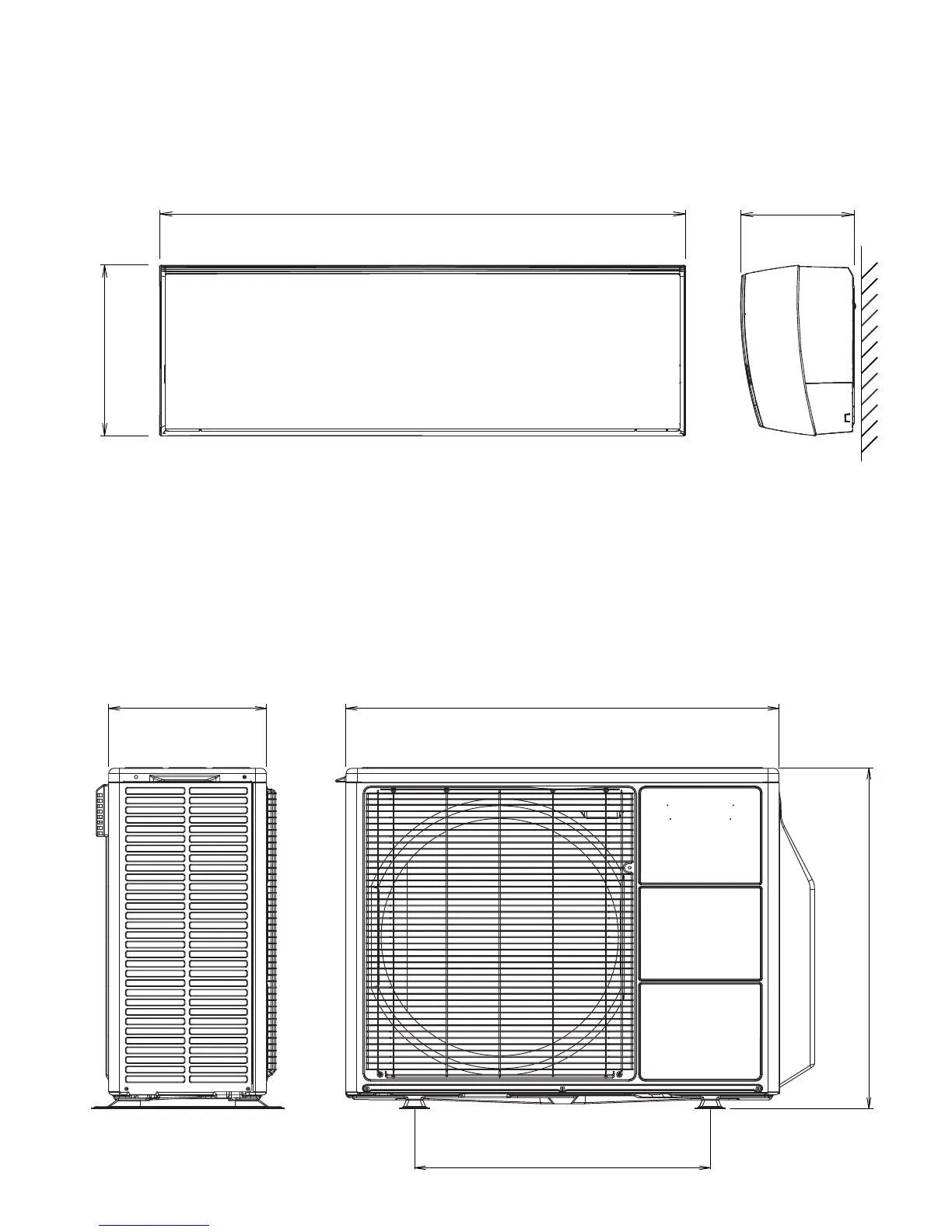

DIMENSIONS
unit : inch (mm)
11-3/32 (282)
7-9/32 (185)
34-1/4 (870)
2011.12.28 2
INDOOR UNIT
OUTDOOR UNIT
Drain pipe diameter
16.2 mm
Liquid pipe diameter : 1/4 inch (6.35 mm)
Gas pipe diameter : 1/2 inch (9.52 mm)
25/32
(20)
31-3/32 (790)25/32 (20)
24-13/32 (620)
2-7/16
(62)
11-13/32 (290) 31-3/32 (790)
21-1/4 (540)
24-13/32 (620)
