WALL MOUNTED TYPE ASU9-15RLS3 WALL MOUNTED TYPE ASU9-15RLS3

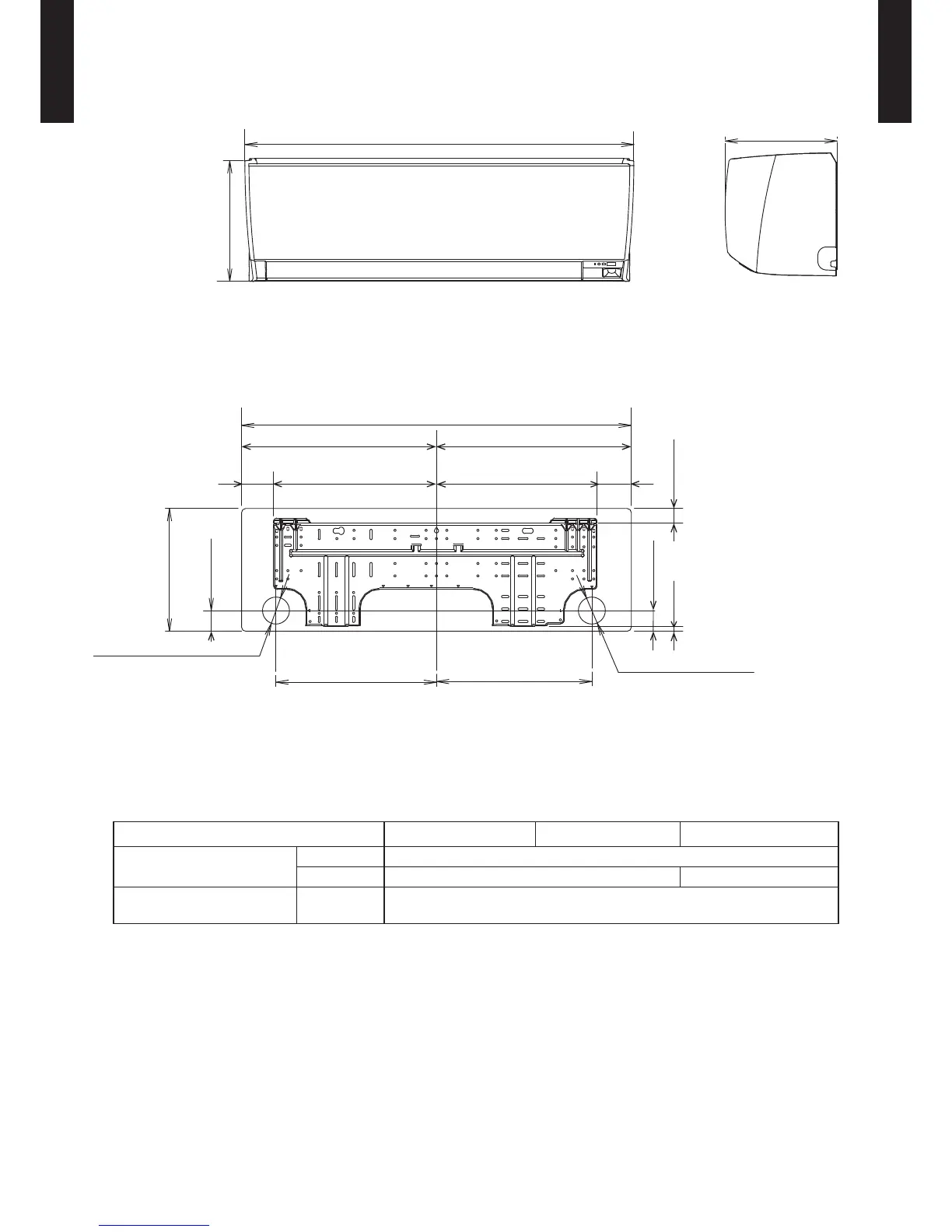

DIMENSIONS4.
MODEL

: ASU9RLS3, ASU12RLS3, ASU15RLS3
Unit : in. (mm)
ASU9RLS3 ASU12RLS3 ASU15RLS3
Refrigerant pipe are
connection
Liquid Ø 1/4 in. (Ø 6.35 mm)
Gas Ø 3/8 in. (Ø 9.52 mm) Ø 1/2 in. (Ø 12.7 mm)
Drain hose connection Drain hose
(Ø 9/16 in. (I.D.), Ø 5/8 to Ø 11/16 in. (O.D.)
[Ø 13.8 mm (I.D.), Ø 15.8 to 16.7 mm (O.D.)]
14-3/4(375)
for pipe inlet Ø2-9/16(65)
for pipe inlet Ø2-9/16(65)
15-1/4(387)
18-1/2(470) 18-1/2(470)
10-5/8(270)
1-11/16(43)
(11-5/8(295))
11-5/8(295)
37(940)
37(940)
15-1/4(387)
3-1/4
(83)
3-1/16
(77)
15-7/16(393)
1-9/16(40)3/8(9)
1-11/16(43)
