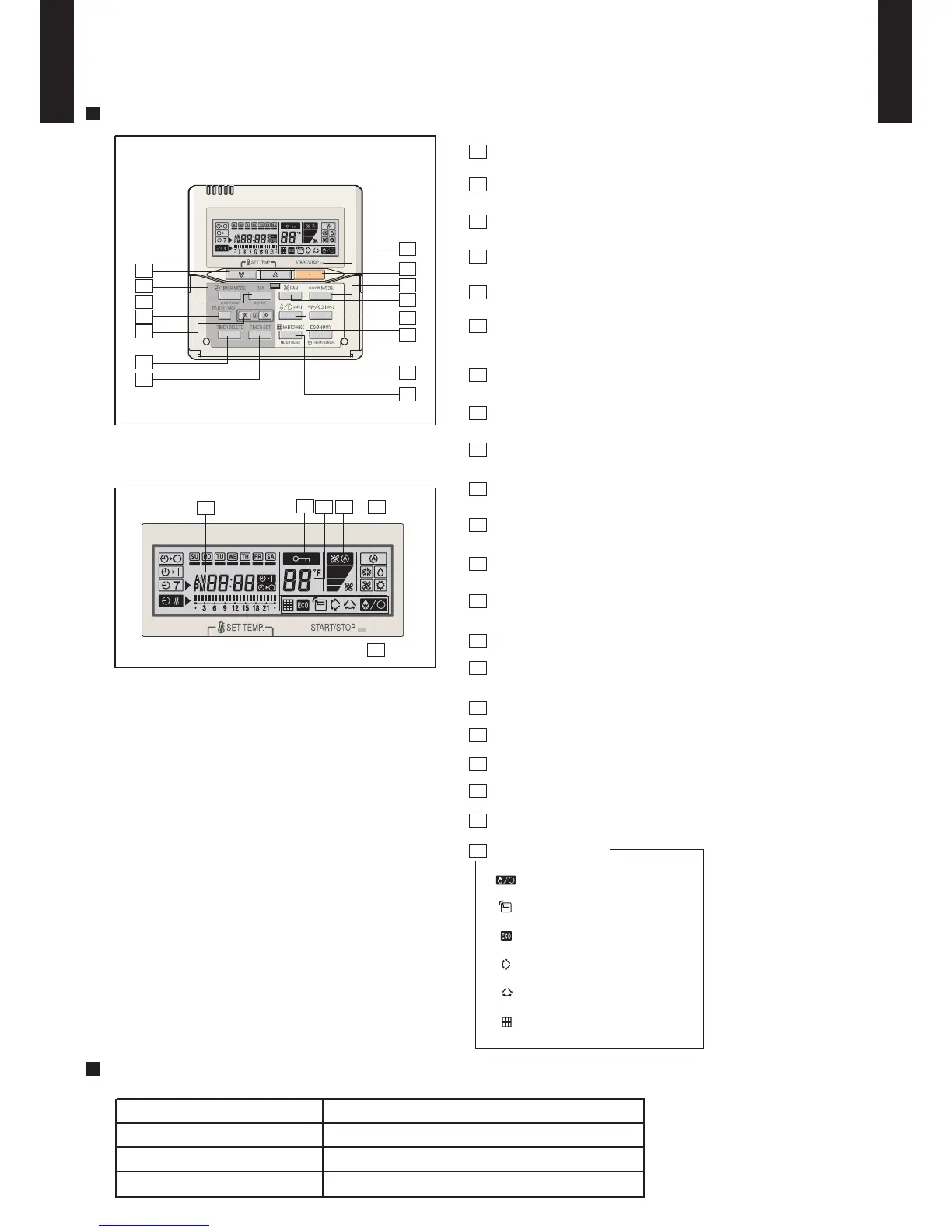

MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE
Display panel
15
11
10
9
8
2
1
3
5
14
4
12
13
6
7
17
16
18
19
20
21
FUNCTIONS
Defrost display
Thermo sensor display
Economy display
Vertical swing display
Horizontal swing display*
Filter display
1
Pressed to start and stop operation.
13
Horizontal airflow direction and swing button*
Push for two seconds to change the swing mode.
5
Economy button
Turns the economy efficient mode on and off.
8
Set back button
Pressed to select the set back timer.
14
Filter button
12
Vertical airflow direction and swing button
Push for two seconds to change the swing mode.
9
Set time button
Pressed to set time.
17
Operation mode display
7
Day (DAY OFF) button
Temporarily cancels of one day timer.
6
Timer mode (CLOCK ADJUST) button
Selects the timer mode (OFF TIMER, ON TIMER, WEEKLY TIMER).
Set the current time.
10
Delete button
The schedule of a weekly timer is deleted.
Master control button
Selects the operating mode(AUTO, HEAT, FAN, COOL, DRY).
3
4
Fan control button
Selects the fan speed (AUTO, QUIET, LOW, MED, HIGH).
18
Fan speed display
16
Timer and clock display
Operation lamp
Lights during operation and when the timer is on.
15
20
Temperature display
21
Function display
19
Operation lock display
Set temperature button
Selects the setting temperature.
2
11
Set button
Sets the date, hour, minute and on-off time.
*These functions are not available.
SPECIFICATION
SIZE [H x W x D in. (mm)] 4-23/32 x 4-23/32 x 43/64 (120 x 120 x 17)
WEIGHT oz. ( g ) 5-5/8 (160)
CABLE LENGTH ft. ( m )
POWER ( V )
33 (10)
12
START/STOP button

Fujitsu ASU9RMLQ Specifications

General

Brand	Fujitsu
Model	ASU9RMLQ
Category	Air Conditioner
Language	English
