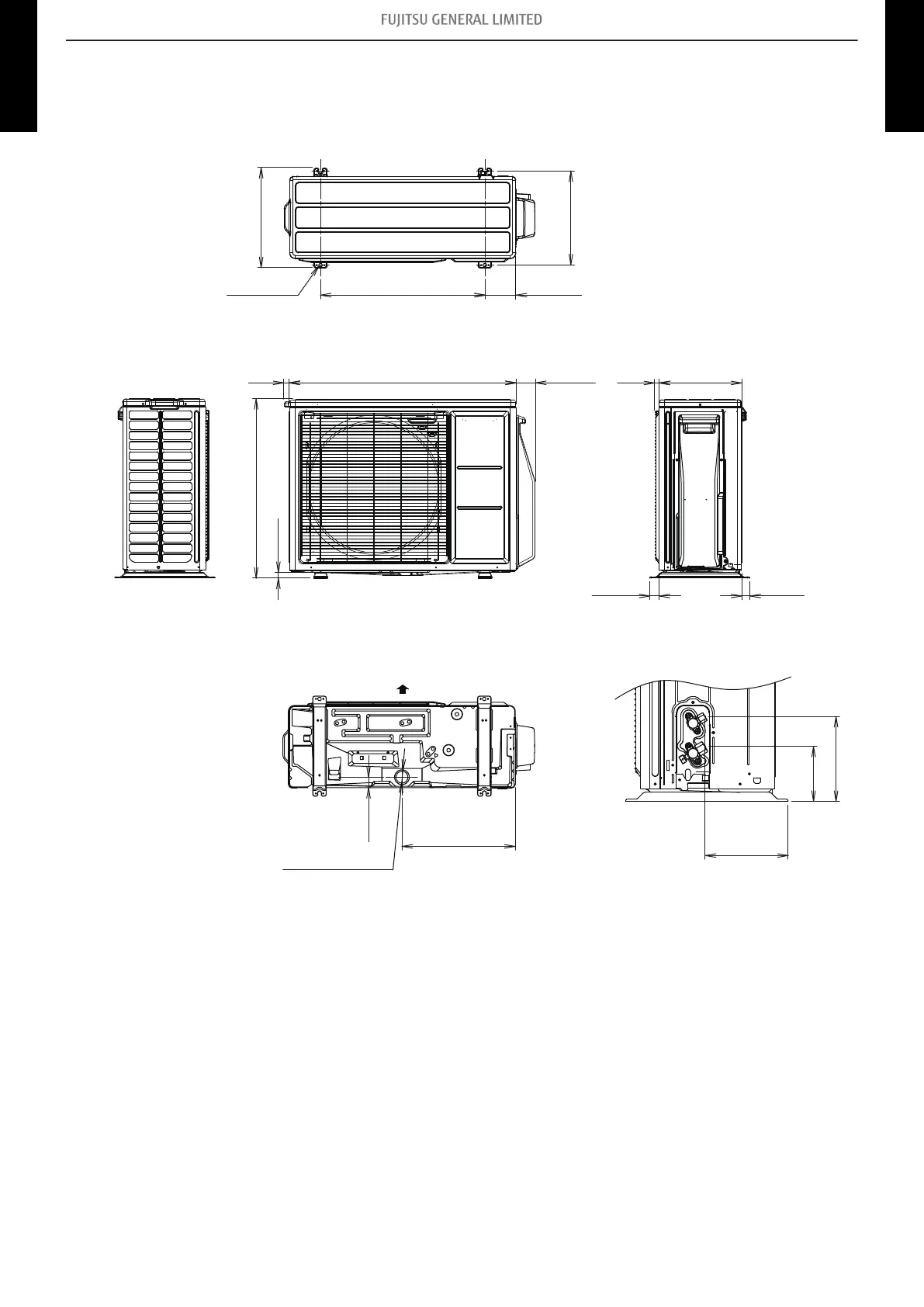

2-2. Outdoor unit
¢
Models: AOUH18LPAS1 and AOUH24LPAS1
Side viewSide view
Front view
Top view
22-13/16 (580)
31-7/16 (799)3/4 (19) 2-11/16 (68) 1/2 (13) 11-7/16 (290)
1-5/16 (33) 1-3/16 (30)
4-5/16 (109)
13-7/8 (353)
24-7/8 (632)
13/16 (20)
13 (330)
Pitch of bolts for installation
Pitch of bolts for installation
4-
M1 0 hole
Unit: in (mm)
Side view (Valve part)
4-3/4 (120)
4-1/4 (184)
7-1/16 (180)
Bottom view
Airflow
Drain port Ø1-5/8 (42)
1-7/16 (37)
15-11/16 (399)
2-2. Outdoor unit - (01-6) - 2. Dimensions
