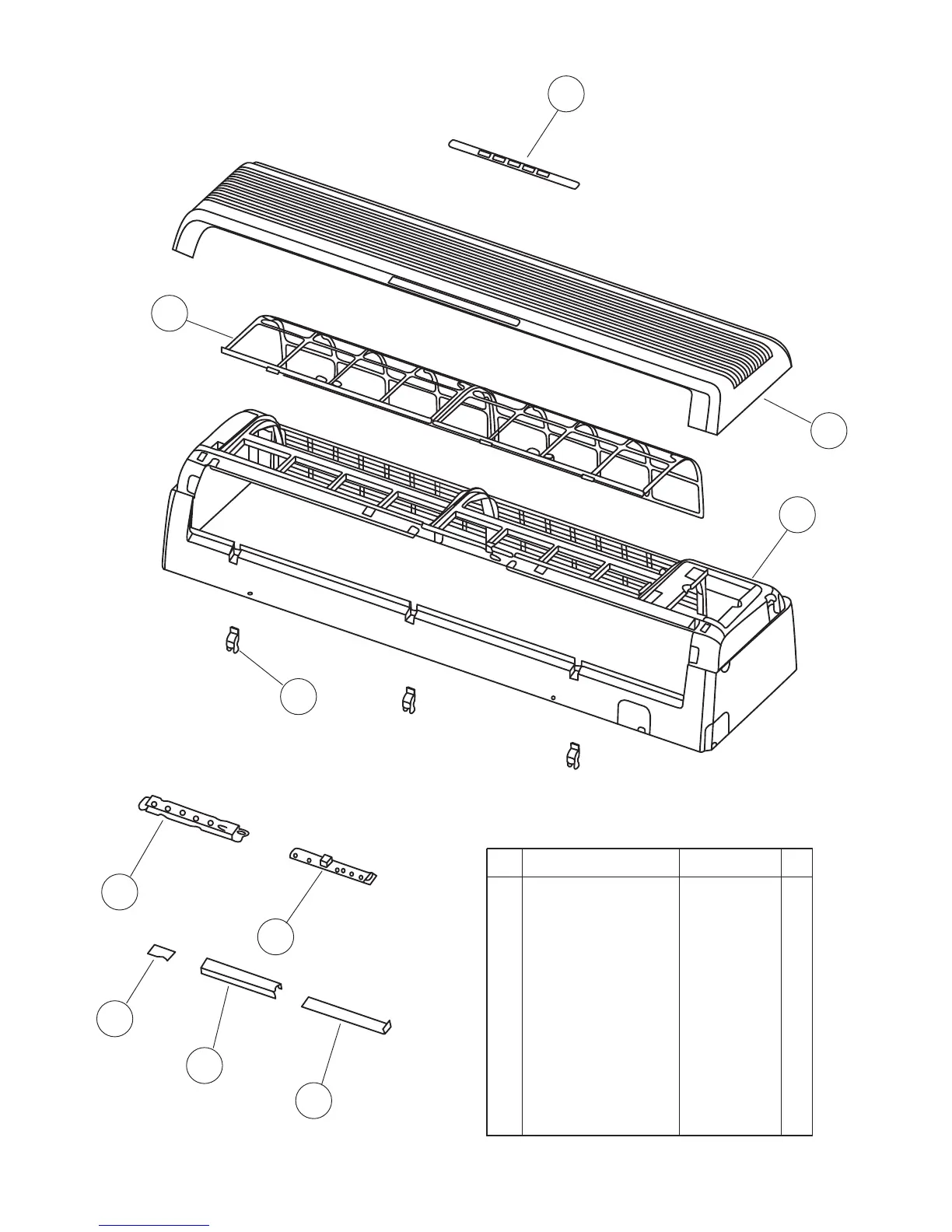

INDOOR UNIT
Front Panel
PA R T S
2008.05.28 14
1
3
4
6
5
8
7
9
11
10
1 Display F 9368757045
5 Front Panel
9368540012
-- Air Clean Filter Assy 9375372019
4 Air Filter
9373613015
7 Indicator PCB Assy
9705801028
6 Screw Cover
9368576011
8 Display Cover
9368564001
3 Intake Grill Assy
9369214066
9 Cover Display
9369264016
10 Cover Display B
9369594014
11 Cover Display C
9369683015
Ref. Description
Part number
