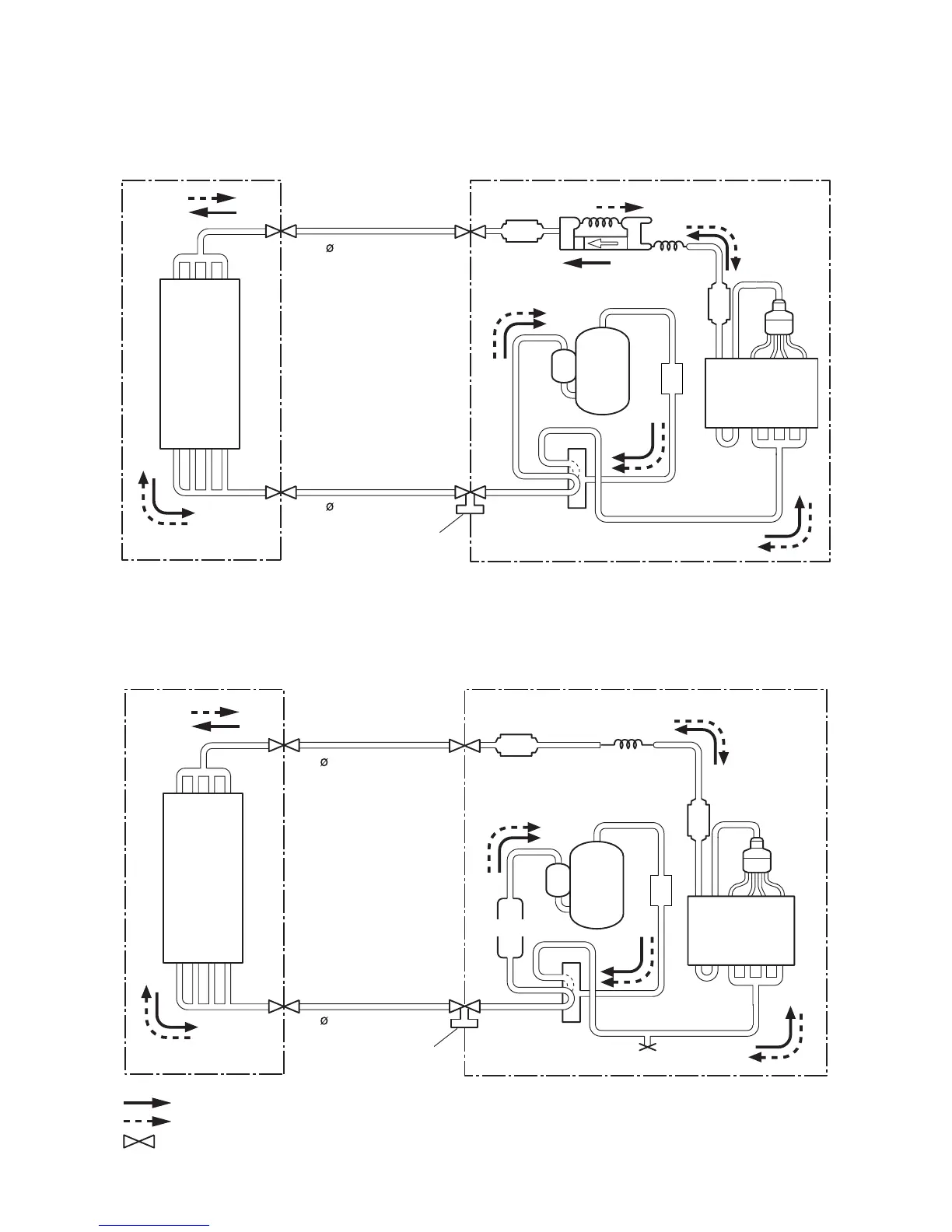

Fujitsu ASY18UBBJ - ASY18 U;AOY18 U Refrigerant Diagram; ASY24 U;AOY24 U Refrigerant Diagram

ASY18UBBJ / AOY18UNBKL
Models : ASY18UBAJ / AOY18UNAKL
ASY18UBBN / AOY18UNBNL
ASY24UBBN / AOY24UNBNL
Models : ASY24UBBJ / AOY24UNBKL
Evaporator
Distributor
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
Cooling
Heating
: Flare coupling
INDOOR UNIT
Strainer
Strainer
Charging valve
4-Way
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
Accumulator
Evaporator
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
6.35mm(1/4")
INDOOR UNIT
Strainer
Strainer
Charging valve
4-Way
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
2005.01.17 5
Distributor
Muffler
Muffler
