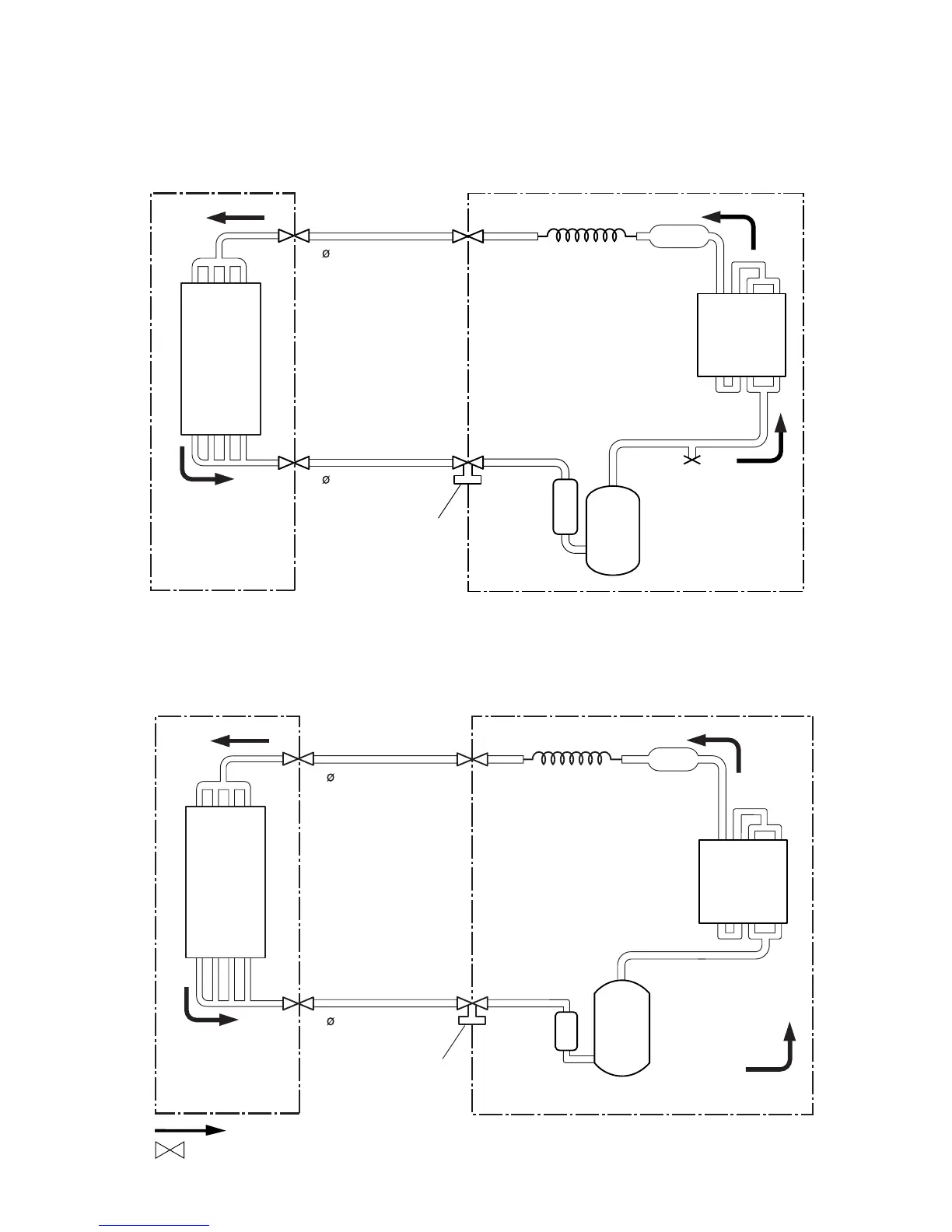

REFRIGERANT SYSTEM DIAGRAM
ASY18FBBJ / AOY18FNBK
Models : ASY18FBAJ / AOY18FNAK
ASY18FBBN / AOY18FNBN
Cooling
: Flare coupling
Refrigerant pipe
15.88 mm (5/8")
Refrigerant pipe
6.35 mm (1/4")
Charging valve
INDOOR UNIT
Evaporator
Capillary tube
Compressor
Strainer
OUTDOOR UNIT
Condenser
ASY24FBBN / AOY24FNBN
Models : ASY24FBBJ / AOY24FNBK
Strainer
Refrigerant pipe
15.88 mm (5/8")
Refrigerant pipe
9.52 mm (3/8")
Capillary tube
Charging valve
Compressor
OUTDOOR UNIT
INDOOR UNIT
Evaporator
Condenser
2005.01.17 4
