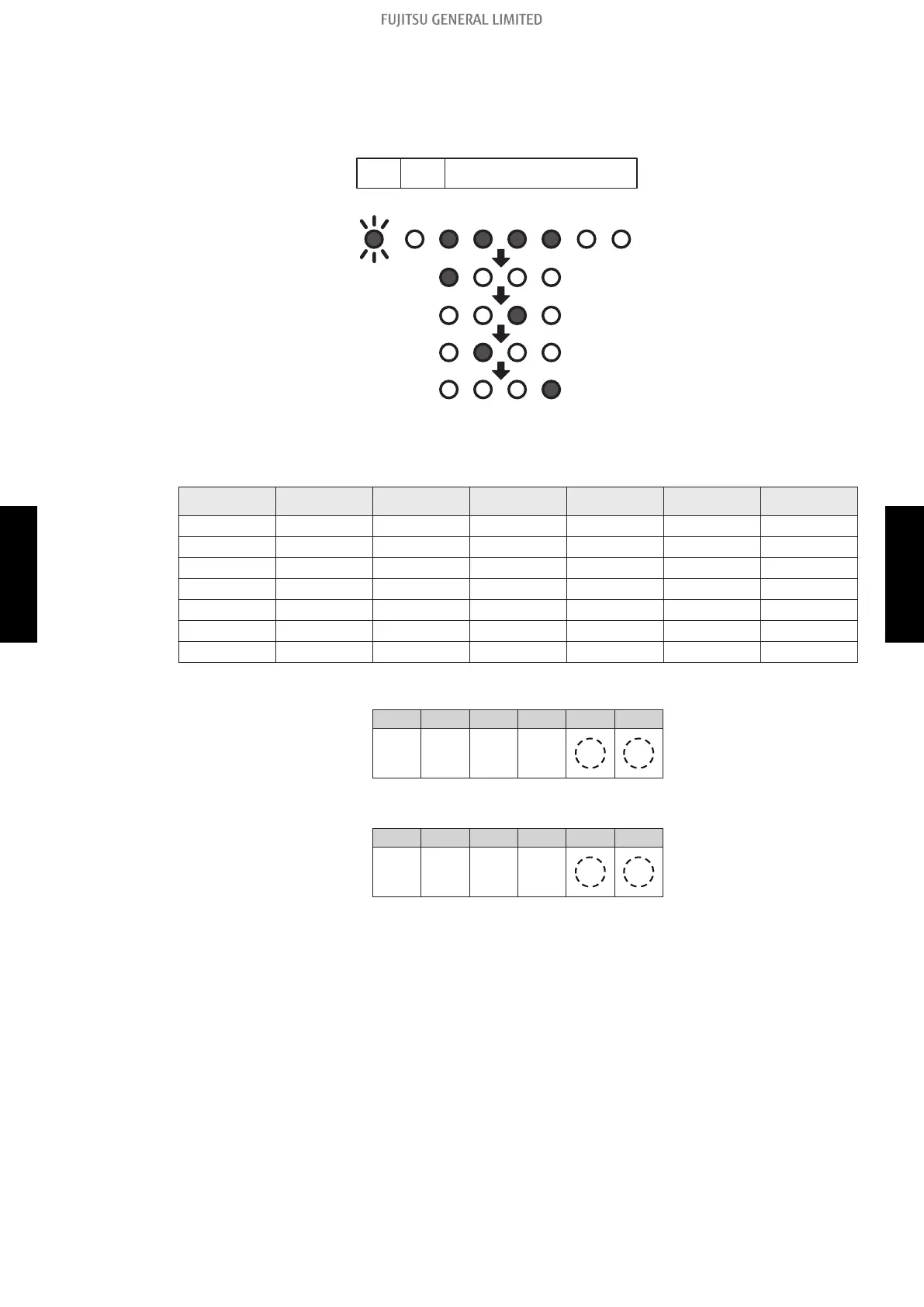

[How to record the contents]
• Fill the displayed results according to the following example.
Example: When piping A to D is connected but the wires for B and C are connected in reverse.
<Displayed results>
The LEDs will light up in 7 second intervals in the following order.
MONITOR
POWER
ERROR
/MODE
(
GRN
) (
RED
)
A B C D E F
(2-blink)
(7 s)
(7 s)
(7 s)
(7 s)
<Example of result table>
a. Write a ● where the LEDs light up in the order that they light up.
A B C D E F
1 ● ● ● ● ◌ ◌
2 ● ◌ ◌ ◌ ◌ ◌
3 ◌ ◌ ● ◌ ◌ ◌
4 ◌ ● ◌ ◌ ◌ ◌
5 ◌ ◌ ◌ ● ◌ ◌
6 ◌ ◌ ◌ ◌ ◌ ◌
7 ◌ ◌ ◌ ◌ ◌ ◌
b. Based on the results of step (a), record as follows.
• Trace the dotted circle with a pen if multiple places light up.
• Write the order from A to D in which the LEDs lit up inside the circle.
3-1. Check run - (05-60) - 3. Check and test
